PROFESSIONAL SERIES LIFTING SYSTEM
INSTRUCTION MANUAL
Scan for setup video!

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zen Space Desks PROFESSIONAL Series

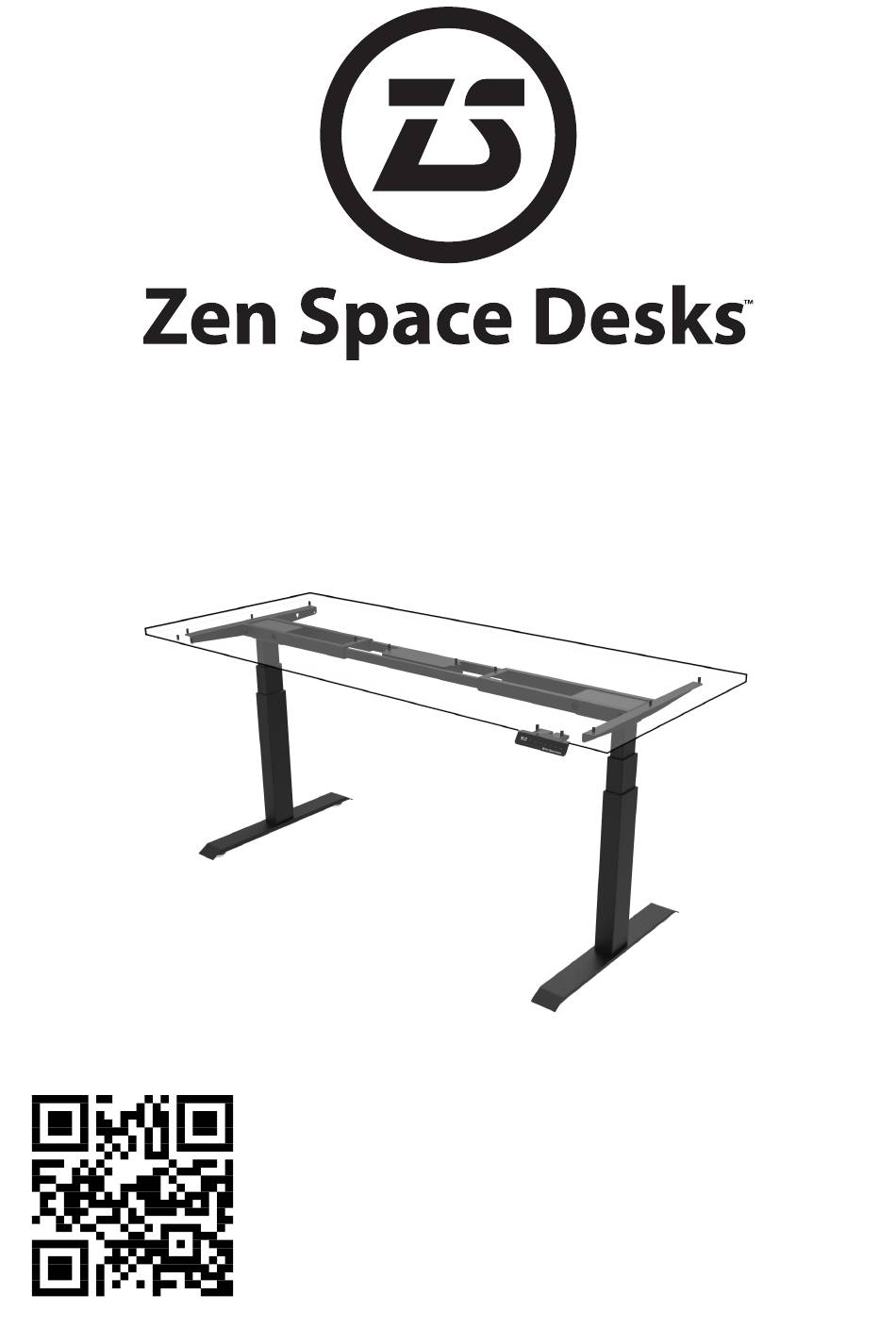

  • Page 1 PROFESSIONAL SERIES LIFTING SYSTEM INSTRUCTION MANUAL Scan for setup video!
  • Page 2 This user manual provides instructions for the Zen Space Desks Professional Series lifting system, our most popular dual motor dual leg desk. This can also be used for use with our 3 leg desk Executive Series system.

  • Page 3: Table Of Contents

    CONTENTS CONTENTS SAFETY INSTRUCTIONS GETTING READY PARTS LIST COMPONENTS DIAGRAM ASSEMBLY...

  • Page 4: Safety Instructions

    The safety of Zen Space Desks clients is our primary concern. To ensure safe operation, ensure the following is complied with: Read and understand this instruction manual before attempting to install or operate this product.
  • Page 5 SAFETY INSTRUCTIONS Keep all electrical components away from liquids. • Do not sit or stand on the desk or desk frame. • Do not crawl or lie under the desk frame once assembled. • Do not place any objects taller than 50cm underneath the desk. Do not open any of the components - the Legs, Control Box, or Controller.
  • Page 6 SAFETY INSTRUCTIONS USE AND LIABILITY This electric height adjustable workstation has electric motors and is designed for use in dry work areas only. This desk is height adjustable so that it can be positioned at the most ergonomically suitable height for the user. Any other use is at the users risk. Under no circumstances does the manufacturer accept warranty claims or liability claims for damages caused from improper use or handing of the desk frame.

  • Page 7: Getting Ready

    Carefully remove the packaging from your new Zen Space Desk and inspect all components for shipping damage. Immediately report any damage to Zen Space Desks It is recommended to leave the desktop in its box until its needed to avoid damaging it.

  • Page 8: Parts List

    PARTS LIST B. FEET + LEVELLING C. CROSSBAR ENDS D. CENTER RAILS A. LEGS STUDS QTY: 2 QTY: 2,4 QTY: 2 QTY: 2 F. CONTROL BOX G. CONTROLLER E. SIDE BRACKETS H. POWER CORD QTY: 2 QTY: 1 QTY: 1 QTY: 1 K.

  • Page 9: Components Diagram

    SCREW DIAGRAM...

  • Page 10: Assembly

    ASSEMBLY SETUP INSTRUCTIONS ZEN STAND UP DESK Using the 3mm hex key included with the parts, slightly loosen the 8 grub screws located on the bottom of both crossbar ends. Fully separate the ends. Inside you will find the crossbar rails (D). Position one of the Crossbar Ends on its side.
  • Page 11 ASSEMBLY SETUP INSTRUCTIONS ZEN STAND UP DESK Using the supplied 4mm Allan Wrench included, insert four M6x14 Machine Screws through the holes in each Crossbar End going into the Leg and rotate each screw just a few turns. Do not fully tighten until later. Flip the assembly over to gain access to all four M6x14 Machine Screws.
  • Page 12 ASSEMBLY SETUP INSTRUCTIONS PROFESSIONAL SERIES LIFTING SYSTEM For each assembly, attach a foot (B) with four Machine Screws and tighten in a cross pattern. For your convenience the levelling studs (J) have already been attached to the bottom of the feet.
  • Page 13 ASSEMBLY SETUP INSTRUCTIONS PROFESSIONAL SERIES LIFTING SYSTEM With the desktop on the ground top down, place the frame on the desktop and extend to a suitable width. We recommend the below widths for maximum stability on our standard size desktops:...
  • Page 14 ASSEMBLY SETUP INSTRUCTIONS PROFESSIONAL SERIES LIFTING SYSTEM Lock the position of the Crossbar Centre Rails using the eight pre-installed grub screws that were previously loosened using the 3mm hex key. Turn each grubscrew clockwise until it makes contact with the Centre Rails and tighten.
  • Page 15 ASSEMBLY SETUP INSTRUCTIONS PROFESSIONAL SERIES LIFTING SYSTEM (OPTIONAL CABLE MANAGEMENT) Attach the adjustable cable shelf to one Side Bracket, then pull and stretch out the Cable Shelf t o the desired length, attaching it to the other Side Bracket and tighten the thumb screw in the centre.
  • Page 16 ASSEMBLY SETUP INSTRUCTIONS PROFESSIONAL SERIES LIFTING SYSTEM Mount the Control Box underneath of the desk, preferably in between the two Crossbar Rails, allowing at least one of the leg control cables to plug directly into it without the Extension Cable.
  • Page 17 INITIALISING DESK Using two people, carefully turn the desk upright on level floor. Connect the desk to power and turn on. Your Zen Space Desk may require initialising prior to use. If RST is displayed on the controller when you connect to power, simply hold the DOWN button until fully retracted, releasing the button once the height is displayed.
  • Page 18 PROGRAMMING THE SYSTEM PROGRAMMABLE MEMORY Utilise Zen Space Desks memory system to preset up to 4 heights to ensure your desk quickly and precisely returns to your desired height. Programming your heights: 1. Use the UP or DOWN button to move the desk to the your desired height.
  • Page 19 PROGRAMMING THE SYSTEM Setting the LOWER Limit 1. Use the UP or DOWN button to move the desk to the your desired height. 2. Press the M and release. 3. Press the DOWN button and release. 4. Press and hold the M button for about 2 seconds until the LED display reads 000.
  • Page 20 PROGRAMMING THE SYSTEM 3. Within 2 seconds of releasing, press and hold the M button for about 5 seconds until the LED displays and flashes the lowest height setting. Note: If the display returns to RST before the next step you will need to repeat this step. 4.
  • Page 21 PROGRAMMING THE SYSTEM Changing CM to INCHES on the display 1. Press the DOWN button on the Keypad until the desk reaches its lowest position, then release for 2 seconds. 2. Press and hold the 1 button for about 5 seconds while the LED flashes RST and then switches to either: •...
  • Page 22 Desks for any assistance. Zen Space Desks have a duty cycle of 2 minutes on, 18 minutes off. Excess use may cause “HOT” to be displayed on the hand controller. If this is displayed it is important to allow the desk to cool down for 20 minutes before continued use.
  • Page 23 (10) years for all warranted desks and parts. EXCLUSIONS This warranty does not cover and Zen Space Desks shall not be liable for the following: (1) repairs and replacements because of misuse, abuse, negligence, alteration, accident, freight damage, or tampering; (2) products which are not installed, used, and/or properly cleaned as required in the Zen Space Desks “Installation”...
  • Page 24 LIMITED WARRANTY NO AUTHORISATION No person or firm is authorized to create for Zen Space Desks any other obligation or liability in connection with the products. THIS WARRANTY IS ZEN SPACE DESKS ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
