Summary of Contents for DPR Hyper Cub

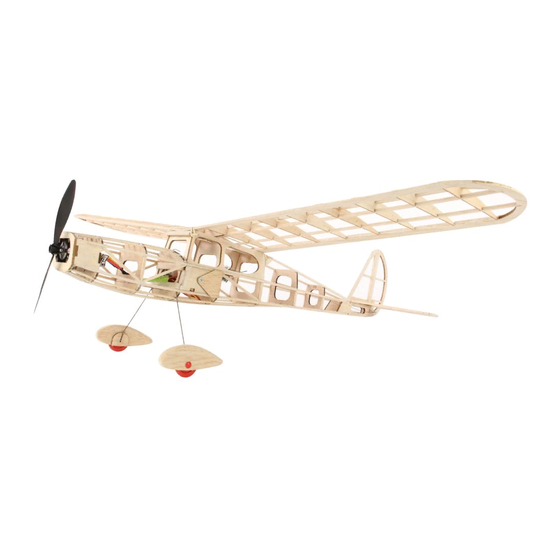

- Page 1 Limited Edition RC version Hyper Cub RC Electric Installation Guide Recommended set up 2 x Hitec HS-35HD Pt No. 2212030 1 x GWS 7x6 slow fly prop Pt No. 4460299 1 x ZTW Mantis 12A ESC Pt No. ZTW2012101 1 x Roxxy 22-16-25 (1800kv) Pt No. 25314946...
- Page 2 Take the wooden motor box components and remove the excess wood ensuring you remove all air ventilation points on the main motor plate. Main motor plate Install the motor back plate to the back of the motor. WARNING - ensure you use the correct bolts so not to damage the motor windings.
- Page 3 Longest Pass the esc cables through the front of the fuselage, the battery plug to the battery bay and the receiver plywood connection to the receiver bay in front of the battery. side Attach the motor box to the front of the fuselage with the two screws and capture nuts supplied.
- Page 4 Connect the Z-bends to the servo horns and position in the centre position as shown. At the other end of the rod, position the control horns so the connection point is over the control surface hinge point. You will need to make a slit in the wood for the control horn to be inserted Before gluing in place terminate the push rod with another Z bend and connect to the horn, then glue horn in place ensuring the control surface and servo`s are all at the neutral position.
