Summary of Contents for MLS DEFENDER SOCCER TABLE

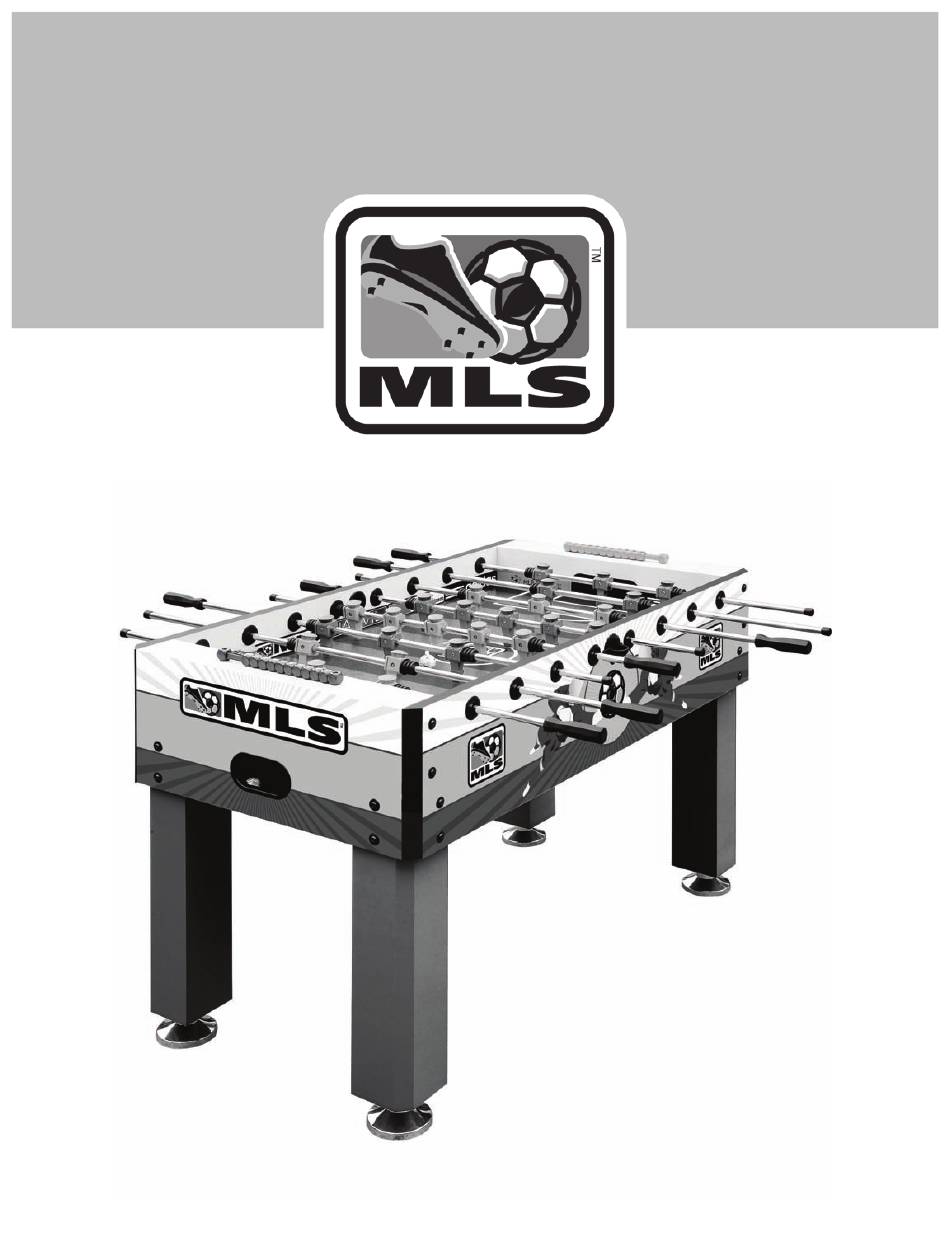

- Page 1 MLS DEFENDER SOCCER TABLE ASSEMBLY INSTRUCTIONS NGD032 NG1032 ...
- Page 2 THANK YOU! Thank you for your purchase of our product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare instance that your product is defective or missing parts, contact Challenger Manufacturing at 800-759-0977 to submit parts requests or warranty claims.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE)
-
Page 4: Assembly Tips
ASSEMBLY TIPS . Find a clean, level surface to begin the assembly of your game table. The table will be partially assembled upside down and then turned over onto its legs. This is a heavy game and turning it over will require at least two strong adults. 2. - Page 5 ASSEMBLY INSTRUCTIONS . Slide PLAYFIELD #2 with field markings facing down into the grooves on SIDE PANELS #9. Note: The table is assembled upside down. 2. Attach one END PANEL #0 to each end of the table with -/2" BOLT #3 and 5/6" FLAT WASHER #4.
- Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 4. Position each PLAYFIELD SUPPORT BRACE # between the SIDE PANELS as shown below. Thread one SUPPORT ROD #29 through SIDE PANEL and each PLAYFIELD SUPPORT BRACE. Secure SUPPORT RODS to both SIDE PANELS with /4" LOCKNUTS #2 and /4" FLAT WASHERS #. 5.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) 7. Before assembling PLAYER RODS, refer to the diagrams below for correct rod ori- entation and player placement. Note: You may choose either color for home or away teams. 8. Begin PLAYER ROD assembly by partially inserting PLAYER ROD into appropriate hole in the SIDE PANEL.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) . Attach one MANUAL SCORER #4 to the top of each END PANEL with -3/6" FLAT SCREW #6. 2. Attach one TWO-PIECE BALL LAUNCHER #25 to each side of the table by insert- ing the cup into the hole on the outside edge of the SIDE PANEL and the launcher into the hole on the inside edge of the SIDE PANEL.
-
Page 9: Care And Use
CONGRATULATIONS! You have now assembled your MLS Soccer Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE . This product is intended for INDOOR use only. -
Page 10: Day Limited Warranty
90-DAY LIMITED WARRANTY This Challenger Manufacturing product is warranted to the original purchaser to be free from defects manship for a period of ninety days from the date of the original retail purchase. in material or work This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.
