- Page 1 5 in 1 Universal Remote Control Instruction Manual LRC5N110...
-
Page 2: Table Of Contents
Contents Unpacking ...............3 Product Overview ...........4 Scope of Application ..........6 Inserting the Battery ..........6 Programming the Device Codes ......6 Code Search ............7 Code Identification ..........8 Learning Function ..........9 Tips on Learning .............9 Programming Buttons by Learning ...... 10 Deleting Learnt Buttons under Selected Mode .............. -
Page 3: Unpacking
Thank You for buying the new Logik 5 in 1 Universal Remote Control. We recommend that you spend some time to read this manual in order to fully understand how to operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 4: Product Overview

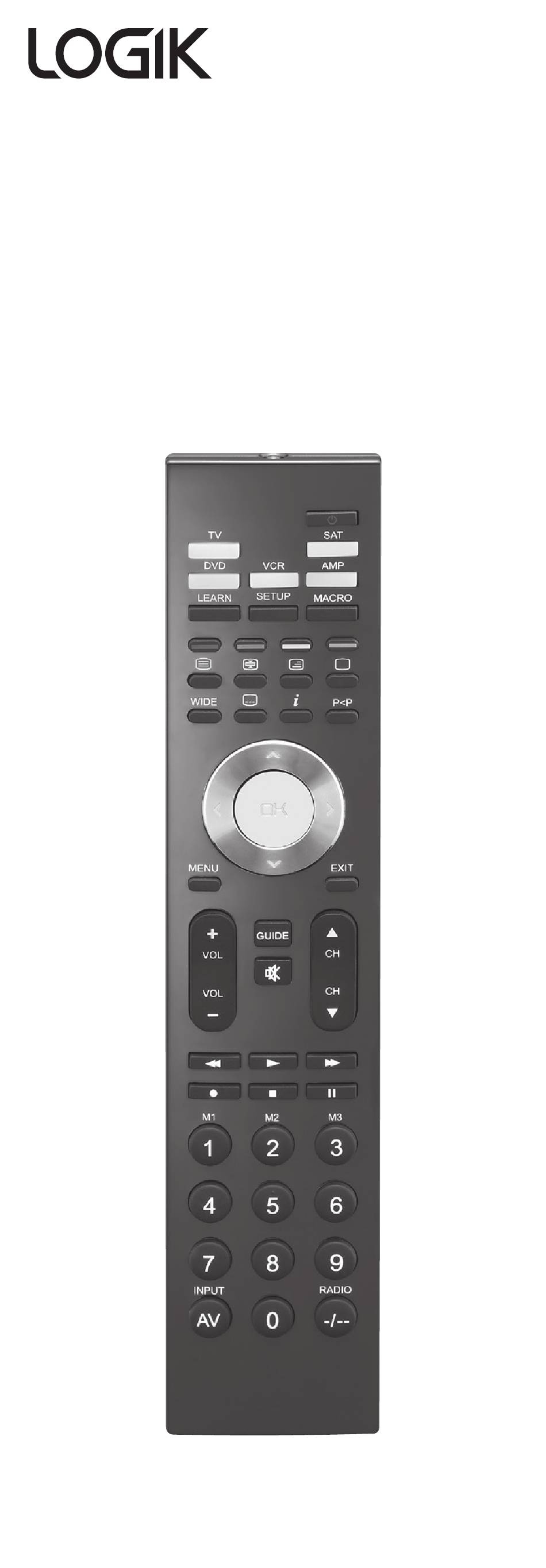

Product Overview GB-4... - Page 5 Switch the device on/off. 2. Mode buttons To select an AV device (TV/SAT/DVD/VCR/AMP). 3. LEARN For learning procedure and turning the backlight on/off 4. MACRO 5. SETUP To program the remote: Device code, macro, … 6. Coloured Buttons (Red / Green / Yellow / Blue) Access the TELETEXT items or programme edit when using Digital TV Channels.
-
Page 6: Scope Of Application
Scope of Application This universal remote control is designed to control 5 devices such as: SAT: Satellite receiver, Cable box, DVBT DVD: DVD player and DVD recorder HDD… VCR: Video Recorder AMP: Amplifier and other audio devices Inserting the Battery 1. -
Page 7: Code Search
3. Press the TV/SAT/DVD/VCR/ AMP button to select the device you wish to control. The LED indicator of the selected mode button will illuminate. 4. Enter the 4-digit code from the code book. The LED indicator will turn off after the last digit has been entered if the code is correct. -
Page 8: Code Identification
4. Point the remote control at the device you wish to control and press the CH button once. The remote control starts the search, sending a code every second. Each time a code is sent, the LED indicator will flash once then illuminate. -
Page 9: Learning Function
4. To find the first digit, press the 0–9 Number button until the LED indicator flashes once then illuminates. The number you pressed is the 1 digit of the code. 5. Repeat the procedure to input the 2 and 4 digits. -
Page 10: Programming Buttons By Learning
• The LEARN, SETUP and MACRO buttons are not able to use learning function. • Experiment first, by learning any desired code and testing to see if it works, then delete all codes (see page 11) and proceed with the actual learning. -
Page 11: Deleting Learnt Buttons Under Selected Mode
5. Press and hold the original remote control button you POWER wish to copy (e.g. the VOL + button) until the LED indicator turns off then illuminates for 2 to 3 seconds. In case of problems, the LED indicator will flash for 3 seconds but A•B MENU EXIT... -
Page 12: Macro Function
3. Press the SETUP button. All learnt command entries are now cleared. Macro Function The MACRO button, in coordination with one of the digit number buttons 1 (M1), 2, (M2) or 3 (M3), allows the programming and storage of up to 3 Macro sequences (automatic “pressing”... -
Page 13: To Activate A Macro
To activate a Macro Press the MACRO button followed (within 20 seconds) by the M1/M2/M3 button you used to memorise the sequence. E.g. If you have followed the example on the previous page, each time you press the MACRO button followed by the M1/M2/M3 button, you will select channel 4, 5, 6 on your TV set) • The macro can store up to 10 press. -
Page 14: Transport Button Control
Transport Button Control If the remote control is controlling in TV or SAT mode, the transport buttons will control a video recorder, DVD player or DVD recorder programmed on the VCR or DVD mode buttons without having to select the VCR or DVD mode buttons first. -
Page 15: Restoring The Volume/Mute Functions
Restoring the Volume/Mute Functions If you have changed the volume/mute functions, you can reset the functions back to the factory settings: 1. Press and hold the SETUP button for approx. 3 seconds until the LED indicator flashes, then illuminates. Then release the SETUP button. -
Page 16: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Problem Cause / Solution The remote • Check to see if there are any control does objects between the device not work. -
Page 17: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. - Page 18 Supervision • Children should be supervised to ensure that they do not play with the remote control. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 19 GB-19...
- Page 20 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England LRC5N110-001 (P.N.
