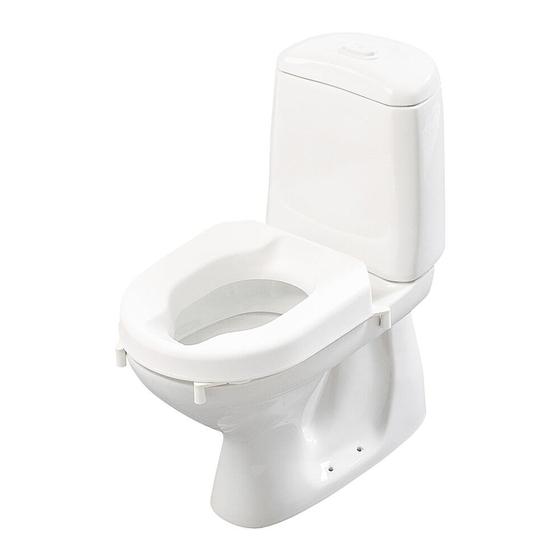

Toilet seat raiser with brackets

Advertisement

Hi-Loo
Toalettstolsförhöjning med kantstopp.

Toilet seat raiser with brackets.

Toilettensitzerhöhung mit Klammern.
Art.nr: 8030 1065
8030 1067
8030 1105
8030 1101
8030 1103
1.
2.
78271C
05-12-20
Etac AB, Box 203, SE-334 24 Anderstorp
Tel. +46/371-58 73 00, Fax. +46/371-58 73 90
www.etac.com
6 cm (utan lock, without lid, ohne Deckel)
6 cm (med lock, with lid, mit Deckel)
10 cm (utan lock, without lid, ohne Deckel)
10 cm (med lock, with lid, mit Deckel)
14 cm (utan lock, without lid, ohne Deckel)
A)
B)
A
A)
B)
A)
B)
B
Lossa de fyra låsskruvarna moturs.
Lossa bara på skruvarna.
Ta inte bort dem helt!
Undo the four fixing screws by turning them anticlockwise.
The screws should be loosened only.
Do not remove completely!
Lösen Sie die vier Feststellschrauben gegen den Uhrzeigersinn.
Die Schrauben werden lediglichgelöst.
Nicht hearus nehmen!
Vrid sedan de fyra kantstoppen utåt.
Dra sedan åt skruvarna så pass att det går att vrida kantstoppen
ytterligare ett snäpp.
Then move the four brackets towards the outside of the seat.
The screws will tighten until they click into place.
Stellen Sie anschließend die vier Befestigungsklammern
nach außen.
Die Schrauben werden wieder so fest angezogen, dass sie
sich noch weiterklicken lassen.
Monteringsanvisning / Assembly instruction / Montageanweisung
Låsskruv (belagd med häftande gummi)
Kantstopp

Fixing screw (covered in friction rubber)

Mounting bracket

Feststellschraube (mit haftgummi beschichtet)
Befestigungsklammer
