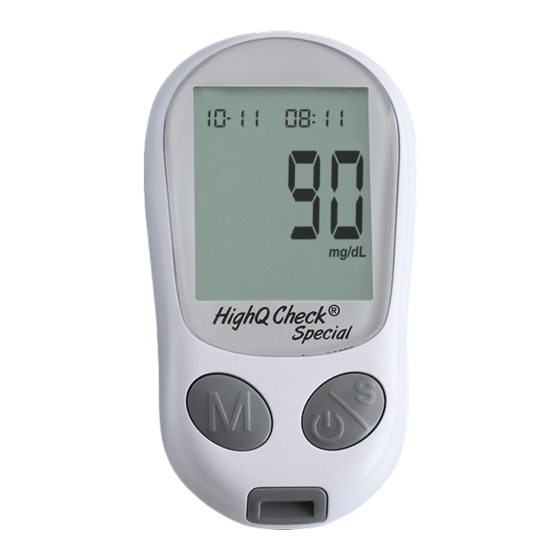

Aeon HighQ Check Special Manual
  1. Manuals
  2. Brands
  3. Aeon Manuals
  4. Blood Glucose Meter
  5. HighQ Check Special
  6. Manual

Aeon HighQ Check Special Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dear HighQ Check®System Owner :
®
Thank you for purchasing the HighQ Check
Blood Glucose Monitoring System. This manual
provides important information to help you to use the system properly. Before using this
product, please read the following contents thoroughly and carefully.
Regular monitoring of your blood glucose levels can help you and your doctor gain better
control of your diabetes. Due to its compact size and easy operation, you can use the HighQ
®
Check
Blood Glucose Monitoring System to easily monitor your blood glucose levels by
yourself anywhere, any time. If you have other questions regarding this product, please contact
the local customer service or place of purchase.
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HighQ Check Special and is the answer not in the manual?

Questions and answers

Summary of Contents for Aeon HighQ Check Special

  • Page 1 Dear HighQ Check®System Owner : ® Thank you for purchasing the HighQ Check Blood Glucose Monitoring System. This manual provides important information to help you to use the system properly. Before using this product, please read the following contents thoroughly and carefully. Regular monitoring of your blood glucose levels can help you and your doctor gain better control of your diabetes.

  • Page 2: Table Of Contents

    CONTENT INTENDED USE ......................04 IMPORTANT SAFETY PRECAUTIONS ..............05 CONTENTS OF SYSTEM ..................06 METER OVERVIEW ....................08 DISPLAY SCREEN ....................10 CHANGING THE BATTERY ..................11 TEST STRIP ......................12 CHANGING SETTINGS ...................13 CODING YOUR METER ..................16 BEFORE TESTING ....................17 PERFORMING A CONTROL SOLUTION TEST ............18...
  • Page 3 APPLY CONTROL SOLUTION .................20 TESTING BLOOD GLUCOSE ..................22 BLOOD SAMPLING ....................24 TESTING YOUR BLOOD GLUCOSE ...............25 REVIEWING BLOOD GLUCOSE DAY AVERAGE RESULTS AND MEMORY ...27 DOWNLOADING RESULTS ONTO A COMPUTER ..........28 MAINTENANCE ......................30 TROUBLESHOOTING .....................32 SYMBOL DESCRIPTION ..................38 SPECIFICATIONS ....................39 LOG BOOK ......................40 ..

  • Page 4: Intended Use

    INTENDED USE ®blood glucose meter HighQ Check ® The HighQ Check blood glucose meter is intended to be used for quantitative blood glucose ® tests in fresh capillary blood. The meter can only be used together with HighQ Check test strips.

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS READ BEFORE USE 1. Use this device ONLY for the intended use described in this manual. 2. This device does NOT serve as a cure for any symptoms or diseases. The data measured is for reference only. Always consult your doctor to have the results interpreted. 3.

  • Page 6: Contents Of System

    CONTENTS OF SYSTEM Your new HighQ Check®system kit includes : ① Blood glucose meter ② User’s manual ③ Carrying bag ④ Quick start user guide ⑤ Warranty card (last page of the user’s manual) ⑥ 2 x 1.5V AAA Battery ①...
  • Page 7 ② ③ ④ ⑤ NOTE A lancing device is not included in this kit. You must purchase your own lancing device. Either multiple‑use auto‑disabling lancing devices or single‑use, disposable lancing devices can be used with this system. If any items are missing from your kit or opened, prior to use, please contact local customer services or place of purchase for assistance.

  • Page 8: Meter Overview

    METER OVERVIEW ① ⑥ ⑧ ③ ②⑤ ⑦ ④...
  • Page 9 ① Display Screen ② ON&OFF / S Button Enter and confirm the meter settings ③ M Button Enter the meter memory and Alarm Settings ④ Test Slot Insert test strip here to turn the meter on for testing. ⑤ S Button Enter and confirm the meter settings and Switch AC/PC ⑥...

  • Page 10: Display Screen

    DISPLAY SCREEN ● Blood Drop Symbol ● AC‑before meal / PC‑after meal ● Test Strip Symbol ● Thermometer ● Test Result ● Alarm Symbol ● Date ● Voice Symbol ● Time ● Error Message ● Day Average ● Face Symbol ●...

  • Page 11: Changing The Battery

    CHANGING THE BATTERY When the battery symbol appears on the display for the first time, the battery is almost empty. Change the battery as soon as possible. The battery has already lost a lot of power and chan‑ geable conditions (e.g. a cold environment) can affect its performance even further. You need 2 batteries of the type 1.5V AAA Battery.

  • Page 12: Test Strip

    TEST STRIP ① ② ③ ① Absorbent Hole ② Confi rmation Window ③ Test Strip Handle ④ ④ Control Bars ATTENTION : The front side of test strip should face up when inserting test strip. Test results will be wrong if the contact bar is not fully inserted into the test slot. NOTE ®...

  • Page 13: Changing Settings

    CHANGING SETTINGS Before using your meter for the first time or if you change the meter battery, you should check and update these settings. Entering the Setting Mode Start with the meter off (no test strip inserted). Press ON&OFF / S Button for 3 seconds. 1.
  • Page 14 2. Setting the time format Press M to select the desired time format ‑‑‑ 12h or 24h. Press S. 3. Setting the time With the HOUR / MINUTE flashing in sequence, press S until the correct hour/ minute appears. Press M.
  • Page 15 With the HOUR / MINUTE flashing in sequence, press M until the following sequence appear “OFF”, the setting will be saved and the meter will shut down automatically. 4. Setting the reminder alarm Your meter has four reminder alarms. Press M after 3 secs into Alarm setting mode. With the hour/minute flashing in sequence, press M to select the correct hour/ minute.

  • Page 16: Coding Your Meter

    CODING YOUR METER A new code card is inside each new box of test strips. Code your meter every time when you open a new box of test strips. 1. Insert the code 2. The code number will be show on the card into the slot.

  • Page 17: Before Testing

    BEFORE TESTING Checking your test results CG‑001 Control Solution contains a known amount of glucose that reacts with test strips and is used to ensure your meter and test strips are working together correctly. Test strips, control solutions, lancing device or sterile lancets may not be included in the kit (please check the contents on your product box).

  • Page 18: Performing A Control Solution Test

    PERFORMING A CONTROL SOLUTION TEST ® ® To perform a control solution test, you will need : HighQ Check meter, HighQ Check test strip, CG‑001 control solution. 1. Insert the test strip to turn on the meter Insert the test strip into the meter. Wait for the meter to display the “...
  • Page 19 2. Press S around 3 seconds until mark this test as a control solution test mode. With “ ” displayed, the meter will not store your test result in memory under “ ”. If you press S again, the “ ”...

  • Page 20: Apply Control Solution

    APPLY CONTROL SOLUTION 1. Shake the control solution vial thoroughly before use. Squeeze out a drop and wipe it off, then squeeze out another drop and place it on the tip of the vial cap. 2. Hold the meter to move the absorbent hole of the test strip to touch the drop. Once the confirmation window fills completely, the meter will begin counting down.
  • Page 21 4. Read and Compare the Result After counting down, the control solution test result will appear on the display. Compare this result with the range printed on the control solution and it should fall within this range. If not, please read the instructions again and repeat the control solution test.

  • Page 22: Testing Blood Glucose

    TESTING BLOOD GLUCOSE Preparing the Lancing Device for Blood Testing Please refer to the manufacturer’s instructions for the lancing device to collect a blood sample. Warning: To reduce the chance of infection: ● Never share a lancet or the lancing device. ●...
  • Page 23 Sharing the lancing device and lancets may increase the risk of contracting infectious diseases. Lancing device must not be used for more than one person. Preparing the Puncture Site Stimulating blood perfusion by rubbing the puncture site before blood extraction has a signifi‑ cant influence on the glucose value obtained.

  • Page 24: Blood Sampling

    BLOOD SAMPLING Capillary Whole Blood: For detailed information of lancing device, please refer to the lancing device instruction. 1. Wash your hands in warm, soapy water. Rinse well and DRY them thoroughly. You can also use an alcohol pad to clean your fingertip. It is necessary to make sure the site is DRY before using the lancing device.

  • Page 25: Testing Your Blood Glucose

    TESTING YOUR BLOOD GLUCOSE Steps to Test your Blood Glucose: 1. Take one test strip out of the test strip vial. Replace the vial cap immediately and close it tightly. 2. Insert this test strip (with the gold bars facing up) into the test strip slot of the meter. The meter turns on automatically.
  • Page 26 7. When you hear a beep, the meter starts 7. When you hear a beep, the meter starts to count down. Then the test result is to count down. Then the test result is displayed with date, time, and stored in displayed with date, time, and stored in the memory automatically.

  • Page 27: Reviewing Blood Glucose Day Average Results And Memory

    REVIEWING BLOOD GLUCOSE DAY AVERAGE RESULTS AND MEMORY Reviewing Test Results 1. Press the “M” button, the last test result will appear on the display. Press the “M” button to recall the test results stored in the meter. 2. Press the “ S ” button again will appear on the display 7, 14, 30, 90 day average results for before meal result “...

  • Page 28: Downloading Results Onto A Computer

    To learn more about the Health Care Software System or to obtain a micro‑USB cable separa‑ tely, please contact the local distributor. 1. Obtaining the required cable and installing the software To download the Health Care Software System, please visit the AEON DIAGNOSTIC TECHNOLOGY CORPORATION website: www.aeonbiotech.com Connecting...
  • Page 29 2. Connecting to a personal computer Connect the cable to a micro‑USB port on your computer. With the meter switched off, connect the other end of the micro‑USB cable to the meter data port. “SET” will appear on the meter display, indicating that the meter is in communication mode. 3.

  • Page 30: Maintenance

    MAINTENANCE Caring for Your Meter 1. To clean the meter exterior, wipe it with a cloth moistened with tap water or a mild cleaning agent, then dry the device with a soft dry cloth. Do NOT rinse with water. 2. Do NOT use organic solvents to clean the meter. Meter Storage ●...
  • Page 31 Caring for Your Test Strips ● Storage conditions: 4℃ to 35℃ (39°F to 95°F ), below 85% relative humidity. Do NOT freeze. ● Store your test strips in their original vial only. Do not transfer to another container. ● Store test strip packages in a cool dry place. Keep away from direct sunlight and heat. ●...

  • Page 32: Troubleshooting

    TROUBLESHOOTING 1. Reference values Blood glucose monitoring plays an important role in diabetes control. A long‑term study showed that maintaining blood glucose levels close to normal can reduce the risk of diabetes complications by up to 60%. The results provided by this system can help you and your healthcare professional monitor and adjust your treatment plan to gain better control of your diabetes.
  • Page 33 Normal plasma glucose range for Time of day Diabetes control target people without diabetes Fasting and before meal ＜100 mg/dl (5.6 mmol/L) 80~120 mg/dl (4.4~6.7 mmol/L) 2 hours after meals ＜140 mg/dl (7.8 mmol/ L) 140~180 mg/dl (7.8~10 mmol/L) ＜110 mg/dl(6.1 mmol/ L) Before sleep 100~140 mg/dl (5.6~7.8 mmol/L) Please consult your doctor to determine a target range that works best for you.
  • Page 34 2. Error Messages MESSAGE WHAT IT MEANS WHAT TO DO Temperature is too high during the Shift to a normal environment test procedure. 10~40℃ (50~104°F) and wait 20 minutes before re-testing. Temperature is too low during the Shift to a normal environment test procedure.
  • Page 35 MESSAGE WHAT IT MEANS WHAT TO DO Battery power is too low for meter. Replace the batteries immediately. “Lo” flashing 3 times, the meter will shut down automatically. Blood glucose level is higher than Test again to make sure the mea- 600 mg/dL(33.3 mmol/L).
  • Page 36 MESSAGE WHAT IT MEANS WHAT TO DO Code card damaged. Please contact your local distribu- tor for assistance. 1. No insert the code card. Review the instructions and re-in- 2. Using wrong test strip. sert the code key, or please contact your local distributor.
  • Page 37 3. If the control solution testing result Is out of range: POSSIBLE CAUSE WHAT TO DO Error in performing the test Read instructions thoroughly and repeat the test again Control solution vial was poorly shaken. Shake the control solution vigorously and repeat the test again.

  • Page 38: Symbol Description

    SYMBOL DESCRIPTION...

  • Page 39: Specifications

    SPECIFICATIONS Model NO: HighQ Check® Dimension & Weight: 98(L) x 52(W) x 20 (H)mm, 58g (w/o battery) Power Source: 2 x 1.5V AAA battery Display: LCD Memory: 500 measurement results with respective dates and times External Output: micro USB Auto electrode inserting detection Auto sample loading detection Auto reaction time count‑down Auto shutdown after 180 seconds of idleness...

  • Page 40: Log Book

    LOG BOOK...
  • Page 41 LOG BOOK...
  • Page 42 LOG BOOK...
  • Page 43 LOG BOOK...
  • Page 44 LOG BOOK...
  • Page 45 LOG BOOK...
  • Page 46 LOG BOOK...
