Summary of Contents for Fogco FogCannon HD 160

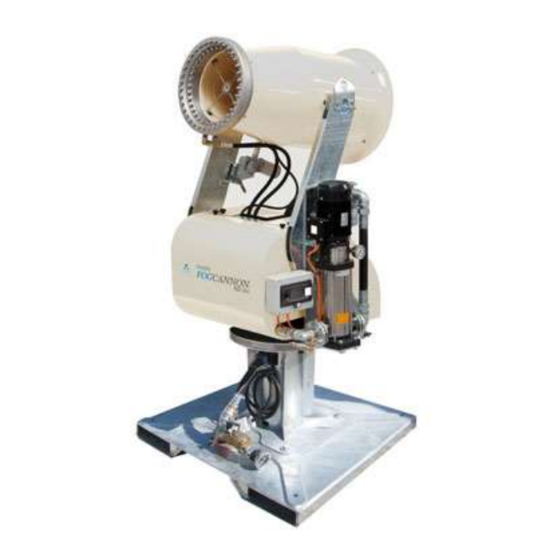

- Page 1 Fogco FogCannon ™ HD 160 / HD 230 / HD 300 Pole / Trailer FOGCO Environmental Solutions 600 S 56 Street Chandler, AZ 85226 Phone: 800-607-6478 Fax: 480-838-2232 Website: www.fogco.com e-mail: info@fogco.com Rev080818...
- Page 2 The Instruction Manual should be kept with the Machine at all times. Copies available at www.fogco.com. The Manufacturer reserves the right to modify the design and make improvements to the Machine without communicating it to the Customer and without updating the manual already delivered to the user.
- Page 3 PICTOGRAMS RELATING TO MACHINE STATUS The pictograms contained in a square / rectangle provide INFORMATION. Sym. Machine status; Machine off: with electrical and pneumatic power cut off. Machine on: with electrical and pneumatic power connected and in safe stop condition through mobile protection guards open (specifying which ones);...
- Page 4 PICTOGRAMS RELATING TO SAFETY The pictograms contained in a triangle indicate DANGER. The pictograms contained in a circle impose a RESTRICTION OR OBLIGATION. Sym. Name Dangerous electrical tension. Crushing of upper limbs. Getting caught. Dragging. Access forbidden to unauthorized persons. Do not remove safety devices.
-
Page 5: Manufacturer Data
MANUFACTURER DATA WLP S.r.l. Via Broletti, 18 38050 Castelnuovo (Trento) www.wlpdust.com Exclusive US Partner: Fogco Environmental Solutions 600 S 56 Street, Unit 9 Chandler, AZ 85226 www.fogco.com IDENTIFICATION DATA AND MACHINE PLATES Each Machine is identified by a metal plate that provides the following information:... -
Page 6: Installation
HANDLING WITH CRANE: suitable for both TRAILER and POLE versions with or without base. Use chains or bands with lifting force of at least 2200 lbs. and complete with two lifting hooks. Verify that the bands or the chains are long enough to avoid them touching the metal parts of the Machine. Hook and fix the band or the chain to the provided blocking pins only. -
Page 7: Control Panel Display
CONTROL PANEL DISPLAY The System status can be viewed on the various pages of the control panel display. Push the key on the keypad to select the page to view. PAGE 1 SYS (System): shows if the system is in Manual (MAN) or Automatic (AUT) mode EV (Electric Valve): shows if the electric valves (1,2,3) are On (1) or Off (0). - Page 8 Sets the auto oscillation rotation angle (See SET THE ROTATION ANGLE instructions below). Oscillates the cannon to the right. Turns the electric valve for zone 2 ON or OFF (1/0) if fitted with Electric Valves. Turns the timer ON/OFF. Initiates the system at start up and resets any Alarms. Lowers the cannon if fitted with Electric Tilt.
- Page 9 Start by pressing the ACQ key. The fogcannon will rotate clockwise until point 0. Once the cannon stops at Point 0, press and hold the Left Arrow key until the desired RIGHT stopping point is reached. Press the ACQ key to set first set point. Press and hold the Left Arrow key until the desired LEFT stopping point is reached.
-
Page 10: Setting The Timer
SETTING THE TIMER It is possible to set up TIME ON and TIME OFF times for the system. Press the PAGE key on the keypad to select Page 3. Press the TIM ON key to increase the TIME ON setting (left-hand column) in 5-minute increments from 5 to 30 minutes. - Page 11 SYSTEM AUTO mode is initiated by pressing and holding the SYSTEM AUTO button for 3 seconds. SYSTEM AUTO mode is terminated by pressing the SYSTEM AUTO button again. Turn OFF the RADIO mode by pressing the RADIO button on the control panel keypad. Turn OFF the Radio Transmitter by pushing the red tab on the top of the Transmitter inward.
- Page 12 The red Tower Light starts flashing. SOLUTION: Verify the origin of the malfunction and if necessary, contact Fogco Technical Assistance. Only after that the malfunction is solved, pull the emergency stop button and reset the internal breaker as described below.
- Page 13 SWITCH-ON THE CIRCUIT-BREAKER When the machine is stopped with the emergency stop it requires to switch-on the circuit-breaker with the following procedure: Restore the emergency stop. Dismount the front protection using a 10 mm wrench...
- Page 14 Remove the front protection and switch off the main switch (white arrow) Open the electric cabinet and look for the blue colored circuit breaker (orange arrow)
- Page 15 Lift –up the switch as shown in picture (blue arrow) Close the electric cabinet and the front protection. Switch –on the main switch (white arrow)
-
Page 16: Environmental Conditions
If you are planning to install the machine in an area where there is a strong risk of vibration, you should fit vibration dampeners of adequate size between the machine and the source of vibration. The dampeners require a written declaration of approval issued by Fogco. -
Page 17: Technical Data
TECHNICAL DATA Description HD 160 HD 230 HD300 Volts Fan Motor HP 480 VAC / 60 Hz Pump Motor HP 480 VAC / 60 Hz Oscillation Motor HP 24 VDC Full Load Amps STANDARD SUPPLY The machine is supplied ready for use and includes the User’s Manual and Data plate with Machine technical information;... - Page 18 IMPORTANT ! The Manufacturer shall NOT be liable for any damage caused by the Machine in case of: - use of the Machine by staff without necessary training; - improper use of the machine; - faults in electrical, hydraulic or pneumatic power; - incorrect installation;...
-
Page 19: Intended Use
INTENDED USE The machine has been designed to work as a system to suppress dust on worksites and quarries by the exclusive use of potable water. Any use with products/materials other than that mentioned is considered incorrect or improper, can damage the machine and create dangerous situations for the operator and/or persons close to the Machine. -
Page 20: General Maintenance Instructions
Other residual risks can be identified by introducing bodies within the fan when it is in operation and when it is off. The introduction of solid bodies can cause immediate breakage of the fan with consequent projection of the parts outside the machine. This situation can endanger people and cause damage to things within the range of action of the machine. - Page 21 Maintenance Date Done by: Notes executed...
- Page 22 Maintenance Date Done by: Notes executed...
- Page 23 Fogco workmanship or materials. Machines whose trademark, name, or identification number has been changed or removed and failures of, or failures caused by parts or accessories not manufactured by Fogco are not covered. If the Fogco Service Center determines that the problem with the product is not due to defects in workmanship or materials, the customer will be responsible for the cost of any necessary repairs and any freight expense to return the product to the customer.
- Page 24 NO[ ] Description of the manner in which this product is used: __________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ Fogco Acquisition Co., LLC 600 South 56 Street Chandler, AZ. 85226 Attention: Warranty Registration Phone: (480) 507-6478 Fax: (480) 838-2232 Website: www.fogco.com E-mail: info@fogco.com...
