AUTOMOTIVE PRODUCTS, INC.
ITEM
QUANTITY
1
2
3
4
5
7
ARTÍCULO
CANTIDAD
1
2
3
4
5
7
ARTICLE
QUANTITE
1
2
3
4
5
7
NOTE: Westin advises the installer to use a thread lubricant on all of the stainless steel fasteners. It may be necessary to remove
the front license plate and bracket, If local/state laws requires a license plate, license plate relocation kit 32-0055 is available.
1.
Remove contents from box. Verify all parts listed are present and free from damage, carefully read and understand all instructions before
attempting installation.
2.
Starting on the drivers side, front of the vehicle remove the drivers side bumper mount bolts. Do not attempt to loosen the drivers side
and passenger side mount bolts at the same time, doing this may cause the bumper to fall of the vehicle.(FIG1)
3.
Place drivers side mounting bracket onto the vehicle align the slots in the bracket with the holes for the bumper mount bolts, attach the
bracket to the vehicle using the factory bumper mount bolts. Fully tighten these bolts at this time.
4.
Once the drivers side bracket is fully tightened, repeat steps 2-3 for the passenger side.
5.
Take the bull bar and position it to the outside of the mounting brackets. Attach the bull bar to the mounting brackets with four (item 4)
M10 x 30MM hex head bolts, eight (item 5) M10 flat washers, four ( item 6) M10 lock washers, and four (item 7) M10 hex nuts . Do not
fully tighten at this time. (FIG 2)
6.
Level and adjust the bull bar as needed and fully tighten all hardware.
7.
Torque all M10 hardware to 30 ft lbs
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
75-1053-RevC
INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
1
1

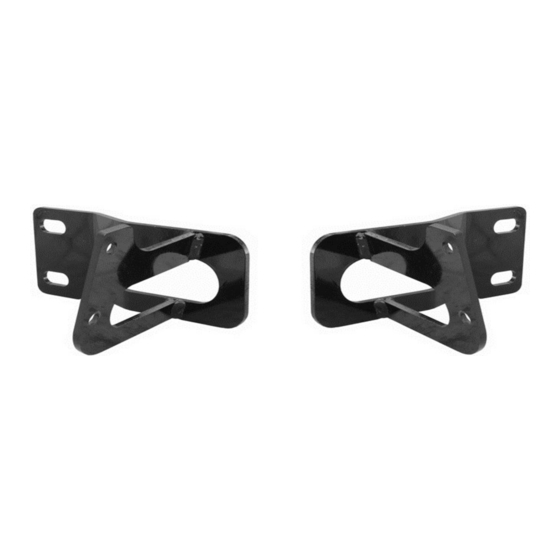

DRIVERS SIDE MOUNTING BRACKET
1
PASSENGER SIDE MOUNTING BRACKET
4
8
4
1
BARRA PROTECTORA FRONTAL
1
SOPORTE DE MONTAJE DEL LADO DEL CONDUCTOR
1
SOPORTE DE MONTAJE DEL LADO DEL PASAJERO
4
PERNOS DE CABEZA DE AOJO M10 X 30MM
8
4
1
1
SUPPORT DE MONTAGE COTE CONDUCTEUR
1
SUPPORT DE MONTAGE COTE PASSAGER
4
M10 X 30MM BOULONS A TETE HEXAGONALE
8
4
W16-0010
APPLICATION: 2011-UP FORD F250/350 BULL BAR
PART # 31-5370, 31-5375, 32-2370, 32-2375
DESCRIPTION
BULL BAR
M10 X 30MM HEX HEAD BOLTS
M10 FLAT WASHERS
M10 NYLOCK HEX NUTS
DISCRIPCIÓN
RONDANAS PLANAS M10
TUERCAS DE FIJACIÓN M10
DESCRIPTION
PARE-BUFFLE
M10 RONDELLES PLATES
M10 ECROUS HEXAGONOLE
TOOLS NEEDED
16MM SOCKET
16MM WRENCH
TORQUE WRENCH
RATCHET
HERRAMIENTA NECESARIA
DADO DE 16MM
LLAVE DE 16MM
LLAVE DE TORSIÓN
MATRACA
OUTILS NECESSAIRES
16MM DOUILLE
16MM CLE
CLE DYNAMOMETRIQUE
CLIQUET
Thank You for choosing Westin products
For additional installation assistance please call
Customer Service (800)793-7846
www.westinautomotive.com
02/09/16
