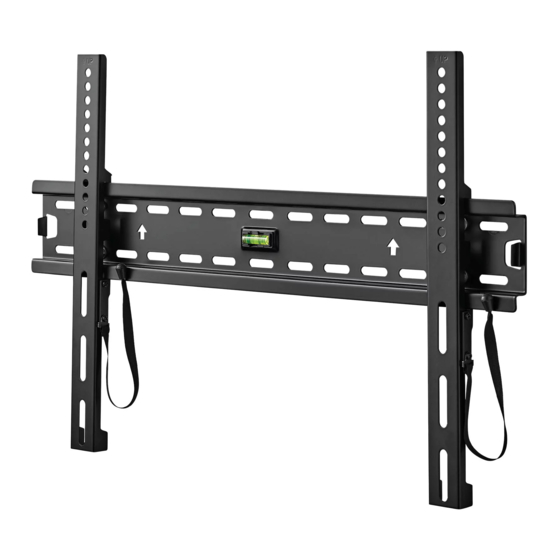

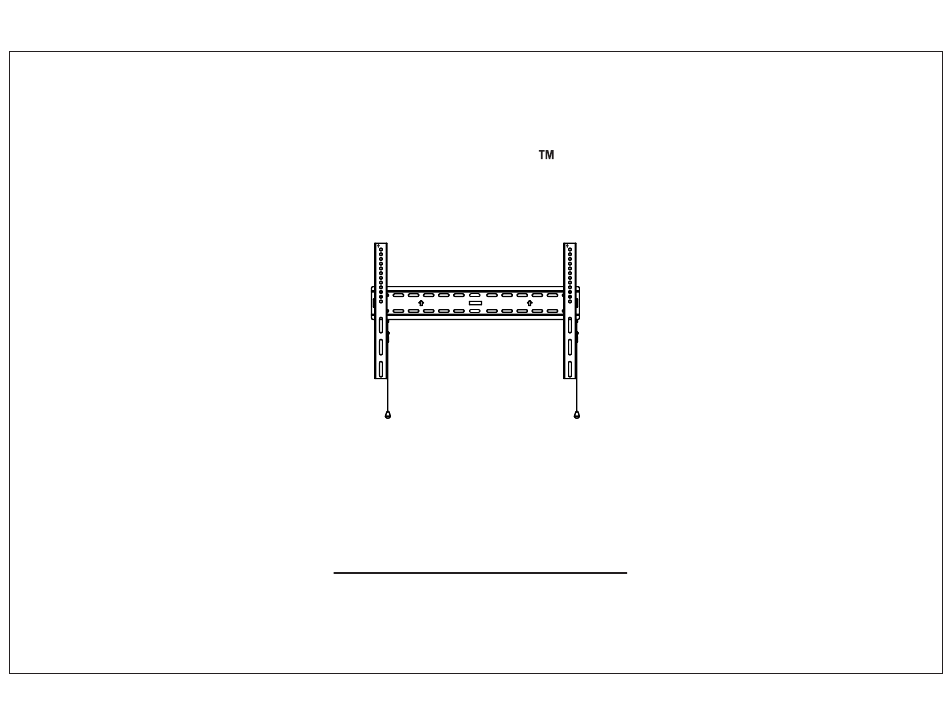

- Page 1 Fixed Wall Mount 32-70" Soporte Fijo para TV 32-70" Model/Modelo: 100010103 PRODUCT GUIDE Customer Service GUIA de PRODUCTO 1-888-516-2630 November 23, 2019_V1...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this mounting system, basic precautions should be followed including the following: Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warning, please contact Customer Service. (See Page 9) ê...
- Page 3 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Cuando se utiliza este sistema de montaje, se deben tomar precauciones básicas, incluidas las siguientes: Lea todo el manual de instrucciones antes de comenzar la instalación y ensamble de la unidad. Si tiene alguna inquietud con respecto a las instrucciones o advertenencias, Póngase en contacto con el servicio de atención al cliente. (Ver página 9) ê...
- Page 4 Stud Finder Martillo Plantilla de Papel Detector de vigas MOUNTING TEMPLATE 100010103 WARNING: FOR STUD MOUNTING ONLY USE WALL SCREWS. USE PALSTIC ANCHORS ONLY FOR CONCRETE, STONE OR MASONARY INSTALLATIONS. 8 1 1 3 1 3 0 8 4 1 DO NOT INSTALL TV MOUNT ONLY USING THE SHEETROCK.
- Page 5 Wood Stud installation requires a minimum 2x4 La instalación de postes de madera requiere una inch wood stud with 3/8 inch thick dry wall. Locate viga de madera de 2x4 pulgadas como mínimo con studs with a stud finder. Hold the paper template una pared seca de 3/8 de pulgada de espesor.
- Page 6 Concrete wall installation requires a minimum La instalación de paredes de concreto requiere un of 8 inch thick solid concrete. Hold the paper mínimo de 8 pulgadas de espesor de concreto template (D) against the wall to mark four holes. sólido.
- Page 7 Con un destornillador Phillips, fije el soporte With a Phillips screwdriver, attach the left TV izquierdo del televisor (B) y el soporte derecho del bracket (B) and right TV bracket (C) to the back televisor (C) en la parte posterior del televisor donde of the TV where shown.
- Page 8 TWO PEOPLE must hang the TV with the TV DOS PERSONAS deben colgar la TV con los bracket (B and C) on the wall plate (A). The soportes (B y C) en la placa de pared (A). El latch shown below will click when the TV is pestillo que se muestra a continuación hará...
- Page 9 TWO PEOPLE are needed to remove your TV Se necesitan DOS PERSONAS para quitar su televisor from the wall. While one person holds the TV, the de la pared. Mientras una persona sostiene el televisor, second person pull down on both release straps, la segunda persona tira de ambas correas de liberación unlocking the TV.
- Page 10 Product Warranty Thank you for your purchase. This Limited Warranty cover any defects in material or workmanship for purchases made in the U.S.A. and Canada, and excludes claims from conditions, malfunctions or damage not resulting from defects in material or workmanship.
- Page 11 November 23, 2019_V1 We‘d love to hear from you. Scan with your Walmart app and let us know what you think. 8 1 1 3 1 3 0 8 4 1...
