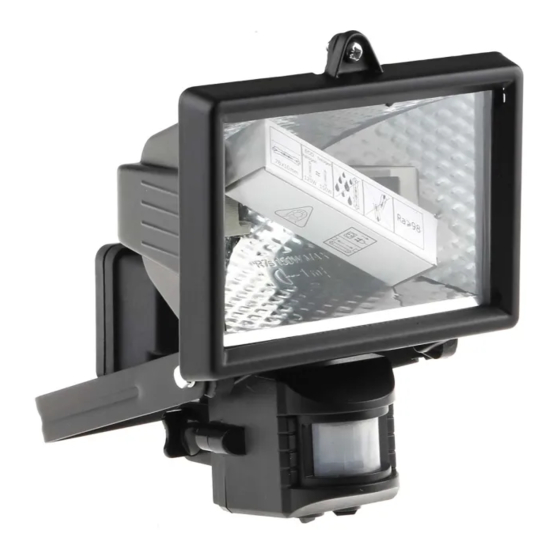

Halogen lamp with motion sensor

Advertisement

Datasheet
Halogen lamp 120W with motion sensor (791-
8264)
Halogen lamp 400W with motion sensor (791-
8273)
RS, Professionally Approved Products, gives you professional quality parts across all products categories. Our range has
been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price
ENGLISH
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 791-8264 and is the answer not in the manual?

Questions and answers

Summary of Contents for RS PRO 791-8264

  • Page 1 Datasheet ENGLISH Halogen lamp 120W with motion sensor (791- 8264) Halogen lamp 400W with motion sensor (791- 8273) RS, Professionally Approved Products, gives you professional quality parts across all products categories. Our range has been testified by engineers as giving comparable quality to that of the leading brands without paying a premium price...
  • Page 2 ENGLISH Attention: Please read the following instructions carefully to ensure that mounting operation will be carried out in the right way .These instructions should be properly preserved for future reference. Main Construction Data: Maximu Dimensions Rated Type Glass Weight Remark Power projecte d area...
  • Page 3 ENGLISH INSTALLATION AND STANDARD WIRING INSTRUCTIONS 1. Do not mount on a surface prone to vibrations. 2. Mounting position: The light should ideally be fixed with the wall fixing bracket. It is only allowed to be installed according to the diagram, and not allowed to be installed face up and lateral, air outlet hole can't face up.
  • Page 4 ENGLISH ADJUSTING THE DURATION TIME: The length of time that remains switched on after activation can be adjusted from (10±5) seconds to (4±1) minutes. Rotating the TIME knob from (+) to (-) will reduce the duration time. Note: Once the light has been triggered by the PIR sensor any subsequent detection will start the timed...
  • Page 5 ENGLISH ADJUSTING THE DAYLIGHT CONTROL LEVEL: The DAYLIGHT control module has a built-in sensing device (photocell) that detects daylight and darkness. Rotating the DAYLIGHT knob clockwise is from light () to dark (). The () position denotes that the Floodlights can work at day and night, and the () position only work at night. You can set to operate the unit at the desired level by adjusting the DAYLIGHT knob.

This manual is also suitable for:

791-8273
