Page 2 Disclaimer The contents of this manual may be changed due to product upgrade or other reasons. Winext reserves the right to modify this manual without notice, keeps the interpretation of the product installation and use.
Page 3 WLC-NEMA-01 Street Light Controller Table of Contents Introduction ..........................3 Appearance ................Error! Bookmark not defined. Specification ..........................5 Installation ..........................6 Wiring Method .......................... 6 Disclaimer ..........................6 Technical Support ........................8...
Page 4 WLC-NEMA-01 Street Light Controller 1. Introduction WLC-NEMA-01 Street Light Controller is an important part of the street light control system. It complies with the LoRaWAN 1.0.1 Class C standard for easy and fast access to LoRaWAN networks. If you’d like to adjust the brightness of the lamp, you can achieve this function on your application platform.

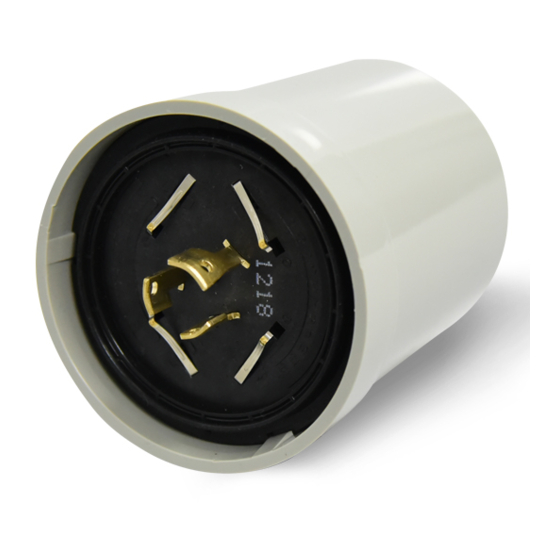

Page 5 WLC-NEMA-01 Street Light Controller 2. Image and Dimension 2-1 Image and Dimension (mm) 2-2 Installation...
Page 6 WLC-NEMA-01 Street Light Controller 3. Specification Item Parameter Parameter value Remarks Supply voltage AC85-265V Φ Dimensions 84×97.8（Height）（mm） IP Grade IP65 Output current Dimming type 0-10V/PWM Optional Output Single-phase communication Data Collection U,I,P.Q.COSΦ Transmit Power 20dBm±1dBm(max) Sensitivity -136dBm±1dBm(@SF=12) Antenna Gain Antenna Standing Wave <...
Page 7 Purple: dimming (positive) 6. Disclaimer Winext shall take no responsibility for improper or wrong installation due to violation of this manual or repair and maintenance services provided by non-designated personnel. Modifying and tampering the device or its internal components can cause a malfunction and void...
Page 8 WLC-NEMA-01 Street Light Controller 7. Technical Support For any technical and application issues, please contact our technicians or sales staff. Shenzhen Winext Technology Co., Ltd. Web: www.winext.cn http://winext.en.alibaba.com Address: 5 Floor, Building B50, Zhongchuang Industrial Park, Liuxian Rd, Taoyuan Street, Nanshan District, Shenzhen 518055, China Tel：(+86) 0755-23990916...
