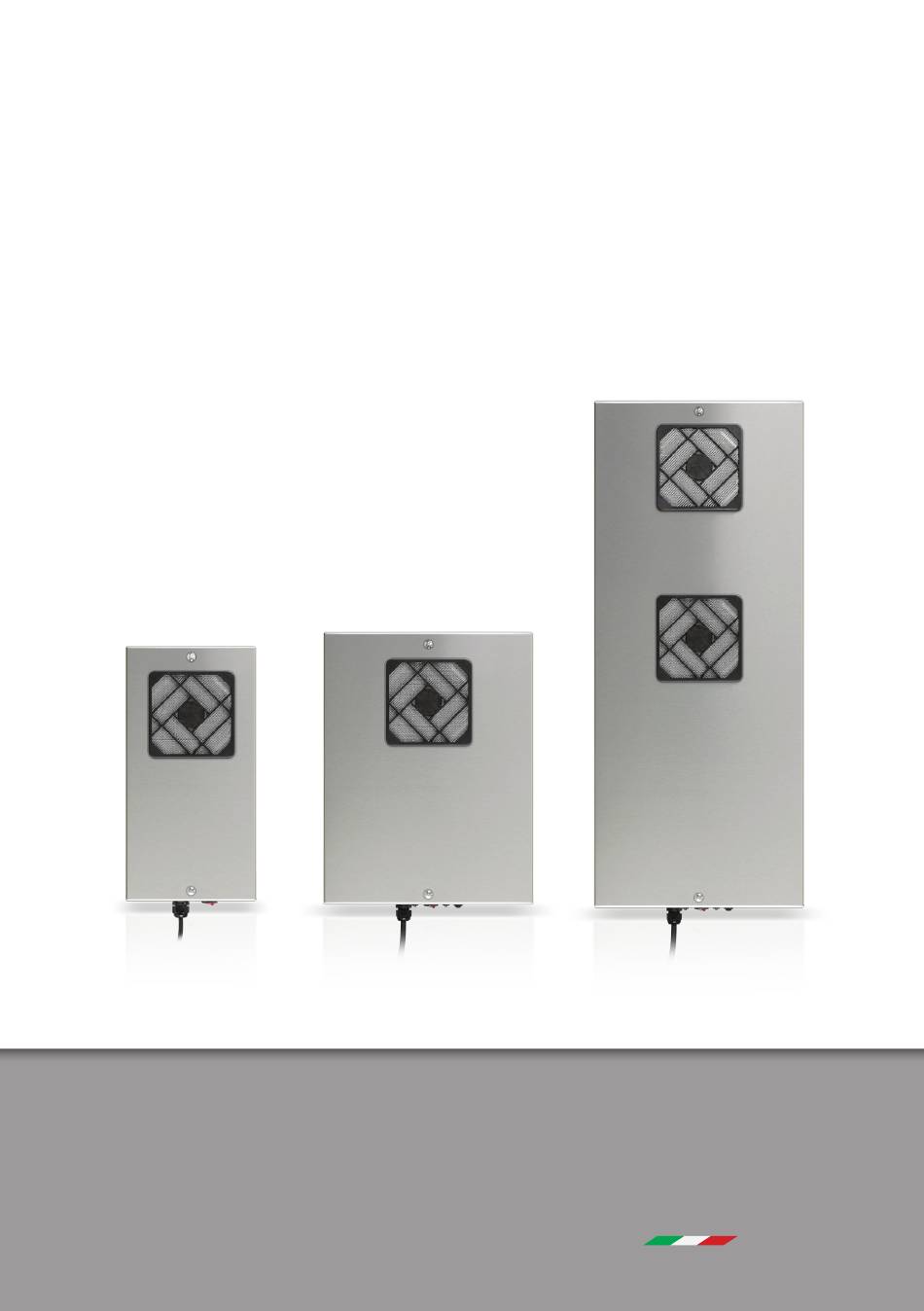

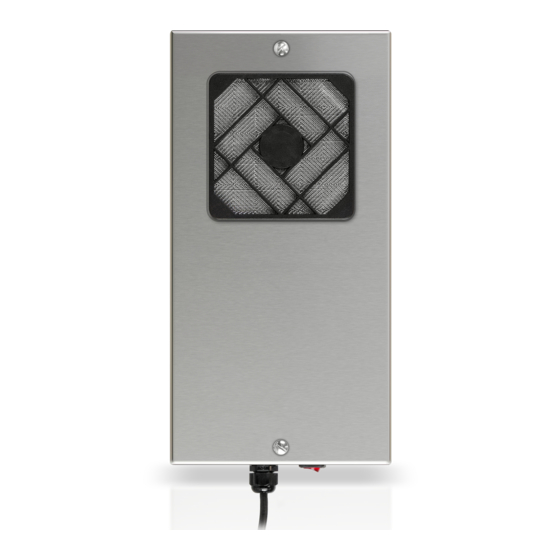

JONIX
steel
USE AND MAINTENANCE MANUAL
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY
MADE IN ITALY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the steel 1C and is the answer not in the manual?

Questions and answers

Summary of Contents for Jonix steel 1C

  • Page 1 JONIX steel USE AND MAINTENANCE MANUAL AIR PURIFICATION DEVICE WITH ADVANCED COLD PLASMA TECHNOLOGY MADE IN ITALY...
  • Page 2 These instructions are translated from Italian (the original language). JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual...

  • Page 3: Table Of Contents

    6.7 - USING THE DEVICE 7 - MaInTenance 7.1 - WARNINGS 7.2 - ROUTINE MAINTENANCE 7.2.1 - Cleaning the Ionising Tubes JONIX steel 1C 7.2.2 - Cleaning the Ionising Tubes JONIX steel 2C / 4C 7.2.3 - Cleaning the Ionising Tubes JONIX steel 2F / 4F 7.2.4 - Cleaning the Filter...
  • Page 4 J O N I X s t e e l 8 - oPeRaTIonal cHecK anD TRoUblesHooTInG 8.1 - LED SIGNAL FOR MALFUNCTION (JONIX steel 2C/4C/2F/4F 9 - DIsPosal WaRRanTY conDITIons ec DeclaRaTIon of confoRMITY aTTacHMenTs EXPLODED JONIX steel 1C EXPLODED JONIX...

  • Page 5: General Information

    In particular, if equipment maintenance is carried out in a way that is not in compliance with the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is relieved from any liability inherent to safety of persons and faulty operation of the equipments.

  • Page 6: Symbols

    JONIX for another copy or download the document from www.jonixair.com. Repairs and maintenance work must be carried out by JONIX authorised staff or by qualified staff according to the provisions set out by this manual. Do not alter or tamper with the device as it can lead to hazards and the manufacturer of the device shall not be liable for any damage caused.
  • Page 7 JONIX due to installation, adjustment and maintenance errors or by improper use. Please note that the use of products that require electricity, involves the observance of some...

  • Page 8: The Operating System

    - • , CO , VOC Saccharomyces gas molecule Cerevisiae , NO, NO Abatement > 99%* device: JONIX steel • reduces and eliminates continuously the bacterial load in a given ambient air and on the surfaces of indoor areas; • constantly decomposes Volatile Organic Compounds (VOC); • eliminates odours; • is compatible with environments that require on-going monitoring of air contamination. Use: • veterinary sector: waiting rooms, patients' rooms, infectious diseases ward, surgical rooms.

  • Page 9: Steel 1C

    J O N I X s t e e l sanitizing activity is compatible with human presence. JONIX steel JONIX steel 1C JONIX steel 2F JONIX steel 4F JONIX steel 2C JONIX steel 4C Airborne and surfaces contamination reduction can be verified through environmental analysis: air sampling with SAS method, surfaces and equipment sampling through contact plates method.
  • Page 10 J O N I X s t e e l 4 - TECHNICAL DATA JONIX steel 1C 4.1 COMPONENT DESCRIPTION JONIX steel 1C 01 Cover fixing screw 07 Plate in AISI 304 stainless steel 02 Filter cover 08 Switch button...
  • Page 11 13 Led signal for malfunction 14 Led signal for maintenance need Ionising tube and earthing bracket JONIX steel 2C: n°2 - JONIX steel 4C: n°4 15 Led signal for correct functioning 4.2.1 Technical features tecniche JONIX steel 2C / 4C...

  • Page 12: Steel 2F/4F

    : n°4 JONIX steel 2F steel 4F 07 Plate in AISI 304 stainless steel 16 Condenser support plate 08 Electrical compartment 4.3.1 Technical features tecniche JONIX steel 2F / 4F Dimensions Max power Weight Model Power Supply Air flow rate [m...
  • Page 13 - JONIX steel - Operating and maintenance manual (with dimensional diagrams, wiring diagrams, Declaration of Conformity). *): in JONIX versions the ionised tubes equipped are disassembled and steel 2C / 4C / 2F / 4F packed in their boxes. 5.2 HanDlInG anD TRansPoRT To handle the device use appropriate means, depending on the weight, as required by Directive 89/391/eec and subsequent amendments.
  • Page 14 J O N I X s t e e l 6 - InsTallaTIon anD coMMIssIonInG aTTenTIon! before carrying out any operation on the devices read all the instructions in this manual carefully. Definitions: UseR: UseR/oPeRaToR: QUalIfIeD sTaff: Person, organisation or Individual been Individuals who have completed a...
  • Page 15 • The device comes with slots and openings for ventilation; do not block or cover these slots. • Make sure that you always leave enough space for adequate ventilation around the side slots of the device. IMPoRTanT The installer and the user, when using the JONIX device, must steel take into account and solve all the other types of risk associated with the system. for example, risks arising from foreign bodies getting into the device or risks due...
  • Page 16 JONIX steel placed on the device plate (see image in chapter 4 of this manual). JONIX JONIX steel 2C steel 2F JONIX JONIX JONIX steel 1C steel 4C steel 4F Holes for Holes for Holes for wall wall wall fixing:...

  • Page 17: Steel 1C

    " Technical data", and the type of wall it is installed on. Fig. A: Unscrew the fixing screw and remove the frontal cover from the device. JONIX JONIX JONIX steel 1C steel 2C steel 2F JONIX JONIX...
  • Page 18 Finally proceed remounting the anterior panel fixing it with the appropriate locking screws. Example of JONIX steel 2C/4C vertical wall mounting. 6.4.1 Type of fixing There are different types of mounting of JONIX devices, in particular: steel : ambient air. - : ionised air flow.
  • Page 19 WaRnInG! Using power supply that does not meet the requirements requested by the device could resolve in damaging the device or part of it. • The electrical mains of the JONIX device must be used for the device only, there must steel be no other devices powered by the same power line. Do not use adapters, power strips and/ or extension cords.

  • Page 20: Steel 2C / 4C

    JONIX steel 2C / 4C JONIX JONIX steel 1C steel 2F / 4F The table below offers a generic overview of the times needed to reach and maintain the maximum sanitisation level, depending on the size of the relevant room.
  • Page 21 7.2 RoUTIne MaInTenance The JONIX device requires a small amount of maintenance consisting in regularly cleaning steel of cold plasma generators and of the retina filter to protect the fan.
  • Page 22 J O N I X s t e e l 7.2.1 cleaning the Ionising Tubes JONIX steel 1C Fig. 02: Switch the device off by turning the luminous On/Off switch to o. Remove the plug connected to the mains. Fig. 03: Unscrew the fixing screw and remove the frontal cover from the device.
  • Page 23 J O N I X s t e e l Fig. 05: Pull off the outer mesh from the tube if you have not already done so in the previous point. If this is difficult to do, turn the mesh around the glass while pulling to remove it.
  • Page 24 J O N I X s t e e l Fig. 08: Gently screw the ionising tube holding on to the base (green part). If the operation is difficult to perform, pull slightly the earthing bracket so that it does not make contact with the surface of the tube.
  • Page 25 It should be remembered that failure to clean the ionising tubes when indicated by the device leads to a drop in system performance. 7.2.2 cleaning the Ionising Tubes JONIX steel 2C / 4C In JONIX...
  • Page 26 J O N I X s t e e l Fig. 12: Unscrew the fixing screw and remove the frontal cover from the device. Fig. 13: Gently unscrew the ionising tubes, using the green plastic base. If the operation is difficult to perform, pull slightly the earthing bracket so that it does not make contact with the...
  • Page 27 J O N I X s t e e l Fig. 15: Replace the cover and rescrew with the appropriate screws. Clean the outside of the device with a damp cloth, using specific products for the cleaning of stainless steel. Do not use liquid cleaners or sprays, soap or the like.
  • Page 28 J O N I X s t e e l 7.2.3 cleaning the Ionising Tubes JONIX steel 2F / 4F In JONIX versions, steel 2F/4F clean the ionising tubes every time the specific LED lights up (yellow blinking light). Fig. 18: Switch the device off by turning the luminous On/Off switch to o.
  • Page 29 J O N I X s t e e l Fig. 20: Gently unscrew the ionising tubes, using the green plastic base. It is recommended to hold on to the tube (at about half its height) with the other hand in order to facilitate the operation.
  • Page 30 J O N I X s t e e l Fig. 22: Gently screw the ionising tube holding on to the base (green part), holding it in vertical position with the other hand and inserting it in the shaped profile of the condenser support plate.
  • Page 31 J O N I X s t e e l Fig. 24: Reconnect the power plug. In order to turn on the device act on the switch 0/I, turning it to I. Fig. 25: Hold down the reset button until the LED that signals the need for maintenance (yellow indicator) turns off and the LED that signals the proper functioning turns on...
  • Page 32 J O N I X s t e e l Fig. 27: Wash the mesh filter under running water and dry it with a cloth. Fig. 28: Using a damp cloth, wipe the plastic filter cover and the finger guard grille fitted at the bottom of the device.
  • Page 33 2C/4C/2F/4F specific LED lights up (permanent yellow light). Generally the substitution of the tubes should take place within 18 months of using. 7.3.1 Replacing the ionising tubes JONIX steel 1C Fig. 31: Switch the device off by turning the luminous On/Off switch to O.
  • Page 34 J O N I X s t e e l Fig. 33: Gently unscrew the ionising tubes, using the green plastic base. If the operation is difficult to perform, pull slightly the earthing bracket so that it does not make contact with the surface of the tube.
  • Page 35 J O N I X s t e e l Fig. 35: Replace the cover and rescrew with the appropriate screws. Clean the outside of the device with a damp cloth, using specific products for the cleaning of stainless steel. Do not use liquid cleaners or sprays, soap or the like.
  • Page 36 J O N I X s t e e l 7.3.2 Replacing the ionising tubes JONIX steel 2C / 4C In JONIX versions, steel 2C/4C clean the ionising tubes every time the specific LED lights up (permanent yellow light). Fig. 37: Switch the device off by turning the luminous On/Off switch to o.
  • Page 37 J O N I X s t e e l Fig. 39: Gently unscrew the ionising tubes, using the green plastic base. If the operation is difficult to perform, pull slightly the earthing bracket so that it does not make contact with the surface of the tube.
  • Page 38 J O N I X s t e e l Fig. 41: Replace the cover and rescrew with the appropriate screws. Clean the outside of the device with a damp cloth, using specific products for the cleaning of stainless steel. Do not use liquid cleaners or sprays, soap or the like.
  • Page 39 J O N I X s t e e l 7.3.3 Replacing the ionising tubes JONIX steel 2F / 4F In JONIX versions, steel 2F/4F clean the ionising tubes every time the specific LED lights up (permanent yellow light). Fig. 44: Switch the device off by turning the luminous On/Off switch to o.
  • Page 40 J O N I X s t e e l Fig. 46: Gently unscrew the ionising tubes, using the green plastic base. It is recommended to hold on to the tube (at about half its height) with the other hand in order to facilitate the operation.
  • Page 41 J O N I X s t e e l Fig. 48: Gently screw the ionising tube holding on to the base (green part), holding it in vertical position with the other hand and inserting it in the shaped profile of the condenser support plate.
  • Page 42 J O N I X s t e e l Fig. 50: Reconnect the power plug. In order to turn on the device act on the switch 0/I, turning it to I. Fig. 51: Hold down the reset button until the LED that signals the need for maintenance (yellow indicator) turns off and the LED that signals the proper functioning turns on...
  • Page 43 Follow the instructions in section fan mesh filter need “7.3 - Extraordinary Maintenance”. cleaning. JONIX steel 2C/4C/2F/4F it is not heard any noise coming The ionising tubes and from inside the module and Follow the instructions in section...
  • Page 44 J O N I X s t e e l 8.1 leD sIGnal foR MalfUncTIon (JONIX steel 2C /2F/4C/4F In the event that a device malfunction persists, unplug it from the mains and contact qualified staff. JONIX steel 2C/2F/4C/4F versions are equipped with an indicator of malfunctioning in case of malfunctioning (red indicator).
  • Page 45 J O N I X s t e e l 9 - DIsPosal When JONIX devices are no longer used they must be disposed of in compliance with steel the regulations in force in the country of installation. The unit consists of the following materials: • Stainless steel.
  • Page 46 4. The purchaser has the right to benefit from the 12 month warranty only if the warranty certificate is filled in correctly in all parts and sent within 10 days of purchase to: JONIX S.r.l., Viale Spagna, 31/33 – 35020 Tribano (PD) Italy 5. The warranty is only valid if the system is purchased from an authorised retailer.
  • Page 47 EU DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY JONIX S.R.L. LEGAL SITE Viale Spagna, 31/33 – 35020 Tribano (PD) SCIENTIFIC SITE Via Tegulaia 10/b - 56121 Pisa OPERATIVE SITE Via Romagnoli, 12/A - 40010 Bentivoglio (BO)
  • Page 48 J O N I X s t e e l ATTACHMENTS EXPLODED JONIX steel 1C JX70000004 JX40000021 JX03000022 70CONDTIPO175 JX40000039 JX40000019 JX40000025...

  • Page 49: Steel 2C/4C

    J O N I X s t e e l EXPLODED JONIX steel 2C/4C JX70000004 JX40000021 70CONDTIPO175 JX03000023 JONIX steel 2C 70CONDTIPO175 JX40000009 JX40000039 JONIX steel 4C JX40000040 JX40000025 JX11000002...

  • Page 50: Steel 2F/4F

    J O N I X s t e e l EXPLODED JONIX steel 2F/4F JX70000004 JX40000021 JX70000004 JX55000048 JX40000021 JX03000024 70CONDTIPO520 JX40000009 JONIX steel 2F JX55000049 JX40000039 JX40000040 JX40000025 70CONDTIPO520 JX40000010 JX11000002 JONIX steel 4F...
  • Page 51 J O N I X s t e e l OVERALL DIMENSIONS JONIX steel 1C : ambient air. : ionised air flow.
  • Page 52 J O N I X s t e e l OVERALL DIMENSIONS JONIX steel 2C/4C : ambient air. : ionised air flow. (10)
  • Page 53 J O N I X s t e e l OVERALL DIMENSIONS JONIX steel 2F/4F : ambient air. : ionised air flow. (10)
  • Page 54 ELECTRICAL DIAGRAMS JONIX steel 1C...
  • Page 63 ELECTRICAL DIAGRAMS JONIX steel 2C...
  • Page 71 ELECTRICAL DIAGRAMS JONIX steel 4C...
  • Page 79 ELECTRICAL DIAGRAMS JONIX steel 2F...
  • Page 87 ELECTRICAL DIAGRAMS JONIX steel 4F...
  • Page 96 JONIX srl Registered office Scientific headquarters Operational headquarters viale Spagna 31/33 via Tegulaia 10/b via Romagnoli 12/a support@jonixair.com 35020 Tribano (PD) - Italy 56121 Pisa - Italy 40010 Bentivoglio (BO) - Italy www.jonixair.com tel +39 049 9588511 tel +39 050 985165...
