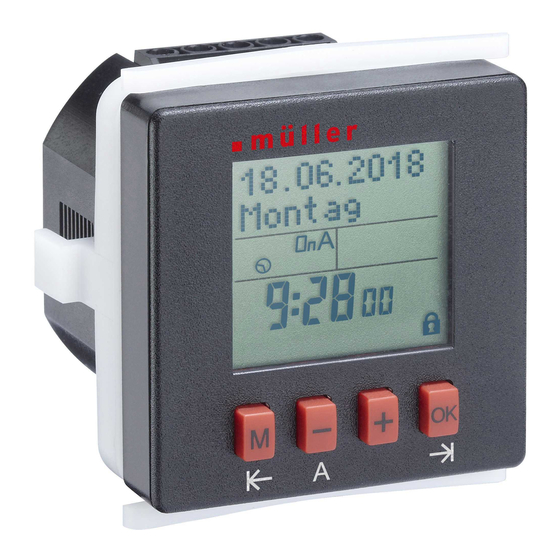

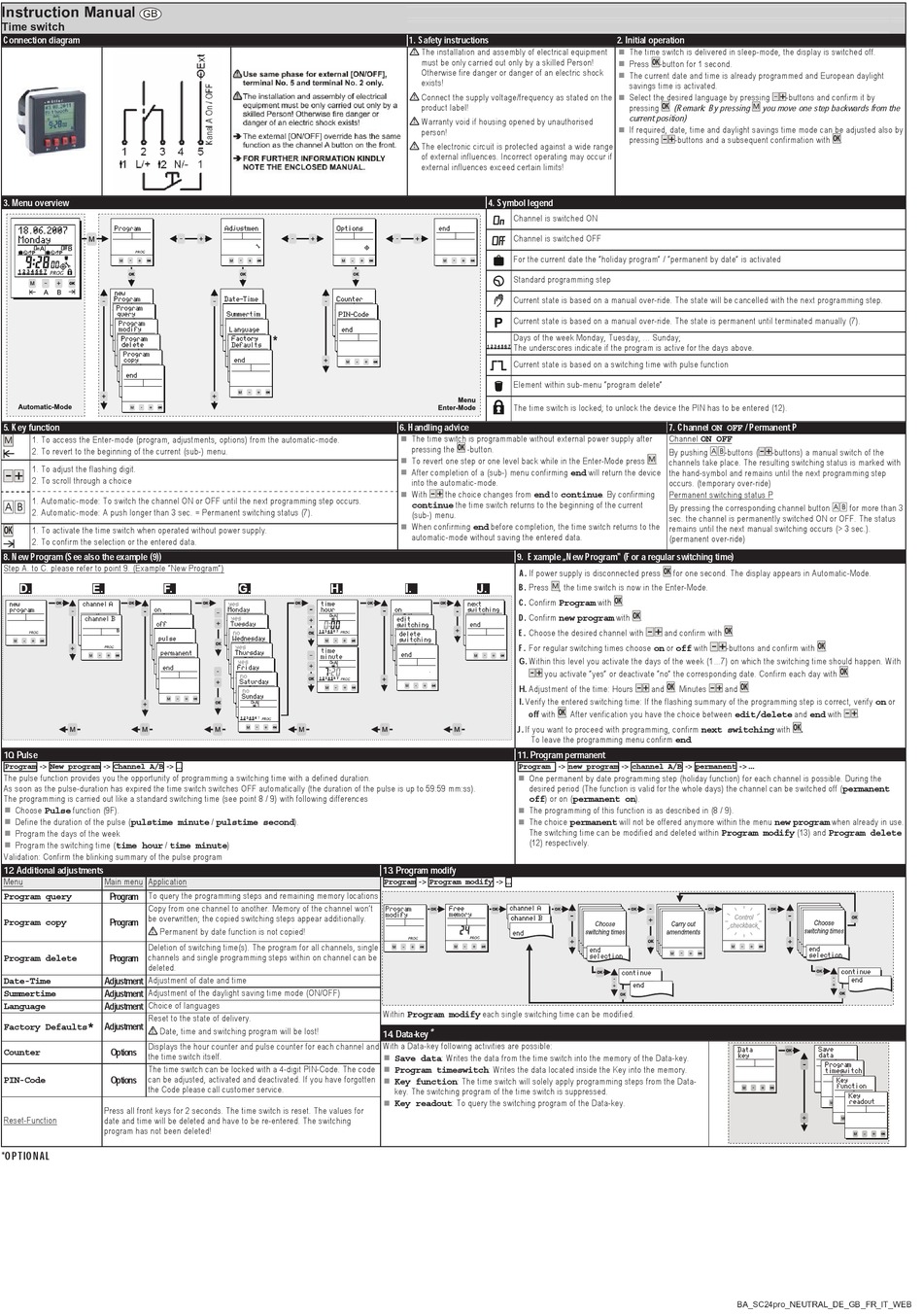

Connection diagram

3. Menu overview

5. Key function

1. To access the Enter-mode (program, adjustments, options) from the automatic-mode.
2. To revert to the beginning of the current (sub-) menu.
1. To adjust the flashing digit.
2. To scroll through a choice
1. Automatic-mode: To switch the channel ON or OFF until the next programming step occurs.
2. Automatic-mode: A push longer than 3 sec. = Permanent switching status (7).
1. To activate the time switch when operated without power supply.
2. To confirm the selection or the entered data.

8. New Program (See also the example (9))

Step A. to C. please refer to point 9. (Example "New Program")

10. Pulse

->
->
->
Program
New program
Channel A/B
The pulse function provides you the opportunity of programming a switching time with a defined duration.
As soon as the pulse-duration has expired the time switch switches OFF automatically (the duration of the pulse is up to 59:59 mm:ss).
The programming is carried out like a standard switching time (see point 8 / 9) with following differences
Choose
Pulse
function (9F).
pulstime minute
Define the duration of the pulse (
Program the days of the week
time hour
time minute
Program the switching time (
/
Validation: Confirm the blinking summary of the pulse program

12. Additional adjustments

Menu
Main menu Application
Program
Program query
To query the programming steps and remaining memory locations
Copy from one channel to another. Memory of the channel won't
Program
be overwritten; the copied switching steps appear additionally.
Program copy
Permanent by date function is not copied!
Deletion of switching time(s). The program for all channels, single
Program
Program delete
channels and single programming steps within on channel can be
deleted.
Adjustment
Date-Time
Adjustment of date and time
Adjustment
Summertime
Adjustment of the daylight saving time mode (ON/OFF)
Adjustment
Language
Choice of languages
Reset to the state of delivery.
Adjustment
*
Factory Defaults
Date, time and switching program will be lost!
Displays the hour counter and pulse counter for each channel and
Options
Counter
the time switch itself.
The time switch can be locked with a 4-digit PIN-Code. The code
Options
can be adjusted, activated and deactivated. If you have forgotten
PIN-Code
the Code please call customer service.
Press all front keys for 2 seconds. The time switch is reset. The values for
Reset-Function
date and time will be deleted and have to be re-entered. The switching
program has not been deleted!
*OPTIONAL
...
pulstime second
/
).
)

1. Safety instructions

The installation and assembly of electrical equipment
must be only carried out only by a skilled Person!
Otherwise fire danger or danger of an electric shock
exists!
Connect the supply voltage/frequency as stated on the
product label!
Warranty void if housing opened by unauthorised
person!
The electronic circuit is protected against a wide range
of external influences. Incorrect operating may occur if
external influences exceed certain limits!
4. Symbol legend
Channel is switched ON
Channel is switched OFF
For the current date the "holiday program" / "permanent by date" is activated
Standard programming step
Current state is based on a manual over-ride. The state will be cancelled with the next programming step.
Current state is based on a manual over-ride. The state is permanent until terminated manually (7).
Days of the week Monday, Tuesday, ... Sunday;
The underscores indicate if the program is active for the days above.
I
Current state is based on a switching time with pulse function
Element within sub-menu "program delete"
The time switch is locked; to unlock the device the PIN has to be entered (12).
6. Handling advice
The time switch is programmable without external power supply after
pressing the
-button.
To revert one step or one level back while in the Enter-Mode press
After completion of a (sub-) menu confirming
into the automatic-mode.
With
the choice changes from
end
to
continue
the time switch returns to the beginning of the current
(sub-) menu.
When confirming
end
before completion, the time switch returns to the
automatic-mode without saving the entered data.
9. Example „New Program" (For a regular switching time)
A.
If power supply is disconnected press
B.
Press
C.
Confirm
D.
Confirm
E.
Choose the desired channel with
F.
For regular switching times choose
G.
Within this level you activate the days of the week (1...7) on which the switching time should happen. With
you activate "yes" or deactivate "no" the corresponding date. Confirm each day with
H.
Adjustment of the time: Hours
I.
Verify the entered switching time: If the flashing summary of the programming step is correct, verify
off
with
J.
If you want to proceed with programming, confirm
To leave the programming menu confirm

11. Program permanent

Program
One permanent by date programming step (holiday function) for each channel is possible. During the
desired period (The function is valid for the whole days) the channel can be switched off (
off
) or on (
The programming of this function is as described in (8 / 9).
The choice
The switching time can be modified and deleted within
(12) respectively.

13. Program modify

->
->
Program
Program modify
...
Within
Program modify
each single switching time can be modified.
14. Data-key
*
With a Data-key following activities are possible:
Save data
: Writes the data from the time switch into the memory of the Data-key.
Program timeswitch
: Writes the data located inside the Key into the memory.
Key function
: The time switch will solely apply programming steps from the Data-
key. The switching program of the time switch is suppressed.
Key readout
: To query the switching program of the Data-key.

2. Initial operation

The time switch is delivered in sleep-mode, the display is switched off.
Press
-button for 1 second.
The current date and time is already programmed and European daylight
savings time is activated.
Select the desired language by pressing
(Remark: By pressing
pressing
.
current position)
If required, date, time and daylight savings time mode can be adjusted also by
pressing
-buttons and a subsequent confirmation with
7. Channel
ON OFF
Channel
ON OFF
By pushing
-buttons (
.
channels take place. The resulting switching status is marked with
end
will return the device
the hand-symbol and remains until the next programming step
occurs. (temporary over-ride)
continue
. By confirming
Permanent switching status P
By pressing the corresponding channel button
sec. the channel is permanently switched ON or OFF. The status
remains until the next manual switching occurs (> 3 sec.).
(permanent over-ride)
for one second. The display appears in Automatic-Mode.
, the time switch is now in the Enter-Mode.
Program
with
.
new program
with
.
and confirm with
on
or
off
with
-buttons and confirm with
and
. Minutes
and
. After verification you have the choice between
next switching
end
.
->
->
->
new program
channel A/B
permanent
permanent on
).
permanent
will not be offered anymore within the menu
Program modify
-buttons and confirm it by
you move one step backwards from the
.
/ Permanent P
-buttons) a manual switch of the
for more than 3
.
.
.
.
on
or
edit/delete
and
end
with
.
.
with
-> ...
permanent
new program
when already in use.
(13) and
Program delete
