Functional Devices RIB LSDUALC Installation & Operating Instructions

LSDUALC

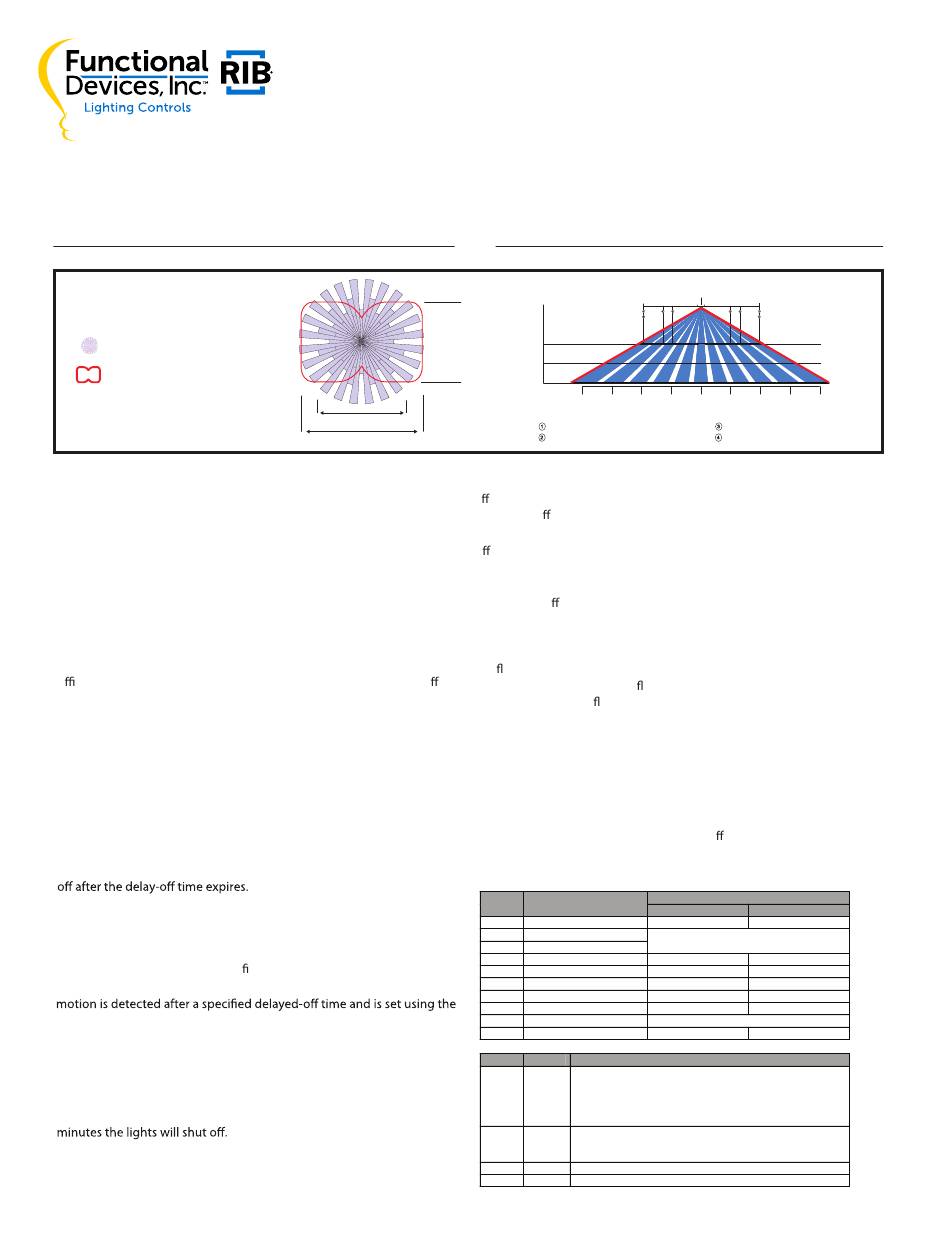

DETECTION AREA
PIR Optical View Pattern
Ultrasonic Detection Pattern

DESCRIPTION:

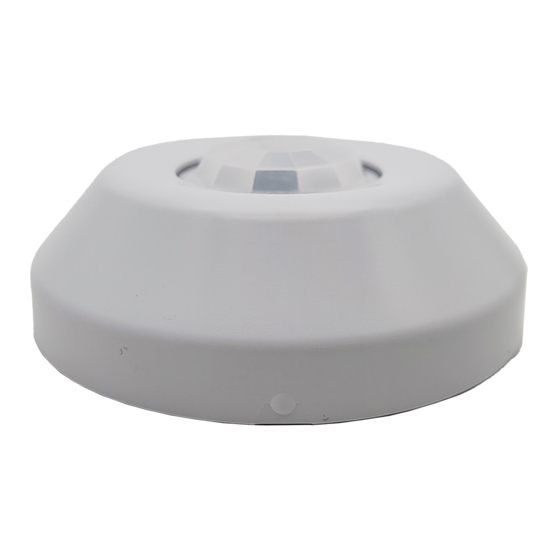

The LSDUALC is a low-voltage infrared and ultrasonic sensor that
works with any class 2 power supply, to automatically control
lighting. The sensor turns the lights ON and keeps them ON when
occupancy is detected and will turn the lights OFF after the delayed-OFF
time has expired. LSDUALC provides 2 SPDT 1 Amp, 30 VDC Form C relay
contacts. The sensor includes detection sequence logic that continuously
analyzes surrounding conditions and adjusts to meet those changing
conditions. This mode allows for the sensor to continuously adjust and
optimize its performance.
There is a daylight sensor built into the sensor to allow for ambient light
override functionality. If the ambient light level in the room is at a
su cient level, the user can conserve energy by keeping the lights o . If
this setting is used, the controlled lighting load will only turn on if the
ambient light present is less than the desired setting.

INSTALLATION:

See the back of this installation manual for installation instructions.
The sensor is fully operational after 30 seconds of powering up the
device. (See Page 3 of this bulletin.)

OPERATION OF SENSOR

a. Multi-Tech Mode:
In this default mode, PIR or Ultrasonic technology turn lights on and
keeps lights on. If neither technology detects motion, the light turns
b. Single-Tech Mode: Only one technology is active in this mode. The
active technology is dip switch selectable via control console. Motion is
detected by the selected technology and will turn ON the lights upon
detection, as well as keep them ON. When motion is not detected, the
lights will turn OFF after the speci ed delayed-OFF time.
c. Delayed-OFF Time: The sensor is designed to turn the lights OFF if no
black twist knob designated for timer inside the control console.
Dependent upon environmental conditions and occupancy patterns, the
adapting patterns will modify the delayed-OFF time to match the
parameters of each installation.
d. Walk-Through Mode: The walk-through feature is useful when a room
is momentarily occupied, such as a storage room. When a person enters
the room, the lights will turn on and stay on for 2.5 minutes. After 2.5
393313 • 08/03/20
Functional Devices, Inc.
101 Commerce Drive
Sharpsville, IN 46068
TOP VIEW
26 ft.
32 ft.
Toll Free: (800) 888-5538
Office: (765) 883-5538
Fax: (765) 883-7505
INSTALLATION &
OPERATING INSTRUCTIONS
SIDE VIEW
0ft 0m
26 ft.
8
10
12
24 18
Major Motion, e.g. body
PIR Detection Range
1
Ultrasonic Detection Range
2
Scenario A: If motion is detected within 10 seconds of the lights shutting
o , the sensor will proceed to standard operation (5s to 30m). After the
lights shut o , the sensor will revert back to walk-through mode.
Scenario B: If no motion is detected within 10 seconds of the lights shutting
o , the sensor will stay in walk through mode and the next time it sees
detection the lights will turn on for 2.5 minutes.
e. Daylight Sensor: To enable daylight sensor operation, set Dip Switch 1
in Bank B to O . This puts the sensor in a stand-by mode when the natural
light level exceeds the selected Foot Candles (FC) level inhibiting the
lights from turning on.
f. LED Operation: The sensor has two LED indicators that, when enabled,
will ash when motion is detected. These LEDs are Enabled/Disabled via
DIP switch 2 in Bank B. A Red ash indicates motion detected by Infrared
Technology. A Green ash indicates motion detected by Ultrasonic
Technology.

DETECTION AND ACTIVATION:

When a person enters a room, the sensor detects major body motion
and turns the light on. The light is kept on even as smaller body
movement is detected. This sensor's detection sequence logic (DSL)
minimizes false triggering by continuously analyzing the motion
detection signal and adjusts internal operation to maximize the
detection of motion while minimizing the e ects of environmental
and electrical noise.

OPERATION MODE ADJUSTMENT

Switch Function
Bank A
A1 Multi/Single Technology
A2 Technology Activated
A3 N/A
A4 Walk-Thru Mode
Bank B
B 1 D a y g i l t h S e n s r o
B2 LED Indicator
B3 Test Mode
B4 N/A
A1 A2 Feature
Off Off PIR technology turns light on; however, motion detection
by either technology will keep the light on. If neither
technology detects motion, the light turns off after the
Delay-Off time. [Choose this option to reduce false
activation due to ultrasonic technology.]
Off On PIR or Ultrasonic technology turns light on and keeps light
on. If neither technology detects motion, the light turns off
after the Delay-Off time. [Default]
On Off Only PIR technology is active.
On On Only Ultrasonic technology is active.
Email: sales@functionaldevices.com
Website: www.functionaldevices.com
B2887
Detection Range
at 8 ft height
1 4 3 3 4 1
2 2
12 6 0ft 6 12 18
Smaller Body Movement
PIR Detection Range
3
Ultrasonic Detection Range
4
Settings
Off On
Features enabled by the combination of
A1 & A2 are shown in the table below.
Walk-Thru Enabled Normal Occupancy
Enabled Disabled
Enabled Disabled
Off-On-Off (Toggle Enter/Exit)
24
