Model 1455-3 Door Lock
Installation Guide
Unitop® Model 1455-3 Door Lock

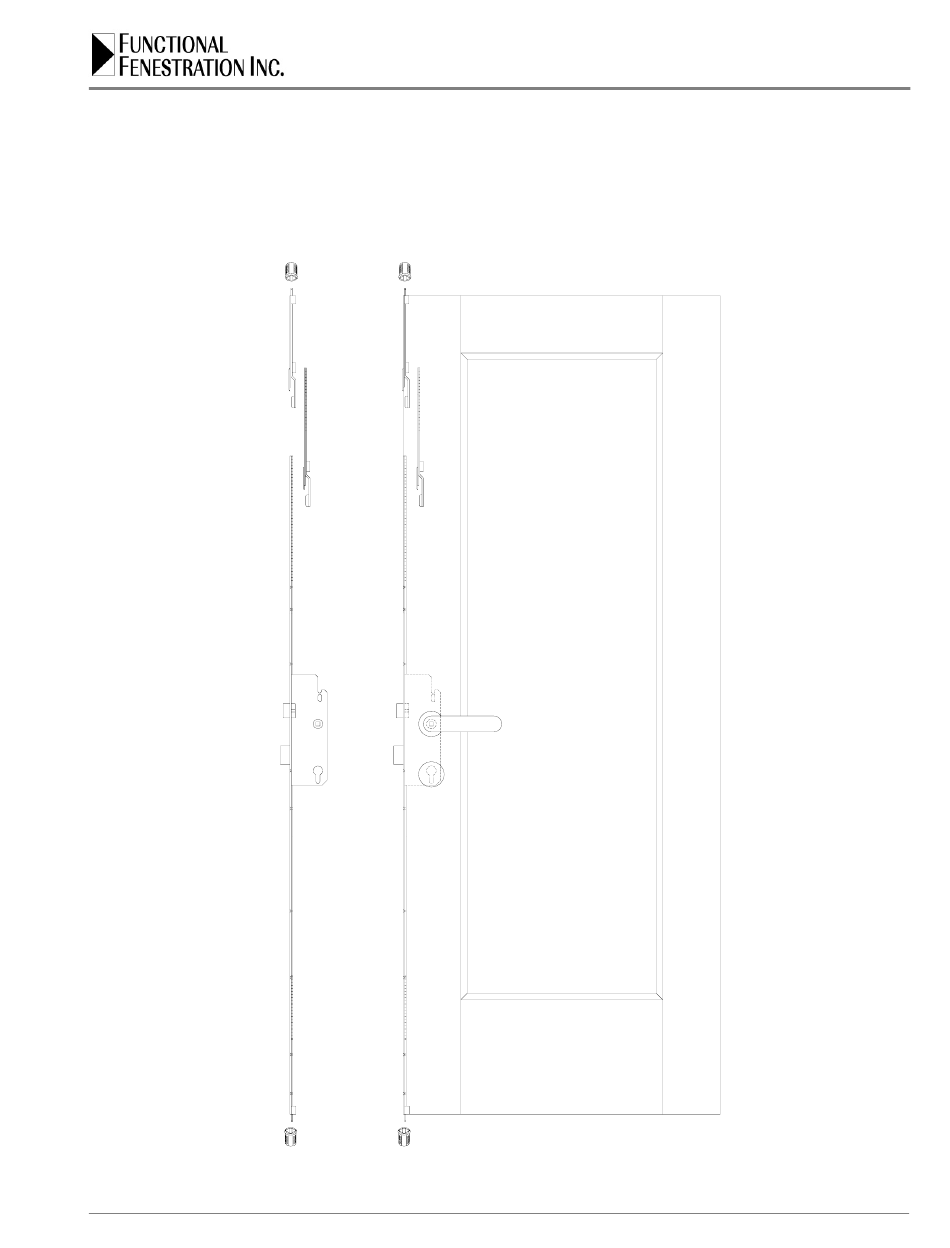

3-Point Locking Hardware
All article descriptions and technical specifications herein correspond to the time of publication.
FFI reserves the right to make modifications.
FFI cannot assume liability for errors caused in printing or otherwise.
FFI Tech Dept. v 09.11.06
Measurements in Millimeters. 1" = 25.4mm
1 of 11
Advertisement
Table of Contents
Summary of Contents for Functional Fenestration AGB Unitop 1455-3
- Page 1 ® AGB Unitop Model 1455-3 Door Lock Installation Guide Unitop® Model 1455-3 Door Lock 3-Point Locking Hardware All article descriptions and technical specifications herein correspond to the time of publication. FFI reserves the right to make modifications. FFI cannot assume liability for errors caused in printing or otherwise. FFI Tech Dept.
-
Page 2: Table Of Contents
® AGB Unitop Model 1455-3 Door Lock Installation Guide Table of Contents 1.0 Basic Information 1.1 Technical data 2.0 General Description 2.1 Technical characteristics 3.0 Door Preparation Lock stile milling Lockbox mortise 4.0 Lock Cutting & Mounting Lock cutting using standard handle height Lock cutting using lowered handle height Lock handing Lock mounting... -
Page 3: Basic Information
® AGB Unitop Model 1455-3 Door Lock Installation Guide 1.0 Basic Information Congratulations on your purchase of this innovative product from AGB. Unitop® is a registered trademark of Alban Giacomo spa (AGB). The Unitop door lock complies with EU standards. The Unitop model 1455-3 door lock can be assembled and installed by experienced personnel without difficulty by using this installation guide. -
Page 4: Technical Characteristics
® AGB Unitop Model 1455-3 Door Lock Installation Guide 2.1 Technical Characteristics FFI Tech Dept. v 09.11.06 Measurements in Millimeters. 1” = 25.4mm 4 of 11... -
Page 5: Door Preparation
Installation Guide 3.0 Door Preparation 3.1 Lock Stile Milling Refer to the figures below and mill the hardware groove in the lock-stile. A special cutter is available for the hardware groove from Functional Fenestration, Inc. for shaper machines. 16.2mm Hardware Groove 12.3mm... - Page 6 ® AGB Unitop Model 1455-3 Door Lock Installation Guide 3.3 Lockbox Mortise Determine the handle height to be used. The Unitop Model 1455-3 lock comes with a standard handle height of 1050 mm (41.34”). Using this handle height will mean that no cutting will need to be done on the lock bottom.
-
Page 7: Lock Cutting & Mounting
® AGB Unitop Model 1455-3 Door Lock Installation Guide 4.0 Lock Cutting & Mounting Top Terminal Shootbolt Door Top Edge 4.1 Lock Cutting Using Standard Handle Height Refer to the figures on this page. When using the standard handle height of 1050 mm no cutting below the lockbox is necessary. -
Page 8: Lock Cutting Using Lowered Handle Height
® AGB Unitop Model 1455-3 Door Lock Installation Guide Top Terminal Shootbolt 4.2 Lock Cutting using Lowered Handle Height Door Top Edge Refer to the figures on this and the preceding page. When lowering the handle height cutting below the lockbox is necessary with the addition of a bottom shoot-bolt terminal. -
Page 9: Lock Handing
® AGB Unitop Model 1455-3 Door Lock Installation Guide 4.3 Lock Handing The Unitop model 1455-3 lock has a reversible self-adjusting spring latch. Before installing lock in door lock-stile make sure you have the correct handing. To change the handing insert a Phillips screwdriver as shown in figure and push in so that latch is moved out of lock body and then twist. -
Page 10: Operation & Maintenance
® AGB Unitop Model 1455-3 Door Lock Installation Guide Operation & Maintenance 6.1 Operation Locking 1. Lift the lever handle 45° to engage the top and bottom shoot-bolts and throw deadbolt. 2. Turn the profile cylinder knob or key until it stops to lock. (approximately 1-3/4 turns). -
Page 11: Maintenance
® AGB Unitop Model 1455-3 Door Lock Installation Guide 6.3 Maintenance FFI Tech Dept. v 09.11.06 Measurements in Millimeters. 1” = 25.4mm 11 of 11...
