INSTALLATION MANUAL

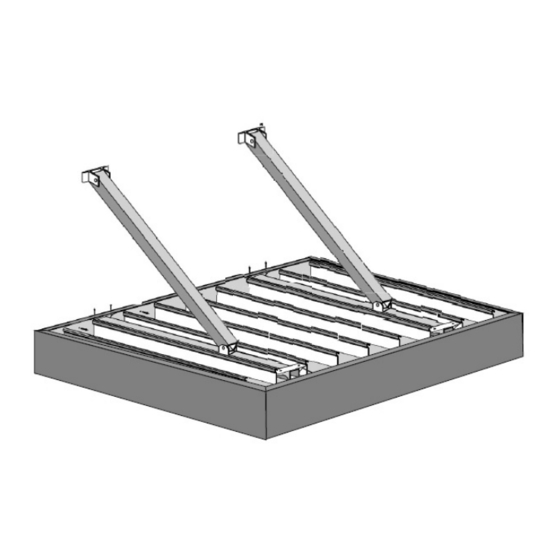

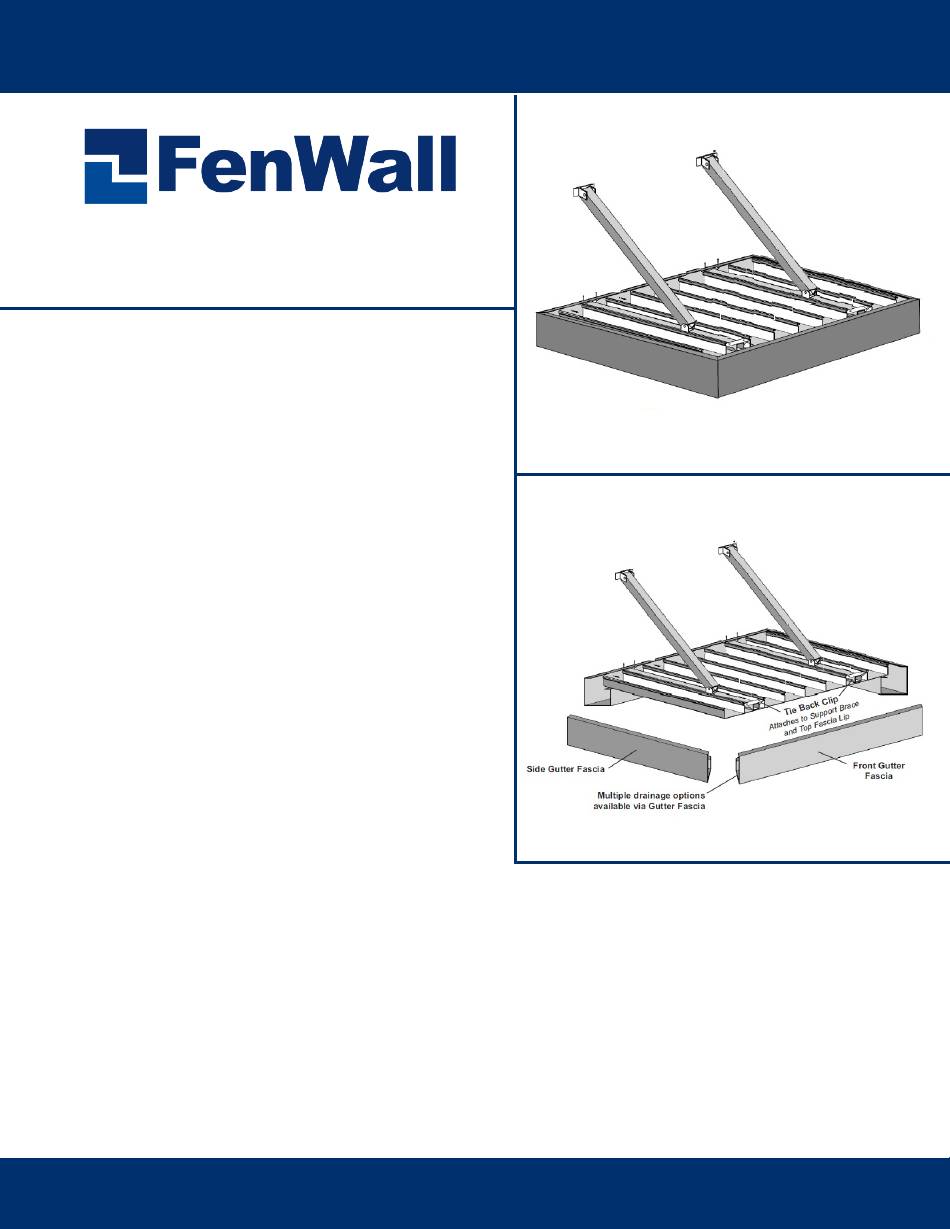

Atlantis G-Gutter Canopy

Product Description:

This form provides the details required to
field assemble and install the Fenwall Atlantis
G-Gutter Canopy.
Please note, these are suggested anchoring
options. Installer must verify the required
attachment details with engineer.

Optional Tool List:

• Electrical Cords and Power Source
• 4' or 6' Level and or Lazar level
• Caulk Gun
• General Hand Tools
• Pencils and or Removable Markers
• High Speed Hammer Drill
• Assorted Ratchets - 1/4" - 1/2"
• Tape Measure
• Ladder and or High Reach
• Lifting Device for Raising Canopy

Step by Step Installation Instructions:

1) Layout opening to ensure plum and level conditions.
2) Locate and attach the upper tieback brackets to the wall. Be sure of adequate support backing
by others.
3) Layout the anchoring holes and place pilot holes into the steel or contract substrate.
4) Align pre-drilled mounting holes in the back G-Gutter with the pilot holes and anchor the
G-Gutter into place.
5) While still supporting the front of the canopy, attach the tiebacks to the mounting brackets.
6) Check several times during the install for plum and level.
7) Apply approved flashing and caulking as required.
8) Wipe all surfaces clean to ensure no damage was caused during the installation.
