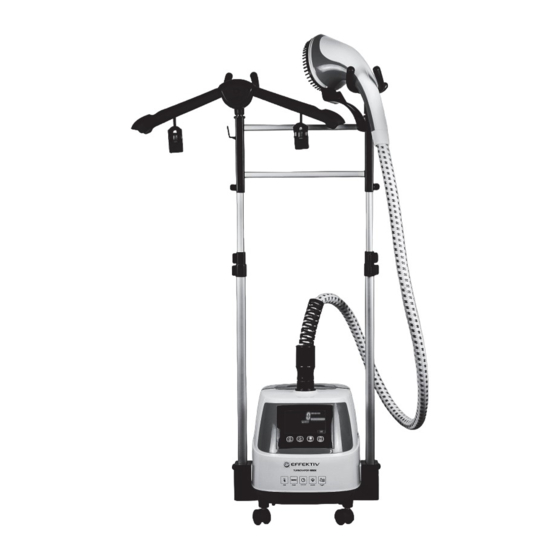

- Page 1 InstructIon TurboVapor 1950X VERTICAL FABRIC STEAMER PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE FIRST USE AND KEEP IT FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X CONTENTS: Product introduction ................. 3 Notice ....................3 Using guidance ..................4 Method of removing scale ..............4 Parts and Accessories ..............5 Installation ..................6-7 Operation ..................8-11 Ironing methods ................11 Drain the water reservoir and stow the machine ......12 Troubleshoots ..................13... -
Page 3: Product Introduction
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X PRODUCT INTRODUCTION Thanks for choosing us! The working theory of this product is touching the fabric by hot steam at 98°C to soften the fibers, to make the fabric smooth and neat by the movements of pull and press. The fabric steamer can clean, disinfect and remove the smell, it popularly used in the garment shops, hotels, restaurants, home, etc, normally with hanger and hook. Only 45 seconds for heat-up and steam, iron to the fabric, no need ironing board, 60 minutes continuous steam, it decrease many traditional ironing steps and save the time. Please use our products without worry, we have... -
Page 4: Using Guidance
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X USING GUIDANCE – Make sure the reservoir is full of water on the relative position. – Controlling the angle of ironing steam by the handle which is the connection of end of sprinkler and hose. -
Page 5: Parts And Accessories
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X PARTS AND ACCESSORIES Fig. 3 The meaning of numbers in the display screen are as following: 1 means: 1 gear – suitable for tulle material 2 means: 2 gear – suitable for silk material 3 means: 3 gear – suitable for fibre material... -
Page 6: Installation
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X INSTALLATION Step 1 Install Telescopic Rods and Rook 1. Put the main body on the ground. 2. Loosen the clip in the side of the main body, insert the telescopic rods into the groove and buckle closely (Fig. 4-D). 3. The height of rods is adjustable: loosen the clip, adjust it to the highest position and buckle closely (Fig. 4-C). 4. Put the transverse bar into the telescopic rods. It’s well installed when you heard a cracking sound (Fig. - Page 7 Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X Step 2 Install the steam hose 1. Insert the hose into the hole, rotate and tighten it. (Fig. 5-1) 2. Put sprinkler on the hook. (Fig. 5-2) Fig. 5 Step 3 Install the brush/pant hook Install integrated fabric brush or bottom bracket as following if needed: 1.
-
Page 8: Operation
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X OPERATION Step 1 Methods of filling up 1. Put the machine on the ground; take out the water tank (Fig. 7-1). 2. Unscrew the cap to fill the tank with water (Fig. 7-2 and 7-3). 3. Tighten the cap after filled with water (Fig. 7-4). 4. Put the full water tank onto the machine, and its outlet should aim at the right position. NOTICE: 1. Do not turn on the power before filling with water. 2. Please check the bottom drain well closed before first use. Fig. 7... - Page 9 Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X Step 3 Notice for use 1. Power on: The power light will flash and heard a sound of “bee” when plug in the product. The screen will not light; meanwhile the machine is on standby mode.
- Page 10 Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X — After chose the ‘cleaning’ mode, the machine will auto heat up to release the steaming, after Mixture in the water tank only have half, the machine will auto shut off. — Pull out the power line, after 30min, please makes sure that the mixture in the water tank is poured out. — When the machine continue working over 200 hours, the “ ” will twinkle, its means the machine remind you need to clean the dirt in the machine. Push the “...
-
Page 11: Ironing Methods
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X IRONING TIMER HUMIDIFY TIMER Fig. 11 IRONING METHODS – Leave the steam away to people. – Don’t touch sprinkler holes when the machine works long time, keep 20 cm away with body. – Hose will be getting hotter, it’s normal during ironing. – Easier removal for the fabric with less wrinkles. – Level the fabric before starting. -
Page 12: Drain The Water Reservoir And Stow The Machine
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X DRAIN THE WATER RESERVOIR AND MACHINE STORE 1. Power off. It’s normal for steaming after power off for a short while. 2. Unplug from the outlet. 3. Cooling down the machine for 30 minutes at least. 4. Open the water reservoir cover and drain the water in the tank. (Fig. 13-1) 5. Loose the down locknut, take out the rods. Flexible rods length is easy for... -
Page 13: Troubleshoots
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X FAULT DIAGNOSIS In this page, we have concluded all problems probably happened; please check the machine according to the information below (Tab. 1). If you can’t solve the problem by yourself, please contact with the local distributor. Tab. 1 PROblEM REASON SOluTION Fail to heat No power supply Connect power supply Switch off... -
Page 14: Circuit Diagram
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X CIRCUIT DIAGRAM Power panel Low water level detector Temperature controler Heater Fuse Fig. 14 MODELS & SPECIFICATIONS You may find the related product specifications on the actual merchandise for the model which is not included in this user’s manual. -
Page 15: Warranty And Service
Instruction VERTICAL FABRIC STEAMER TurboVapor 1950X WARRANTY AND SERVICE Guarantee Card PuRChASINg DATE: NAME/WORk PlACE PhONE ADDRESS MAChINE NO. ClIENT PuRChASINg CITY E-MAIl RECORD Please contact the distributor if more service or other information requested. Warranty is only for the normal usage in warrantee time limit on the basis of the buying receipt and warranty card. - Page 16 TurboVapor 1950X www.effektiv.ie Printed in Taiwan...
