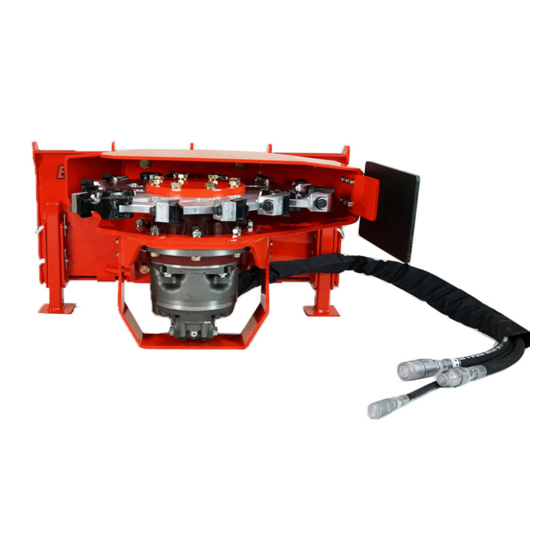

Vortex Stump Grinder
Operators & Parts Manual
For information and customer support – speak with your
dealer or visit our website www.eterra-usa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vortex Stump Grinder and is the answer not in the manual?

Questions and answers

Summary of Contents for Eterra Vortex Stump Grinder

  • Page 1 A Product By: Operators & Parts Manual Eterra, LLC. A Skid Steer Solutions, Inc. Company Bellingham, Washington For information and customer support – speak with your dealer or visit our website www.eterra-usa.com www.eterra-usa.com Copyright © 11/04/2019 [Eterra, LLC.]. All rights reserved.
  • Page 2 LLC. The information furnished herein is believed to be accurate and reliable. However, no responsi- bility is assumed by Eterra, LLC. for its use, or for any infringements of patents or other rights of third parties resulting from its use.

  • Page 3: Table Of Contents

    Eterra - Stump Grinder - User Manual - Rev 1.0 Table of Contents 1. Introduction ����������������������������������������������������������������� 4 1.1 Purpose ............................4 1.2 Scope............................4 1.3 Safety Marking ..........................4 1.4 General Safety ..........................5 1.5 Operational Safety ........................6 1.6 Maintenance & Transport Safety ....................6 2.

  • Page 4: Introduction

    1. Introduction 1.1 Purpose The Eterra Stump Grinders are designed to be used with skid steer loaders or excavators of the appropriate weight class. They are intended to be used by operators of all experience levels. To accomplish this feat, a very simple design has been used which is unlike anything else found in the industry.

  • Page 5: General Safety

    CAUTION – Unsafe practices which could result in personal injury if proper practices are not taken, or as a reminder of good safety practices. You, as the owner of a Skid Steer Solutions Vortex Stump Grinder are responsible for its safe operation and maintenance. You need to make sure anyone working with, maintaining or working around the stump grinder is familiar with the operation and maintenance of the unit.

  • Page 6: Operational Safety

    Eterra - Stump Grinder - User Manual - Rev 1.0 1.5 Operational Safety • Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting or unplugging. • Do not allow riders on the Skid Steer during field operation or transport.

  • Page 7: Operation

    2. Operation 2.1 Introduction The Eterra Stump Grinders were designed to be a highly effective grinding solution. If maintained properly, it will provide the owner with many years of service with no damage to property or people. If not maintained properly, the Stumper can easily injure people or property and will not last as long as the design allows.

  • Page 8: Theory Of Operation

    The Eterra Stumper is a hydraulically operated grinder that uses your existing controls and hydrau- lics to effectively grind stumps. The Eterra Stump Grinder consists of a direct drive grinder head that is mounted on a forward facing mount. The head is powered by connecting directly into the skid steer hydraulic auxiliary system.

  • Page 9: Hydraulic Connections

    2.6 Deflection Shield The Eterra Stump Grinders are fitted with a rubber deflection shield. These shields are provided to allow escaping material to be deflected downward and to the left side. If you remove the deflectors, a lot more material will be projected to the outside of the stump grinder making it very dangerous.
  • Page 10 Connect hydraulic hoses. • The Eterra Stump Grinders are designed for use with most modern skid steer loaders. It is pro- tected from over stress with a unique pressure bypass valve. When you turn your hydraulics on and off, the stump grinder will become a pump and try to put pressure back into the lines. Our valve allows the pressure to re-circulate back into the motor and the wheel to spin down slowly.

  • Page 11: Stump Grinder Use Guidelines

    Eterra - Stump Grinder - User Manual - Rev 1.0 3. Stump Grinder Use Guidelines 3.1 First Time Users Step One: Connect the stump grinder to your skid steer and check hydraulic connections. Connect hoses and check that the hoses run easily up to your connection points and are not kinked or pinched in any way.

  • Page 12: How To Grind Stumps

    Eterra - Stump Grinder - User Manual - Rev 1.0 3.2 How to Grind Stumps Align the cutter wheel with the right side of the stump (viewed from the Skid Steer control area) and position the machine so that it will cut about 4-6 inches off the top of the stump and 8-12 inches from the left side of the stump.
  • Page 13 Eterra - Stump Grinder - User Manual - Rev 1.0 3.3 Cutting Wheel Teeth and Installation Document: Eterra - Stump Grinder - User Manual - Rev 1.0 11/04/2019 Page 13 of 17...
  • Page 14 Eterra - Stump Grinder - User Manual - Rev 1.0 Document: Eterra - Stump Grinder - User Manual - Rev 1.0 11/04/2019 Page 14 of 17...
  • Page 15 Eterra - Stump Grinder - User Manual - Rev 1.0 Document: Eterra - Stump Grinder - User Manual - Rev 1.0 11/04/2019 Page 15 of 17...

  • Page 16: Maintenance & Parts Lists

    Eterra - Stump Grinder - User Manual - Rev 1.0 4. Maintenance & Parts Lists 4.1 Parts/Assembly Diagram ITEM PART NUMBER DESCRIPTION QTY. Skid Steer Mount ET-PDX-BM-03 Plate - PDX Mount ET-SG-FM-01 Foot Mount ET-SG-HOUSING-01 Welded Housing Fiber/Fabric ET-SG-RG-01 Reinforced...

  • Page 17: Warranty

    If you find physical defects in the materials or the workmanship used in making the product described in this document, Eterra, LLC. will repair, or at its option, replace, the product at no charge to you, provided you return it (freight prepaid, with proof of your purchase from the original reseller) during the 1 Year period after the date of your original purchase of the product.
