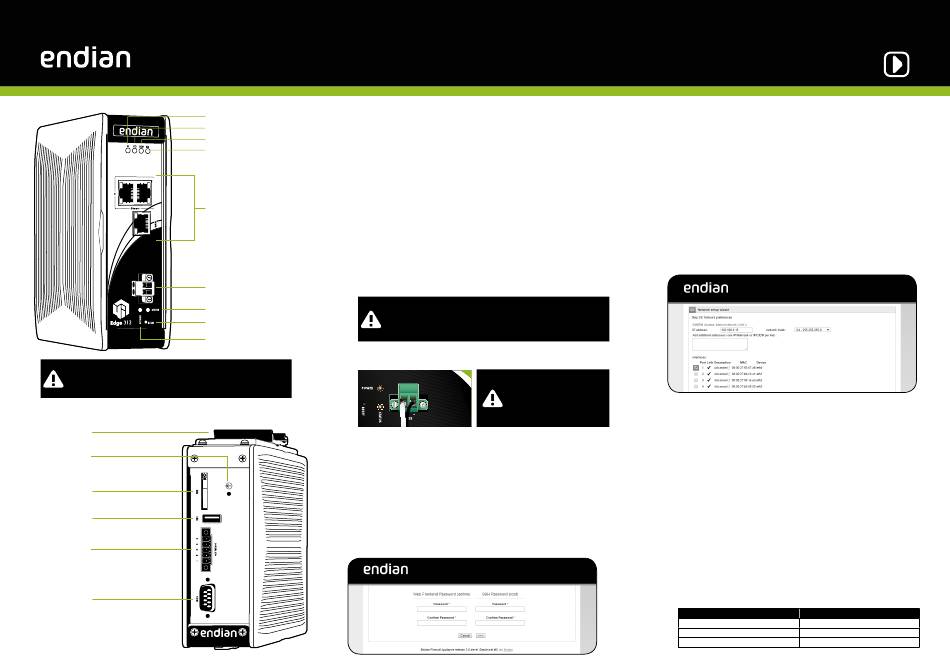

ENDIAN 4i Edge 313 Quick Start

For use in Pollution Degree 2 Environment.
CAUTION: FOR USE IN A CONTROLLED ENVIRONMENT.
ATTENTION: EN CAS D'UTILISATION EN ATMOSPHÈRE CONTROLÉE.
Rail Mounting
Earthing
Ground Terminal
SIM Card Slot
USB Port
Digital I/O Ports
COM Port
What You Have and What You Need
Digital Input LED
Digital Output LED
With your 4i Edge box you receive:
COM LED
• 4i Edge 313
SIM LED
• 5 pin terminal block for digital I/O
• 2 pin terminal block for power input
To install your 4i Edge 313 and protect your network you need:
• 24V DC power socket
Ethernet
• Ethernet switch (connected to your network)
10/100/1000 (RJ-45) Ports
• DIN rails
• Maximum surrounding air temperature 60 °C
Hardware Installation
1. Place your 4i Edge 313 on a steady surface or attach it to the DIN rail
2. Connect Ethernet port 1 of your 4i Edge 313 to your switch using a standard
patch cable (or a crossover patch cable for a direct connection to the Ether-
24V Power Input
net interface of your PC)
Warning! The default IP address of the unit 's GREEN interface is
Status LED
192.168.0.15. Make sure there is no other machine with this address in
Reset Switch
your network; should you have such a machine, turn it off or disconnect it
from the switch during the installation and initial configuration of the unit.
Power LED
3. Connect the DC power socket to the unit. The front view of the terminal block
connector is shown here.
Web Interface
1. Configure your PC Ethernet interface with an IP address belonging to the
192.168.0.0/24 subnet that is different from 192.168.0.15 (Endian IP
address)
2. Open your Internet browser (e.g. Mozilla Firefox) and go to address
192.168.0.15
• The system will redirect you to https://192.168.0.15:10443/ and ask you
for your preferred language and your time zone. After that you need to
accept the license agreement.
• The system will now ask you to choose 2 passwords (admin for web
interface and root for console).
4i Edge 313 Quick Start
Choose Your Internet Connection Mode
Now it is time to configure your Internet connection:
1. Choose your network mode
2. When choosing routed mode the uplink type must be specified:
Terminal Block: 105°C suitable
for 12-30AWG wire size,torque
Network Settings
value 5-7 lb-in.
1. Every network "area" is assigned to a color:
• GREEN local network (LAN). This is the safe area where your
trusted computers are.
• RED external network (WAN). Usually this is the interface connect-
ed to the Internet.
• BLUE wireless network. It is suggested to place the computers that
use wireless connections in this area. This kind of network is usually
not as safe as a wired one.
• ORANGE network for servers connected to the Internet (DMZ).
It is meant for systems that have to provide services to external
networks. This way, even if the security of one of these servers has
been compromised, the GREEN area will remain safe.
2. You can configure the appliance's Ethernet ports to your liking by
assigning them to the respective zones. Follow all the wizard steps
to configure the appliance and protect your network. Follow all the
wizard steps to configure the appliance and protect your network.
This is how the Ethernet ports are mapped to device names in the
setup wizard:
www.endian.com
• Routed: if you want to use the appliance as router in your network
• Bridged: if you want your appliance to act transparently with-
out having to change the existing network infrastructure
• No uplink: if the appliance should not act as a router but
require clients to address it directly
• Ethernet static
• Ethernet DHCP
• PPPoE
• Analog/UMTS modem
Ethernet port Wizard device name
Ethernet 1 lan1
Ethernet 2 lan2
WAN eth1
