Corintech EL-WiFi-TH Quick Start Manual

Thank you for purchasing a Corintech EL-
WiFi-TH sensor. This device measures the
temperature and humidity of the environment
in which it's situated and transmits data to a PC
via WiFi. This quick start guide provides basic
information to help you use your new product.

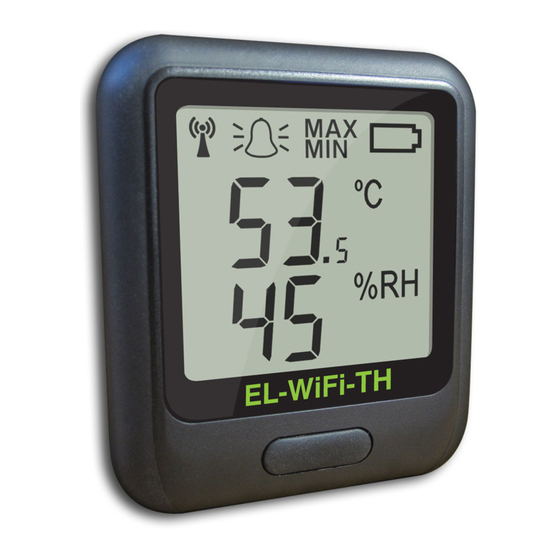

Getting to know your Sensor
Alarm Icon Max/Min Icon
Signal Icon
Temperature Display
Humidity Display
Screen Cycle Button
Your sensor will arrive partly charged but
ideally you should charge it for 24 hours before
use for optimum performance.
Your sensor is already reading temperature
and humidity but it will not be configured
or connected to your WiFi network until you
complete the product set-up.
Your sensor is set-up using a free software
package called EL-WiFi which is available at
Battery Icon
www.corintech.com/support.
downloads icon and select EL-WiFi for the
latest version of software. Once the software
Temperature Scale
is installed you're ready to set-up your sensor.
Click on the EL-WiFi software icon which is now
on your desktop to open the package and then
click on the 'Set-Up Sensor' button. You can
now follow the instructions in the software to
work through the different stages of set-up.
USB Port
Basic data can be viewed on the screen of the
EL-WiFi-TH.
Getting Started
To view this data press the button
to cycle through the different
screens.
Click on the
2. Max Recorded Values
Detailed information and graphical data needs
to be viewed via the EL-WiFi software package
Set-Up
already downloaded to your PC.
package and click on the 'View Sensors' icon.
Sensors collect data even when your PC is
turned off. When turned on again the sensors
connect automatically but this may take up to
15 minutes. This is temporarily displayed in
the software as 'Not Connected'
Viewing Sensor Data
1.Home Screen
OR
3. Min Recorded Values 4. Signal Strength 5. Data Syncing
Open the
