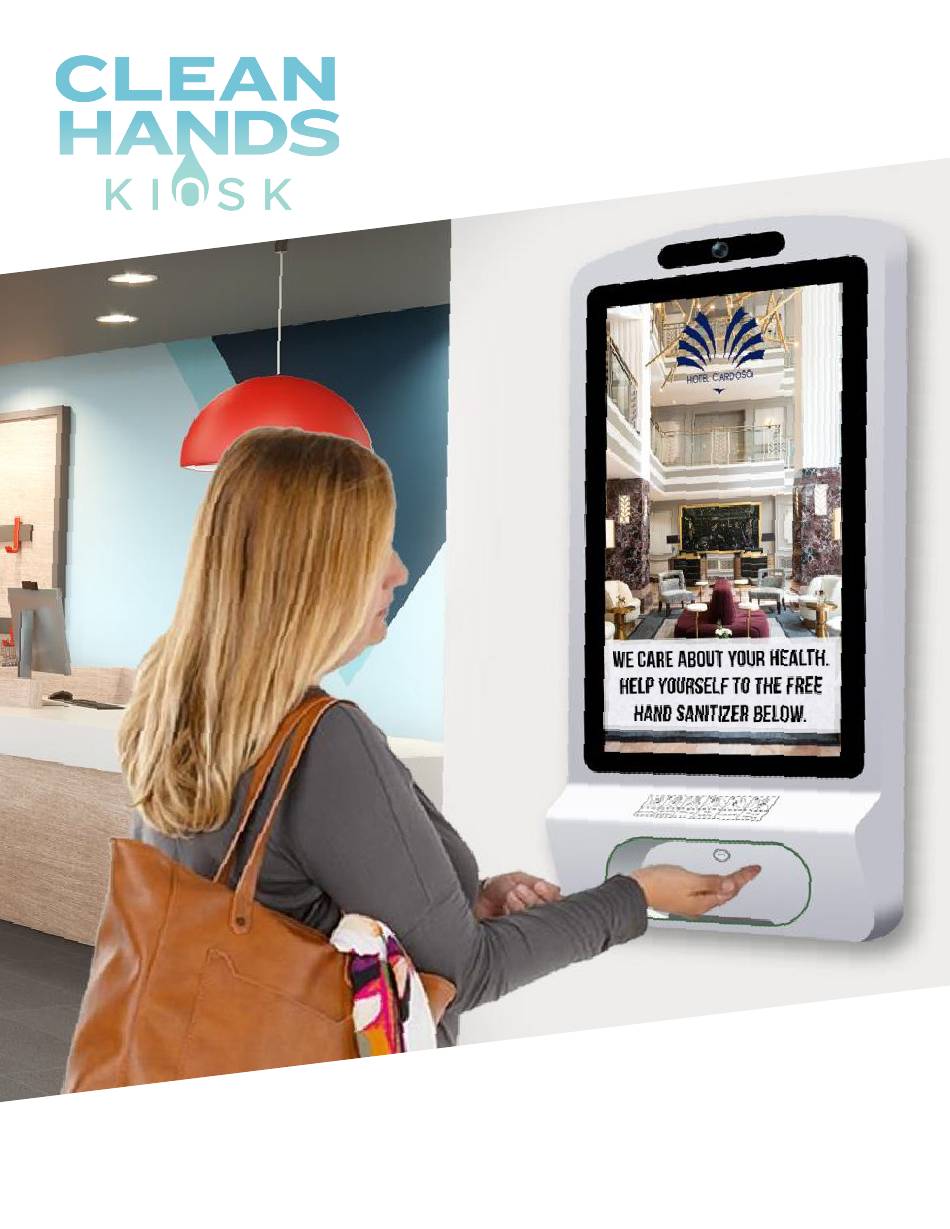

- Page 1 DIGITAL SIGNAGE HAND SANITIZER KIOSKS USER MANUAL (Standard Model)
-
Page 2: Table Of Contents
9. Text Setting 10. Display Setting 11. How to Make a Logo File 12. Play Log 13. How to Make a Playlist 14. File Requirements 15. Content Requirements www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 2 of 19... -
Page 3: Technical Specification
SUPPORTED MEDIA Video RMVB, FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264 Image PNG/GIF/JPEG Audio MP3, WMA, WAV GENERAL Material Metal Color White Certification CE/ROHS/FCC 24/7 Operation www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 3 of 19... -
Page 4: Parts And Mounting
2. Using two people, lift the display onto the bracket. 3. Screw the small fixing screw into the side of the bracket to lock the screen in place. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 4 of 19... -
Page 5: Steps For Mounting (Freestanding)
5) Lock Stand to Base tightly with the key NOTE – we strongly advise that the display stand is securely bolted to the floor prior to operation to avoid injury. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 5 of 19 www.TOPAZDIGITAL.com June 2020... -
Page 6: Using The Display For The First Time
Before use, please decide whether Liquid or Gel Sanitizer will be used. 4. Opening the Unit. Use the keys provided to open the two locks on the side of the unit and carefully open the display www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 6 of 19... - Page 7 If you are using Gel sanitizer, ensure that the button highlighted below is pressed OUT. Ensure the following dispenser head is being used for Gel Sanitizer: NOTE – to change the dispenser, simply unscrew and replace. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 7 of 19...
- Page 8 User Manual - Standard Topaz 22” hand sanitizer display User manual 7. Pour in your Sanitizer Unscrew the blue cap and carefully pour in your preferred sanitizer. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 8 of 19...
-
Page 9: Remote Control
Gold series content requirements REMOTE CONTROL Remote control NOTE - Remote control only works with door open and remote pointed inside the cabinet. www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 9 of 19... -
Page 10: Usb Plug And Play Media Player Instructions
Play Record Off/3s/5s/8s/10s/15s/20s（3s in default） Slide Mode On/off（off in default） Slide Time 3s/5s/8s/10s/15s/20s/25s/30s/40s/50s/60s（3s in default） Photo Rotate Normal/90 Degree/180 degree/270 Degree Min Volume 0 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 10 of 19 www.TOPAZDIGITAL.com August 2020... -
Page 11: Disk Auto Copy Function
4. Remove the USB.. Copy Type Manually update/Fully update/Overlap update/Append update Copy Device B2A（USB→SD/CF）/A2B（CF/SD→USB）, Please choose B2A for default options Time setting www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 11 of 19... - Page 12 Clock Text Color White/Black/RED/BLUE/YELLOW/GREEN/GREY(White color in default） Clock Position Right-TOP/Left-Top（Right-Top in default） Timer Mode Every day/Every week Timer Set Timer 0-Timer 4 www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 12 of 19...
-
Page 13: Text Setting
3S/5S/8S/10S/15S/20S/25S/30S/40S/50S/60S）(3S in default) Logo off Time (0S3S/5S/8S/10S/15S/20S/25S/30S/40S/50S/60S）(3S in default) Set Password Setup menu password, use VOL-，VOL+，|，|， button to make setup Key Lock On/off www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 13 of 19... -
Page 14: Display Setting
Color Temp RED 0~148（125 in default） Color Temp Green 0~148（128 in default） Color Temp Blue 0~148（135 in default） Noise Reduction OFF/Low/Middle/High/Default Aspect Ratio Just Scan/Auto/4:3/16:9/Panorama www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 14 of 19... -
Page 15: How To Make A Logo File
1. In the Basic settings menu, please switch Play Log to “on” mode 2. You will then find the LOG.TXT file in the root directory of memory card. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 15 of 19 www.TOPAZDIGITAL.com August 2020... -
Page 16: How To Make A Playlist
Status: play status (Succeed / Failure） How to make a playlist 1. Open program to see the below: 2. Click Add to setup the time as below: www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 16 of 19 www.TOPAZDIGITAL.com August 2020... - Page 17 4. Add in your content, and adjust the settings as required then select File -> Save 3. Save as PLYLST.PLY format and Copy this file into the root directory of the memory card. www.TOPAZDIGITAL.com August 2020 www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 17 of 19...
-
Page 18: File Requirements
1080 x 1920 @60Hz Max Color 24bit Max Framerate 30fps Max Stream USB 2.0 Device: 20Mbit/sec AUDIO ENCODE Sampling 32kHz, 44.1kHz, 96kHz Bit Rate 32kbps to 448kbps www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 18 of 19... - Page 19 8. Choose your Video Quality and click Export. 9. Choose the location to save to and press Export. www.CleanHandsKiosk.com/downloads OR, visit www.rotatevideo.org to upload your video to rotate. www.CleanHandsKiosk.com • 888.876.9832 Clean Hands Kiosk - Aug 2020 | Page 19 of 19...
