Dispense-Rite STL-2 Series Installation & Adjustment Instructions

INSTALLATION & ADJUSTMENT INSTRUCTIONS
The cup dispenser is completely assembled but will require a simple adjustment once it has been installed. A full sleeve
of cups will be required for this adjustment procedure.
If an extra spring was included in the box, you must first decide which spring to use for your application.
To dispense paper or plastic cups in a horizontal mounting position or foam cups in any mounting position use the
spring already installed inside the cup dispenser -- proceed to INSTALLATION.
To dispense paper or plastic cups in a vertical or angled mounting position the heavier compression spring will be required.
Remove the dispenser's end cap and replace the spring with the one packaged separately with the dispenser
(marked with an orange label) -- proceed to INSTALLATION.

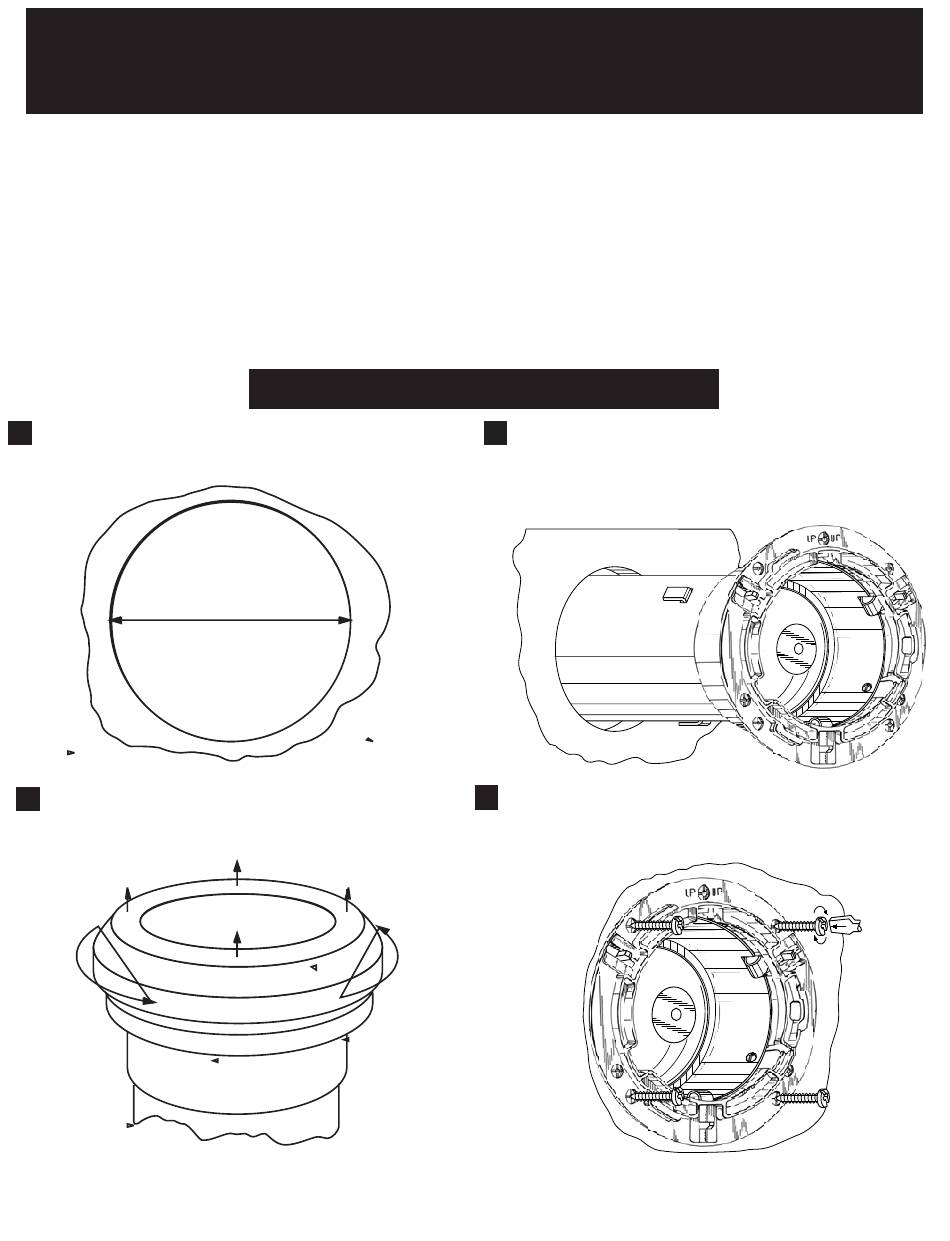

1. Cut a 5-1/4" diameter hole into the desired mounting
1
surface.
2. Rotate the cover ring counterclockwise and
2
remove from the dispenser.
DISPENSE-RITE
DISPENSE-RITE

STEP ONE - INSTALLATION

3
5 "
5-1/4"
16
132 mm
134 mm
Diversified Metal Products, Inc.
®
2205 Carlson Drive • Northbrook, IL 60062 • (847) 753-9595 • fax (847) 753-9648
www.dispense-rite.com • sales@dispense-rite.com
® STL-2 SERIES
3. Insert the dispenser into the mounting hole.
3
Align the "UP" mark to the top in a horizontal or
angled application and to the rear in a vertical
mounting application.
4. Drill four 9/64" pilot holes in the locations shown in
4
the illustration below. Fasten the dispenser with
the four #10 screws provided.
