Rockler Dust Right 53212 Assembly Instructions

Vacuum Harness Assembly Instructions

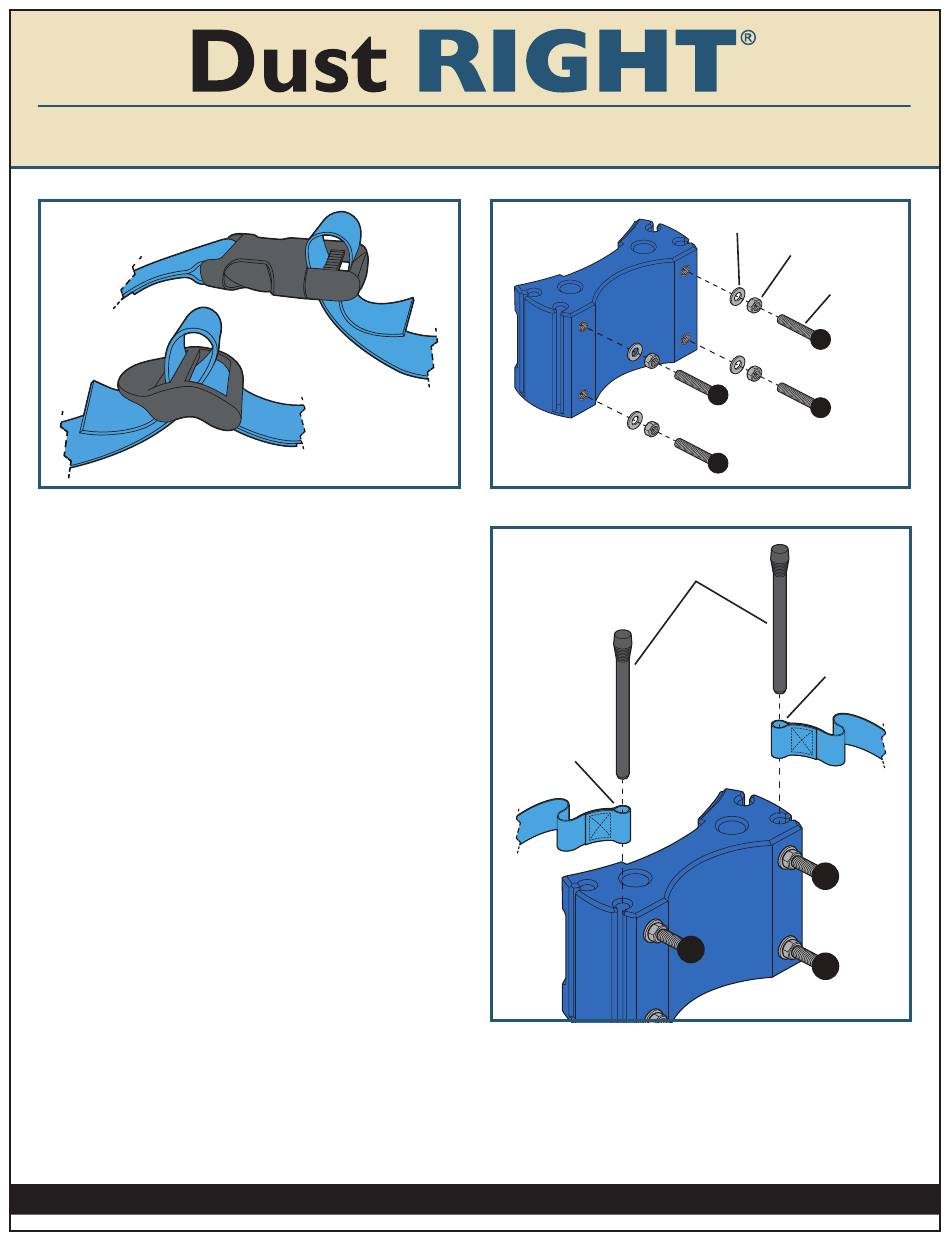

Fig. 1
1. Assemble the Straps as shown in Fig. 1.
2. Thread a Nut and Washer onto the post of each
Adjustable Foot and thread each Adjustable Foot into
the Body. Fig. 2. You will finalize the position of these
and tighten them later.
3. Buckle and lay out the Straps so that the strap adjusters
will face out when the Straps are installed.
4. Insert a Strap Pin in the loop at one end of one of the
Straps and then insert the Strap Pin in the round slot in
the Body, again making sure that the Strap Adjusters
will face out when the Straps are installed. Feed the
Strap into the slot and push down on the Strap Pin
until it snaps into place. Fig. 3.
5. Insert a Strap Pin in the loop at the other end of the
Strap and then insert the Strap Pin in the round slot at
the other end on the same side of the Body and snap
it into place. Fig. 3.
6. Repeat Steps 4 and 5 for the other Strap on the other
side of the Body.
7. Unbuckle the Strap on the side opposite the Adjustable
Feet and fit the Strap around your Dust Right
Separator (45556, sold separately). Buckle and adjust
the Strap to achieve a snug fit. The Straps can be
adjusted up and down along the Strap Pins if needed.
8. Unbuckle the other Strap and position your shop
vacuum against the Adjustable Feet. Thread the
Adjustable Feet in or out as needed to provide stable
contact with your shop vacuum. Tighten the Nuts.
PLEASE SEE OTHER SIDE FOR IMPORTANT SAFETY WARNINGS
Fig. 2
Strap Loop
®
Fig. 3
9. Buckle and adjust the Strap around your shop vacuum
to achieve a snug fit.
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or support@rockler.com
Washer
Nut
Adjustable
Foot
Strap Pin
Strap Loop
