Page 3: Generals

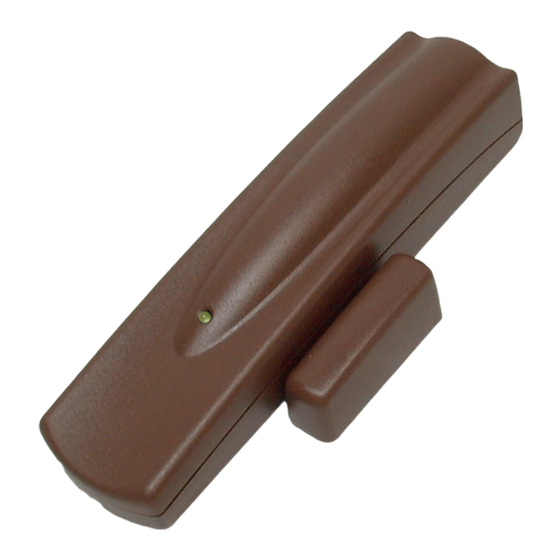

090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 1. GENERALS LUPUS2K and VOLANS2K are compact transmitters used for the control of fixtures or for perimetral protections. These transmitters can be integrated in wireless systems managed by VIDOMO2K and VICOMPACT2K control units (belonging to the NG-TRX system) or by other expressly compatible control unit models. - Page 4 LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 Model LUPUS2K VOLANS2K Average autonomy 5 years. 4 years. Note: for the calculation, 20 total transmissions per day and a supervision transmission every 20 min were considered. Zones Managed as channels. Managed as channels. Tamper zone with NC terminals.
-
Page 5: Mechanical Features
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 3. MECHANICAL FEATURES View of the transmitter plastic housing and of the external magnet. COUNTERSUNK COUNTERSUNK HOLES HOLES HOLE FOR CABLE FEEDING DIMENSIONS IN mm 4. HOW TO DISTINGUISH THE DEVICES The following picture shows the differences between the two transmitters. IDENTIFYING LABEL MOD. -
Page 6: Housing Opening And Closing
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 5. HOUSING OPENING AND CLOSING Perform the following basic operations in order to open and close the transmitter housing. Opening. Closing. MAKE SURE THE LED PROPERLY FITS IN THE HOLE ON THE COVER MAKE SURE THE TAMPER SPRING PROPERLY FITS IN THE BLOCKING POSITION ON THE COVER... -
Page 7: Installation
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 7. INSTALLATION The installer shall verify that no electrostatic charges are present upon housing opening; internal electronic boards and accessory components may be damaged by such charges. The same care shall be used during installation, updates and maintenance procedures. -
Page 8: Coverage And Sensitivity
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 Objects that can modify and/or reduce the range (example with a Villeggio NG-TRX control unit): THE CONTROL UNIT CAN ALSO MANAGE ACCESSORY DEVICES BELONGING TO STANDARD VILLEGGIO AND HELIOS SERIES TRANSMITTER WITH METAL GRIDS AND BUILT-IN MAGNETIC REINFORCED... -
Page 9: Mounting
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 9. MOUNTING Example of LUPUS2K transmitter mounting inside the housing of a roll-up shutter. One of the possible fixing positions is indicated in the picture on the right. Search the best position in order to easily replace the battery when needed: a possible position could be the external side of the box. - Page 10 LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 Example of general mounting, phase 2. HOOK THE BOARD IN TO THE TWO INSERT AND BLOCK THE CAP INDICATED CLIPS, WITH THE MAGNET. FOLLOWING THE NUMBERING. WARNING! DURING THE INSTALLATION OF THE VOLANS2K SENSOR, IT IS CONVENIENT TO REMOVE THE BOARD.
-
Page 11: Protection Against Removal From Mounting Surface
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 9.1 Protection against removal from mounting surface Compliance with EN 50131 regulation grade 2 requires that the device is protected against removal from the mounting surface. Install KSAS1013 kit (green) before fixing the detector base to the fixture. open pre-drilled area A cut the cable connector off feed the cable (from the free end) in the drilled hole... -
Page 12: Electrical Connections
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 10. ELECTRICAL CONNECTIONS 10.1 Board general view PIEZO SENSOR, RELATED TERMINAL AND WIRING (ONLY FOR VOLANS2K) USE THIS BUTTON AS SPECIFIED IN THE CODE THE PRODUCT IS PROVIDED WITH THE TAMPER BUTTON FOR ACQUISITION SECTION BATTERY AS STANDARD EQUIPMENT. -
Page 13: Allowed Wiring Types For Lupus2K Model
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 10.3 Allowed wiring types for LUPUS2K model Using the software application, you can fully configure wiring types in order to optimize the device operations for the required functions. The following screen is displayed in the “Zones” page, “Radio devices NG-TRX” tab corresponding to the selected zone. -
Page 14: Volans2K General Connections
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 10.4 VOLANS2K general connections THE PIEZO SENSOR IS LOCATED IN THIS POSITION PIEZO SENSOR POSITION. See Channel 2 software settings ON THE BOARD BOTTOM WARNING: PIEZO SENSOR WIRES. TO GET THE HIGHEST SENSITIVITY, SET THE HOUSING BOTTOM PERFECTLY IN CONTACT CONNECT THEM TO THE WITH THE SURFACE TO BE PROTECTED... -
Page 15: Code Memorization
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K You can configure the type for channels 2 and 3 independently, choosing between magnetic and roll-up shutter type. For the latter, you can define the wiring length (“Fast”: 1 m, “Fast 8 metres”: 8 m), the number of pulses and the timeout for the detection of a valid alarm. -
Page 16: Transmitter Configuration Via Software
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 12. TRANSMITTER CONFIGURATION VIA SOFTWARE The transmitter can be fully programmed by using BrowserOne v. 3.4.7 or higher with the module for the control unit v. 8.4.11 or higher. The control unit firmware must be 8.2.0.0 or higher. See the specific technical documentation for information on other expressly compatible control unit models. - Page 17 090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K Open the “System options” page, “Options NG-TRX” tab, where the general options of the NG-TRX devices are available. Here you can select the settings that also involve the LUPUS2K and VOLANS2K transmitters. Selection of the multi-channel reception (3 channels), also involving the default/preferential channel selection and the transmission strategy.
-
Page 18: Operating Modes
LUPUS2K - VOLANS2K - TECHNICAL MANUAL - 090001113 13. OPERATING MODES 13.1 Walk test - System test The Walk test condition can be activated via keypad, from the SYSTEM TEST » ZONE TEST menu. The beginning of the operating mode is indicated by three beeps of the internal buzzer and by the LED blinking. After exiting the Walk test mode, the internal buzzer will enter operating mode, whose configuration depends on browser programming. -
Page 19: Battery Replacement And Disposal
090001113 - TECHNICAL MANUAL - LUPUS2K - VOLANS2K 14. BATTERY REPLACEMENT AND DISPOSAL The LUPUS2K and VOLANS2K detectors use a Lithium 3.6 V 1.2 Ah battery mod. ER14250 or LS1425 (1/2AA). Replace this battery only with a new one of the same model. Observe the following insertion instructions: 1. -
Page 20: Table Of Contents
The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy Tel. +390499203333 - Fax +390499200306 - Technical Ass. +390499200426 - www.elmospa.com - international@elmospa.com...
