Nano Dimmer user guide. : Aeotec by Aeon Labs
Nano Dimmer user guide.
Modified on: Thu, 23 Feb, 2017 at 1:38 PM
Aeotec Nano Dimmer user guide.

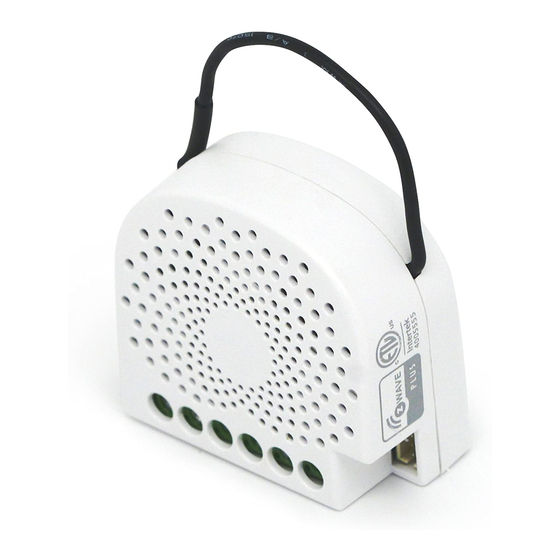

Aeotec Nano Dimmer has been crafted to power connected lighting using Z-Wave Plus
. It is powered by Aeotec's Gen5
plus)
Nano Dimmer
(http://aeotec.com/z-wave-light-dimmer-switch)
To see whether Nano Dimmer is known to be compatible with your Z-Wave system or not, please reference our
Wave gateway comparison
Dimmer
(https://aeotec.freshdesk.com/solution/articles/6000165398-nano-dimmer-technical-specifications)
viewed at that link.
Familiarize yourself with your Nano Dimmer.
https://aeotec.freshdesk.com/support/solutions/articles/6000162176-nano-dimmer-user-guide-
(http://aeotec.com/z-wave-gen5)
(http://aeotec.com/z-wave-gateways)
technology. You can find out more about
by following that link.
listing. The technical specifications of Nano
25/04/2017 15)43
(http://aeotec.com/z-wave-
can be
Page 1 sur 11
Z-

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aeotec Nano Dimmer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeon Labs Aeotec Nano Dimmer

Summary of Contents for Aeon Labs Aeotec Nano Dimmer

  • Page 1 Nano Dimmer user guide. Modified on: Thu, 23 Feb, 2017 at 1:38 PM Aeotec Nano Dimmer user guide. Aeotec Nano Dimmer has been crafted to power connected lighting using Z-Wave Plus (http://aeotec.com/z-wave- . It is powered by Aeotec’s Gen5 technology. You can find out more about plus) (http://aeotec.com/z-wave-gen5)
  • Page 2 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 Notes for the wire connection ports and terminals: L – Power input for live N – Power input for neutral OUT – Output for load COM – Common port for all External switches (S1 and S2) S1 –...
  • Page 3 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 Nano Dimmer installs behind a lighting switch or dimmer. It works with both 2-wire and 3-wire (with or without neutral) lighting setups, though each installation of Nano Dimmer is accordingly slightly different:...
  • Page 4 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 Note: Compatible with Inductive or Fan Motor loads under 100W. Wiring diagram of 2-Wire system Note: The “N” terminal should be connected to the “L” terminal when the Nano Dimmer is installed by 2-Wire system.
  • Page 5 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 All above wiring diagrams show that the Nano Dimmer uses 2-Way or momentary button switches as the external manual switch. The below diagram will show you that the Nano Dimmer uses the SPDT (Single-Pole Double-Throw) switches as the external manual switch.
  • Page 6 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 3. Install Nano Dimmer to the gang box. a. Live/Hot wire connection: Connect the Live/Hot wire to the “L” terminal on the Nano Dimmer. b. Neutral wire connection: Connect the Neutral wire to the “N” terminal on the Nano Dimmer.
  • Page 7 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 In 2-Wire system, since the power input terminals of Nano Dimmer just need to connect one power wire, so the terminal of “N” on Nano Dimmer should connect to the “L” on the Nano Dimmer.

  • Page 8: Quick Start

    Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 Note: 1) The gang box should be sized 3 2 2.75 inch/ 75 50 70 mm or larger, minimum volume 14 in / 230cm 2) Use flexible copper conductors only.
  • Page 9 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 1. Set your Z-Wave controller into pairing mode. 2. Press the Action Button on the Nano Dimmer, the green LED (non-secure indication) will blink to indicate the Nano Dimmer is entering into pairing mode.

  • Page 10: Advanced Functions

    Nano Dimmer through the Touch panel directly. Monitoring Energy Consumption. The Aeotec Nano Dimmer can report wattage energy usage or kWh energy usage to a Z-Wave control point when requested. If this function is supported by the control points, the energy consumption will be displayed in the user interface of the control points.
  • Page 11 Nano Dimmer user guide. : Aeotec by Aeon Labs 25/04/2017 15)43 energy monitoring are the Meter Command Class. Automatic reports are sent to association group 1, which is setup via the Association Command Class.) Please consult the operation manual for these control points for specific instructions on monitoring the Nano Dimmer.
