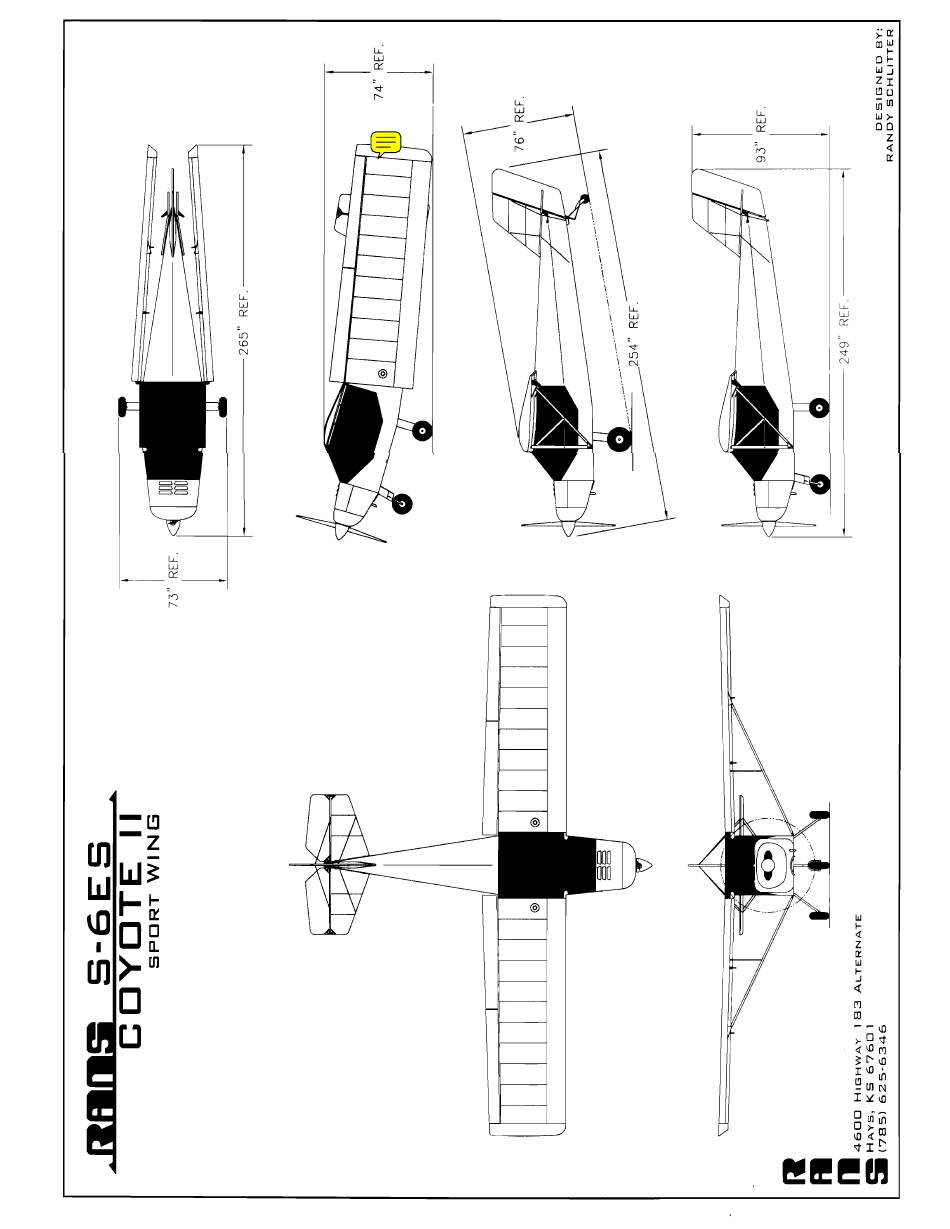

Rans COYOTE II S-6ES Technical Manual

Sport wing
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the COYOTE II S-6ES and is the answer not in the manual?

Questions and answers

rhonda downey
March 17, 2025

How many sq ft in covering for a rans coyote 2 S6ES in order to purchase paint

0

Summary of Contents for Rans COYOTE II S-6ES

  • Page 7 00-1 S-6ES COYOTE II SPORT WING TABLE OF CONTENTS System Section General Information Fuselage Main Gear Nose Gear / Tail Wheel Floorboard/Rudder Pedals/ Control Stick S-1 Firewall Aileron/Flaps Seat/Seat Belt Tailcone Doors Tail Brakes Engine Mount Engine Instrument Panel/Electrical Throttle Fuel System Windshield Cowling...
  • Page 8 00-2 RANS INC. 4600 Highway 183 Alternate Hays, KS 67601 Technical Support (785) 625-0069 actech@rans.com Parts Department (785) 625-6346 When calling Technical Support please have the following ready: ‘ Aircraft Model ‘ Serial Number ‘ Engine Model ‘ Your Aircraft Assembly Manual Note: Please make your questions precise and to the point so that we may assist as many customers as possible.
  • Page 9 00-3 RANS Aircraft Tool List This is a partial list of tools that would be helpful when assembling a RANS airplane. Hand Tools Pliers Safety wire pliers Needle nose pliers Electrical wire stripers Side cutters Pop rivet tool Aviation snips...
  • Page 10 Push to Talk Switch Radio Shack #275-644 Pushbutton Switch Local Avionic shops can wire your avionic harnesses for you. Wells Aircraft does the wiring harnesses for the RANS Fleet. Contact George at 620-663-1546 for details. WELLS AIRCRAFT* P.O. BOX 858 HUTCHINSON, KS 67504 *Authorized Bendix/King dealer Switches, circuit breakers, and other electrical parts are also available for RANS aircraft panels.
  • Page 14 00-7 BEFORE BEGINNING: Please read the manual cover to cover. This will speed up your build time considerable. GET ORGANIZED: Prepare your workshop and be sure that what goes in the shop door will be able to come out! KEEP IT CLEAN!: The pre-sewn skins can soil easily. Wash your hands, tools and work tables. You will notice many of the parts are marked with part numbers.
  • Page 104 010A-3 OPERATION AND CARE OF THE DOORS CAUTION: NEVER ALLOW FUEL TO COME IN CONTACT WITH LEXAN. If fuel is spilled on Lexan, spray with water or cleaner immediately to lessen the chance of crazing damage. Refer to the Windshield Section. Close doors while fueling to prevent spills from running off the wing onto the door.
  • Page 105 010B-1 S-6ES COYOTE II - DOOR ASSEMBLY HYDRAULIC DOOR LIFT INSTALLATION NOTE: Wings will need to be installed to final install the Hydraulic Door Lift. Slip the Aluminum Door Doubler into the aft end of the Door Frame. Position it flush with the top of the frame.
  • Page 121 013-1 S-6ES ENGINE MOUNT GENERAL INSTRUCTIONS Select the proper hardware and components depicted on the parts page. Assemble the barry mounts and plates as illustrated. Torque these bolts 5 to 7 ft.lbs. Bolt on the propeller (see engine for correct hardware). NOTE: Some installations have large spinners, refer to Spinner Installation for details to complete prop attachment.
  • Page 172 022A-1 TRAILING EDGE SPAR ASSEMBLY NOTE: Assemble both spars the same, but make a LH and RH. Select the necessary parts as shown in the parts drawing. The trailing edge spar comes with all holes pilot drilled. The final hole sizes are called out during assembly.
  • Page 180 022D-1 WING RIB ASSEMBLY & INSTALLATION NOTE: Leading Edge Wraps and Tip Skins are riveted with 1/8” Stainless Steel Flush rivets. A suitable 1/8” Dimpling Tool and Counter Sink will be required. Aircraft Spruce has an inexpensive 1/8” Pop Grip Dimpler. A corrosion protection coating is recommended between the Ribs and Rib Clips.

  • Page 193: Wing Tip Installation

    022F-1 WING TIP INSTALLATION The Wing should be covered with Aileron attached to properly install the Wing Tip. Trim the Thermo-formed wing tips to just before the material base radius. Place 2” masking tape inboard of the #40 mounting holes in the Upper & Lower Tip Skins. Mark a line inboard on the tape, aligned with each hole.
  • Page 215 023B-2 Pre-covering checklist: All Tubes, Gussets and Fittings, bolted, riveted and secured. Gear Set Taildragger - Anti-crush Bushings - JB Welded in Bottom Longeron Optional Antenna Mount Plate Installed Floorboard Fit-up Oriented correctly – narrow end forward Bolted in Fuselage Nut Plates Installed Floorboard &...
  • Page 231 024-1 LEVEL AT DOOR BOTTOM ACCEPTABLE C.G. 62.5" TO 73" FROM DATUM O. DATUM = BACKSIDE OF PROP; AIRCRAFT IN LEVEL ATTITUDE. (LEVEL REFERENCE TO DATE WEIGHED BOTTOM OF DOOR.) ENGINE TYPE C.G. CONDITION EMPTY WEIGHT MTOW 1320 lbs. (912UL /912ULS) ITEM WEIGHT MOMENT...
  • Page 232 024-2 LEVEL AT DOOR BOTTOM ACCEPTABLE C.G. 62.5" TO 73" FROM DATUM O. DATUM = BACKSIDE OF PROP; AIRCRAFT IN LEVEL ATTITUDE. (LEVEL REFERENCE TO DATE WEIGHED BOTTOM OF DOOR.) ENGINE TYPE C.G. CONDITION EMPTY WEIGHT MTOW 1320 lbs. (912UL /912ULS) ITEM WEIGHT MOMENT...
  • Page 234 024-4 Move the rudder. Inspect as in Step #8. Look over the nosewheel. Is it properly inflated? Check the steering rods. Does the nosewheel move freely when the rudder moves? Are all the control surface hinge points well lubricated and moving freely? Repeat Step #8.

  • Page 235: Engine Operations

    024-5 FUEL SYSTEM OPERATIONS SIGHT GAUGE The sight type fuel gauge that is standard with this model has been reported to give erroneous readings. The sight gauge can indicate full fuel when the actual fuel level can be near empty. The cause of such incorrect readings may be the result of an improper installation.
  • Page 236 024-6 Check the throttle action. There should be no sluggish response from mid range to the top end. Do not rapidly pump the throttle. This is not a motorcycle! It is an airplane with a big fly wheel, the propeller. Jockeying the throttle will only accelerate wear on the engine and make its reliability questionable.
  • Page 237 024-7 INSPECTION OF ENGINE SYSTEMS Cowling -Check for: Missing screws Loose bolts Cracked glass Cracked mating flange General condition Remove the Cowling and inspect the following: -Check for: Cracked welds Missing or bent bolts and loose nuts Elongated holes or cracks at mount plates Deteriorated rubber mounts General condition Carburetor and Throttle Quad:...
  • Page 238 024-8 S-6ES COYOTE II OPERATIONS PRE-FLIGHT: Refer to the pre-flight section of this manual. STARTING: Refer to the engine operations section of this manual. TAXIING: Taxiing the Coyote II is easy even in a 25 mph wind. The direct linkage to the steerable nosewheel enhances the ground handling making tight turns a snap.
  • Page 239 024-9 TURNS: The Coyote II banks quite easily with a minimum of adverse yaw. Lead into turns using a little rudder. Avoid steep banks until comfortable with the ship. Due to the quick turn rate, steep 360 degrees or 720 degree turns can be disorientating.
  • Page 240 024-10 SPECIAL OPERATIONAL CONSIDERATIONS POSITION IGNITION SWITCH Up is for on, down is for off. FLIGHT MANEUVERS THAT INDUCE NEGATIVE LOAD may cause fuel leakage through the fuel vent and momentary fuel starvation due to the negative G's on the float style carburetor. Avoid low level abrupt pull-ups followed by an abrupt dive.
  • Page 241 024-11 SPECIAL SECTION ON FLAP OPERATIONS IN GENERAL The flap equipped Coyote II has a wider speed envelope but this is only realized through proper flap usage. Please take the time to become thoroughly familiar with the aircraft and procedures before attempting any maximum performances, take-offs or landings.

  • Page 242: Disassembly For Transport

    024-12 TRAILERING & TOWING PRECAUTIONS When towing long distances on an open trailer remove the tail surfaces. Highway speeds and gust loads can cause undue loads on the tail group. Make certain the wings and tail components are secure and will not catch the wind underneath. Tie down the wing at the ends about 2 ft.

  • Page 243: Maintenance

    024-13 MAINTENANCE COVERING: The Coyote II is covered with a 3.9 oz. per square Dacron Sailcloth. This dyed to color material will last several years if the plane is stored out of direct sunlight while not in use. Ultraviolet light is the main reason for loss of skin strength.
  • Page 244 024-14 GENERAL DESCRIPTION AND FLIGHT PROPERTIES DESCRIPTION: The Coyote II is a high wing, tractor, mono plane with tricycle landing gear. It is strut braced with aluminum tubing and welded 4130 steel construction. It has Dacron sailcloth pull on covers. The design features a roll cage construction, an enclosed cabin when side doors are installed, shock absorbing Tapered Steel type gear, steerable nosewheel, ailerons, and flaps.
  • Page 245 024-15 KEEPING YOUR 2-CYCLE ROTAX ENGINE CARBON FREE The Rotax manual as well as the following information outlines some excellent procedures to assure reliable operations. However, in the real world the method suggested for carbon removal is only a half-way measure. True removing the cylinder heads and scraping the dome and piston top will prevent carbon from fouling the plugs.
  • Page 246 024-16 READY TO FLY CHECKLIST FIREWALL FORWARD: All mount bolts tight? Gear Box serviced and safety wired? Muffler springs safety wired and siliconed? Muffler extension installed? Overflow bottle installed & plumbed? Radiator hose clamps tight? High pressure cap (15-18 lbs) installed? Radiator drain safetied? All electrical connections made and heat shrunk? Oil bottle installed &...
  • Page 247 The tachometer supplied with your RANS kit is equipped with a calibration knob; refer to the manufacturer’s instructions. Once satisfied with the tachometer, run the engine with the throttle fully open; be certain the tail is tied down and the main gear is chocked.
  • Page 248 FAA certification, the fruit of which is fleets of identical aircraft for which specific checklists, procedures and performance figures may be published. This section includes much information on the operation, limitations, and performance of RANS aircraft; however, the nature of kit-built aircraft makes it impossible to publish specific checklists and procedures applicable to all examples of a particular model.
  • Page 335 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP 1. THROTTLE 5. REGULATOR 2. BLADE TYPE FUSES 6. SAFETY WIRE RADIATOR DRAIN VALVE AND THROTTLE CABLES 3. SEALANT, USE SILICONE 7. SEALANT, USE SILICONE 4. STARTER SOLENOID 8. STAND OFFS ARE HANDY TO ROUTE WIRE BUNDLES I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
  • Page 336 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP OIL COOLER INSTALLATION 1. LOC-TITE ALL OIL COOLER MOUNTING 3. ANTI-CHAFE, USE COOLANT HOSE SCRAP 2. FOAM RUBBER PADS COOLER I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
  • Page 337 S-6ES – 912 INSTALLATION – 80/100 HP 1. SAFETY WIRE CHOKE 2. CHOKE WIRE 3. LOC-TITE SCREWS 4. BRAKE FLUID RESERVOIR 5. FILLER TEE 6. FUEL FILTER 7. HEATER WRAP 8. BLEEDER SCREW (BEHIND HOSE) 9. FIRESLEEVE ON FUEL LINE IS A GOOD IDEA 10.
  • Page 338 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP LANDING LIGHT INSTALLED ON 912 1. ECONO LANDING LIGHT FROM WAL-MART, BLAZER PROJECTOR BEAM FOG LAMP SYSTEM (C4072K) I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
  • Page 339 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP 1. CLEARANCES ARE TIGHT SOME DIMPLING OF EXHAUST TUBE MAY BE REQUIRED 2. 1/8” DIAMETER STAINLESS STEEL RIVET SECURES OIL TANK MOUNT IN POSITION I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
  • Page 340 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP 1. VENTURI BULB 3. COOLANT OVERFLOW BOTTLE 2. METAL OVERFLOW TUBES 4. MUFFLER MOUNT, NOTE: CHANNEL FLANGE POSITION I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
  • Page 341 S-6S & S-6ES – 912 INSTALLATION – 80/100 HP 1. RIVET HOLDS POSITION OF CLAMP 2. MUFFLER IS CLOSE BUT WILL CLEAR I:/ENGINEER/KIT/MANUALS/S6ES/S6-ES_912_INSTALLPICS.DOC 10/25/05...
