OWNER'S MANUAL

LSB3

3-Channel Passive Soundbar

Table of Contents

Need help?

Do you have a question about the Protege LSB3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proficient Protege LSB3

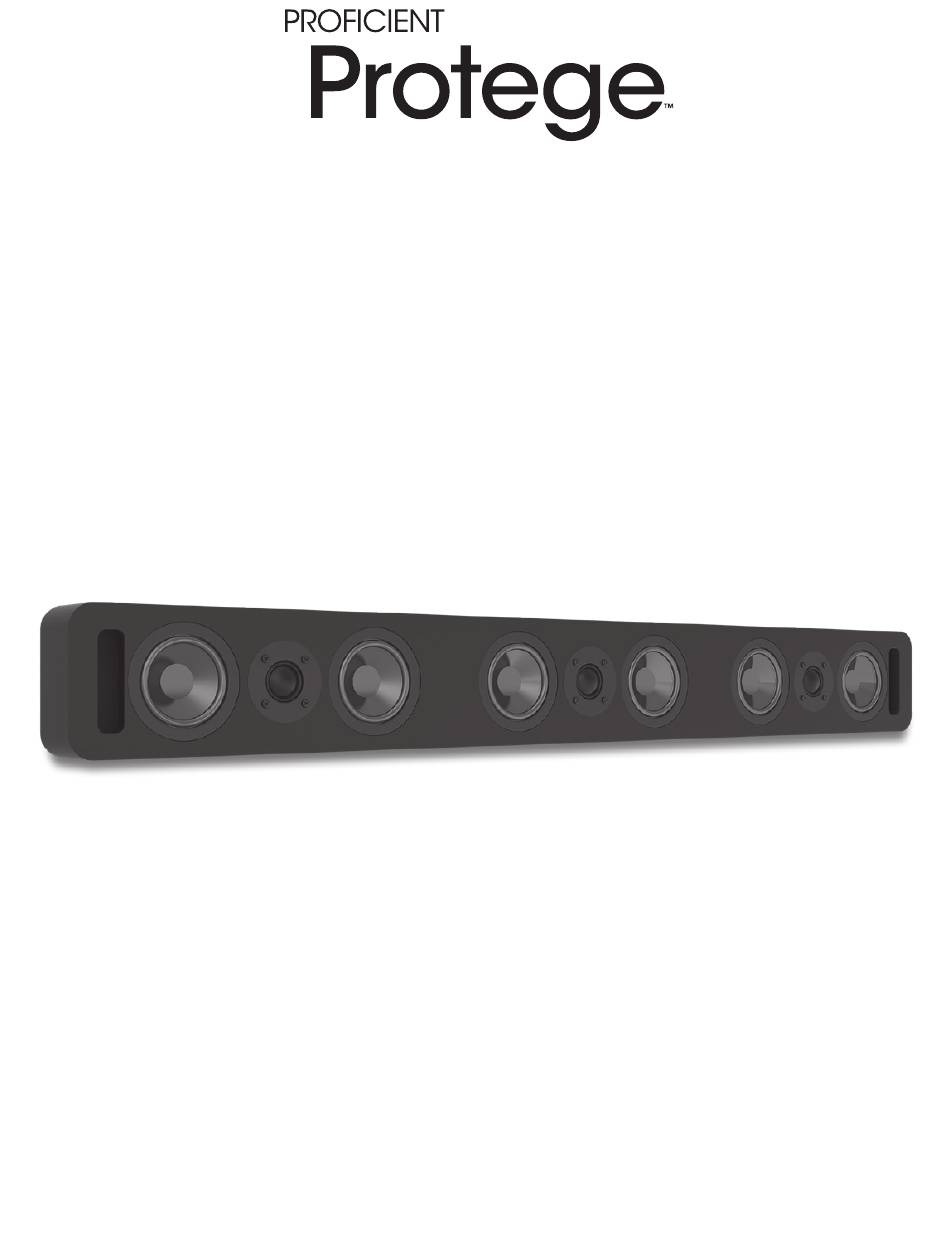

Page 1 OWNER’S MANUAL LSB3 3-Channel Passive Soundbar...
Page 2 Wall Mounting An included Proficient-designed mount makes it easy and quick to attach the LSB3 to a wall. It is designed to screw into wall studs mounted 16 inches on-center, and allows you to slide the LSB3 horizontally so it lines up perfectly with the center of the TV.
Page 3 SPEAKER PLACEMENT Determine the Ideal Listening Zone The area where the user will most likely be sitting when listening to the speakers is the Ideal Listening Zone, and the LSB3 should be placed to optimize the sound for this seat. Ideally, the LSB3 (and the video screen) should be centered on the same axis with the Ideal Listening Zone—i.e., the LSB3’s center tweeter should be directly in front of your favorite listening seat.
Page 4 Using the Included Wall-Mount Bracket The included wall-mount bracket makes it easy to attach the LSB3 to a wall built with standard 16-inch-on- center studs. To mount the bracket, use a stud finder to locate the two wall studs closest to the horizontal center of the video screen.
Page 5 Diagram 4 Line Up Soundbar with Wall Mount Diagram 5 Press Down to Firmly Seat Soundbar onto the Bracket Diagram 6 Slide Soundbar Horizontally to Center with Video Screen...
Page 6 SPEAKER CONNECTIONS 1. Use 16AWG (min) 2-conductor stranded speaker wire for speaker connection. 2. Strip approximately 1/2 to 3/4 of an inch off the ends and twist the strands together so there are no loose ends that can cause shorts. 3.
Page 7 Matte Black Rounded Corner MDF Cabinets Grille: Removable Black Cloth Grille w/Neo Magnets Wall Mount: Proficient-Designed Horizontally Adjustable Wall-Mounting Bracket Dimensions (H x W x D): 53/16" x 3913/16" x 23/4" Features and specifications are subject to change without notice.
Page 8 5919 Sea Otter Place • Carlsbad, CA 92008 • 800.472.5555 • Fax 707.283.5901 • proficientaudio.com ©2018 Nortek Security & Control, LLC. All rights reserved. Proficient® is a registered trademark of Nortek Security & Control, LLC. Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories.
