BK Electronics BSBP 200 Instructions

British Sub Bass Panel 200 Watt
INPUT
8
230V
50-60Hz
T2AL
9

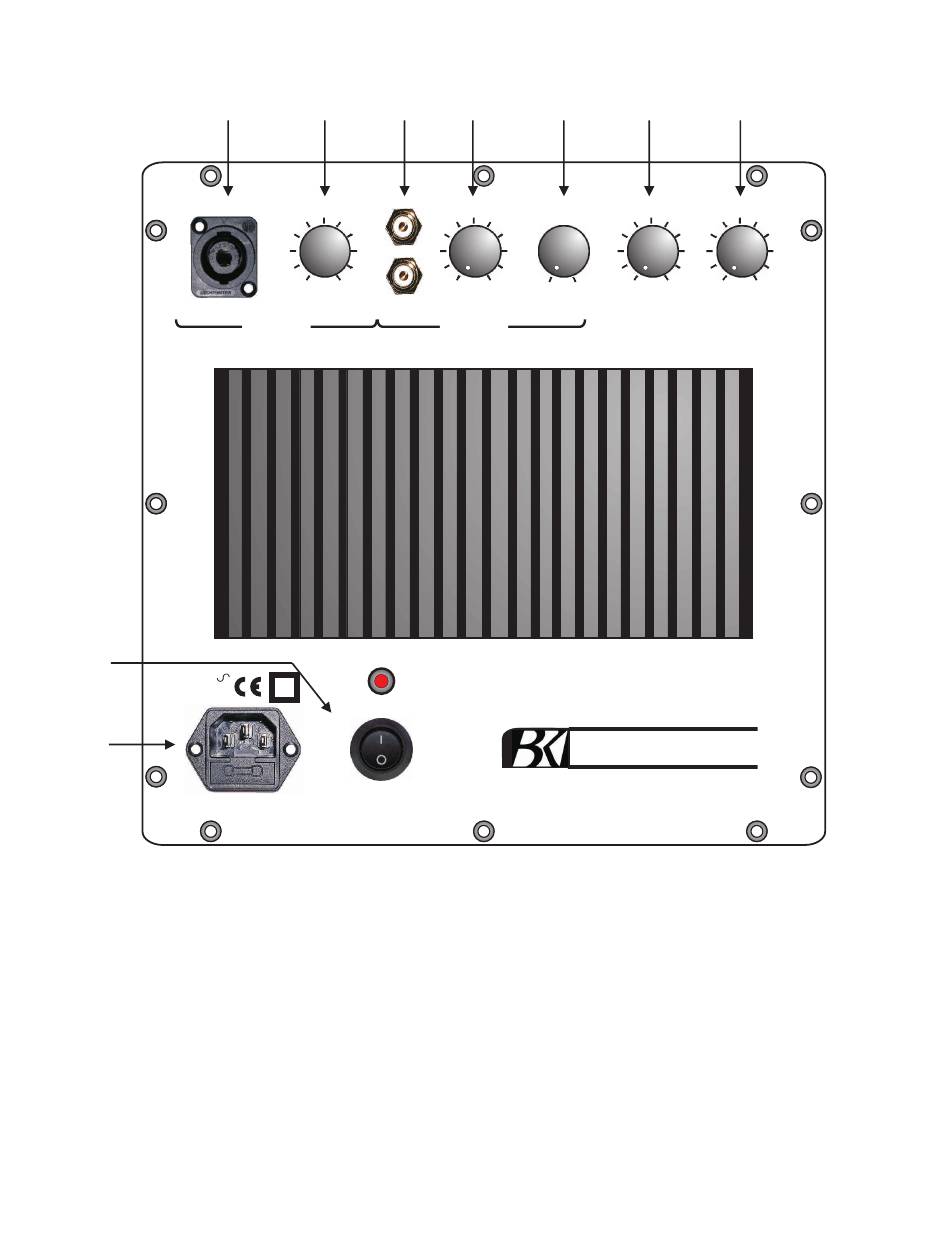

1) High Level Input connector for connection to amplifier output
2) igh Level Gain Adjust
3) Low Level Input RCA connectors for connection to pre-amp output, Dolby output or
other dedicated sub outputs
4)Low Level Gain Adjust
5)Low Level Filter Bypass - In = Filter in operation - Out = Filter Bypassed.
L.F.E. Position the filter is opened wide to allow the optimum performance from processor
6)Frequency Contour, set up so as to integrate with main loudspeakers.
7)Continously variable phase control
8)Power Off/On Switch
9)IEC mains input connector. (Fuse Drawer contains spare 2AT fuse)
Instructions
1 2 3
(Mono)
R
L
Min Max
GAIN INPUT
HIGH LEVEL
ON
OFF
t
4 5
Min Max In Out Min
LFE 40Hz
GAIN FILTER
LOW LEVEL
BSBP 200 Sub-Bass Amplifier
Designed and manufactured by :-
www.bkelec.com
+44 (0)1702 527572
TO AVOID RISK OF ELECTRIC SHOCK DO NOT REMOVE
PANEL NO USER SERVICEABLE PARTS INSIDE. REFER
T O Q U A L I F I E D S E R V I C E
6 7
Max
O
O
120Hz
0 180
FREQUENCY PHASE
B.K. Electronics
Southend-On-Sea
Essex. England
P E R S O N N E L .
In the Out /
