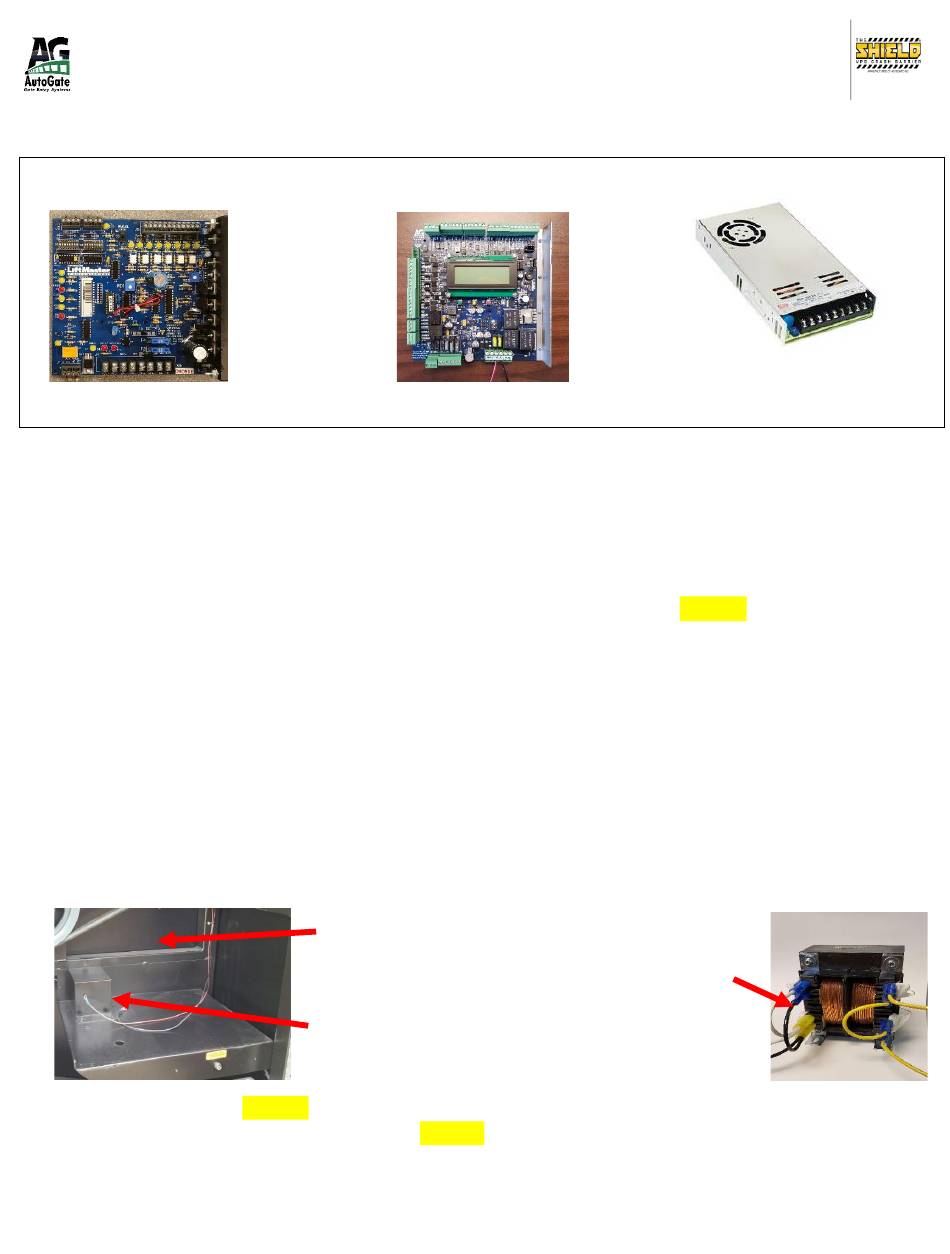

RETROFIT INSTRUCTIONS TO INSTALL A GENESIS BOARD REPLACING A LIFTMASTER BOARD
LIFMASTER BOARD
Congratulations on your purchase of our new state of the art GENESIS control board
kit for replacing the LiftMaster control board which has been discontinued.
PLEASE READ THESE INSCTRUCTIONS THOURHLY BEFORE PROCEEDING.
•
GENESIS Control Board (w/terminal blocks)
•
RSP-320-27 Power Supply w/(2) mounting screws & (2) Mounting brackets
•
6'
RED
& BLACK wire (power from the power supply to the board-replaces YELLOW wires)
•
6' BLACK & WHITE AC Power wires 14 gauge (power from AC box to power supply if needed)
•
6'
GREEN
ground wire
•
DC Troubleshooting light w/4' of 24 gauge 2-conductor
•
10Amp Glass fuse (Replaces the AC 3Amp in the face of the Battery Tray)
•
Miscellaneous wire connectors and cable ties
1. Turn off all power (AC at Outlet Box & DC Toggle switch under Control Box). For extra precaution, turn off
the main dedicated breaker feeding the operator outlet box.
2.
CAUTION:
Additional accessories may have been installed and powered off the AC transfomer by a 3
party! These will need to be handled by the onsite technichian doing the upgrade.
3. Remove transformer cover. Unplug the wires, unbolt, remove transformer, discard or recycle.
4. When removing the YELLOW transformer wires and discarding, also remove the small
going to the AC POWER INDICATOR LIGHT (If used). These wires will be re-connected on the GENESIS
board "MAIN POWER LOSS/LOW BATTERY" & COM (See P3). The AC Indicator light will be replaced with a
DC LED FAULT light. It will FLASH where there are issues. Review the GENESIS Board menus for more
details on what causes the light to flash and the different types of flashing.
AUTOGATE INC.
GENESIS BOARD
Included in your kit are the following items:
Optional location for
new power supply. Fan
facing out. Secure on top
tubing to back skin.
Remove Transformer
Cover & Transformer.
RED
& BLACK wire
Transformer: Remove
wires, Unbolt, remove
transformer discard or
recycle.
RSP-320-27 POWER SUPPLY
rd
RED
& BLACK wires
Advertisement
Table of Contents
Summary of Contents for AutoGate GENESIS
- Page 1 “MAIN POWER LOSS/LOW BATTERY” & COM (See P3). The AC Indicator light will be replaced with a DC LED FAULT light. It will FLASH where there are issues. Review the GENESIS Board menus for more details on what causes the light to flash and the different types of flashing.
-
Page 2: Accessory Input
ACCESSORY INPUT MOTOR & POWER Bolts 15. Remove the LiftMaster board. Align the GENESIS board over the stand-offs and push down to lock in place. A small screwdriver may be used to pry open the lock tabs on the stand-offs. - Page 3 LM board will be put into REV/INT. If there is a wire in the #6, move it to the CLOSE input on GENESIS. Normally, the FE/BACK & SHADOW are not used. If they are, use the same input as marked on GENESIS.
- Page 4 GENESIS board. This is the UL alarm wire. The ground for the alarm is already wired to the ground on the auxiliary power strip to the left of the board. If the there is an auxiliary limit switch kit, the power wires for this will be removed from the LM BATTERY terminals and attached to the 24 VDC &...
-
Page 5: Information Tab
Check your board programming for to make sure you are set for LIMIT SWITCHES and your MONITORED INPUTS are all set to OFF. If not, you will need to contact AutoGate for the KEY code to change those status’s. - Page 6 GENESIS CONTROL BOARD OVERVIEW: The GENESIS board has a 4 line 20 characters per line LCD backlit screen. At power up, the display will show the AutoGate and GENESIS branding, along with the program version number and the current time. After 5 or 6 seconds, this will then shift to the HOME screen, or base operational data shown below under MAIN Screen.
-
Page 7: Timer Settings
GENESIS CONTROL BOARD CALENDAR/TIME (cont.) Set the time, date and day of the week. >01:14:58 am 03/21/19 Th TIMER SETTINGS TIMER SETTINGS: 4 Sub Menus to set OPEN & CLOSE times, MOTION ALARM times and 7-DAY TIMERS Timer Settings AUTO CLOSE TIME: Default is ON from 1 to 120 seconds, OFF requires a CLOSE command. -
Page 8: Operator Control
When retro fitting, set speed to 110% for both OPEN and CLOSE. 110% LIMIT SWITCHES: Default is “NOT USED”. You will need to contact AutoGate if your board was not set >Limit Switches: at the factory to LIMIT SWITCHES before you go received it. Choices are: NORMALLY OPEN, Not Used NORMALLY CLOSED, HALL A &... - Page 9 Choices are: 10K (10,000 Ohms Resistance) or 2-Wire. Options (The GENESIS board supports a maximum number of (2) OPEN, (2) CLOSED & (2) programmable inputs. Contact AutoGate if additional inputs are required). Board is programmed for a Monitored Input. If it is missing, gate will not operate until the...
-
Page 10: Input Options
Hold Open-Opens gate: Holds open until Input removed (will cause a FLASHING ALERT warning screen) Emergency Secure-Gate will NOT open (will cause a FLASHING ALERT warning screen) Emergency Close-(Custom programmed, contact AutoGate for this option) WARNING! HOLD OPEN Aux 1 Pulse-Pulses Auxiliary 1 contacts IS ENABLED, gate... - Page 11 GENESIS CONTROL BOARD AUXILARY OUTPUT OPTIONS (cont.) OUTPUT QUICK SET OUTPUT 1 & 2: 4 Quick Set options for flashing lights: >Output 1 Quick Set: Choices are: Always Flashing Output 2 Quick Set: No Preset: Off Flashing Closed Always Flashing: Light Flash 24/7 Closed &...
-
Page 12: Maintenance
Additional VOLTAGE WARNINGS FAULTS & Screens: AC is missing: There is no AC voltage detected on the GENESIS board at the AC INPUT. OVER VOLTAGE: The voltage at the AC INPUT measured over the 30V in normal mode. MOTOR OVER-CURRENT: The motor current exceeded the high set point. - Page 13 OVER-CURRENT LEVEL: Adjusts the Internal Inherent Amp current level for the motor. On model >Over-Current level: 2490 systems with the GENESIS board and the LPS SENSOR, this will not be in effect. When using 20 Amps LIMIT SWITCHES, the OVER-CURRENT LEVEL must be set for obstruction/entrapment sensing. If the board senses an OVER-CURRENT it will reverse the gate on the first activation.
- Page 14 INTERNAL EEPROM Internal EEPROM fault detected LPS SENSOR NOT DETECTED LPS Sensor is not detected by the GENESIS board (not applicable in LIMIT SWITCH more) MAITNENANCE REQ’D. Maintenance required, hold stop button and press Jog/Select to clear...
