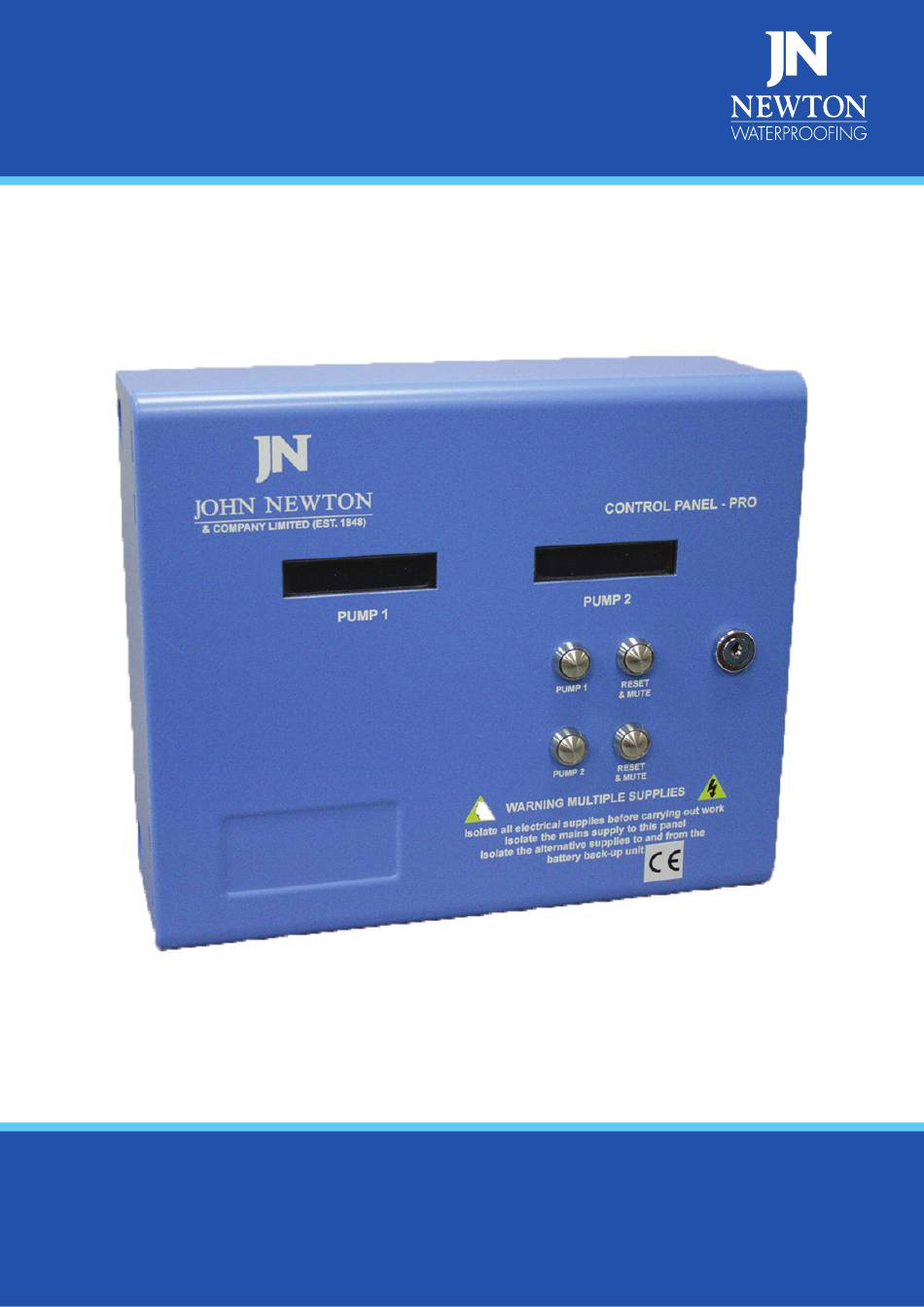

NEWTON CONTROL PANEL-PRO (CP2 & CP7)
Multi-Function Pump Control and Monitoring Panel
Operational Manual
Rev 3.3 - 19 July 2017
© Newton Waterproofing Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Control Panel-Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Newton Waterproofing Control Panel-Pro

  • Page 1 ® Pumps, Pumping Systems and Ancillaries NEWTON CONTROL PANEL-PRO (CP2 & CP7) Multi-Function Pump Control and Monitoring Panel Operational Manual Rev 3.3 - 19 July 2017 © Newton Waterproofing Systems...
  • Page 2: Table Of Contents

    Our liability will be no more than the amount you paid for the product that is the subject of a claim. This is the maximum amount for which we are responsible. Newton Waterproofing Systems reserve the right to change the product specification at any time.
  • Page 3: Introduction

    INTRODUCTION DESCRIPTION OF FEATURES The Newton Control Panel-Pro will operate a maximum of two 750 W 230V AC pumps. The panel is supplied The Newton Control Panel-Pro is a class-leading pump control panel with many unique features which has with a vertical water level float switch and High Water Level Alarm float switch.
  • Page 4: Set-Up Options

    DESCRIPTION OF FEATURES SET-UP OPTIONS 12. The panel monitors the power supply and will alarm if the current to each pump is too high or too As mentioned earlier, the panel has two control circuits; Pump 1 and Pump 2. Each circuit has a set of control dip switches and a timer.
  • Page 5: Connecting Power, Pumps & Optional Equipment

    Use the earthing point mounted inside on The Control Panel-Pro is supplied with the pump duty assist timers (shown on page 7) set to 30 seconds for the bottom of the housing by the gland entry points.
  • Page 6 Panel casing is fitted and locked closed • The Control Panel-Pro is supplied with terminal connectors. These are fitted into the motherboard WATER LEVEL FLOAT (Low-voltage) terminals as shown on page 10. The terminal connectors allow for quick connection and disconnection to the board.
  • Page 7: Sizing Of Newton Victron Battery Backup Systems

    SIZING OF NEWTON VICTRON BATTERY BACKUP SYSTEMS CONNECTION OF NEWTON DIALER TO CONTROL PANEL As an approximate guide, with 400 W pumps, one can expect to pump about 12,000 litres of water with WIRING DIAGRAM a full NorthStar NSB 190FT battery. This figure is based upon a system with a new battery and the pumps operating to approximately a 4 m head with approximately 15 minutes between pumping cycles, allowing for battery recovery time in between each operation.
  • Page 8: Engineer Options

    ENGINEER OPTIONS USER INSTRUCTIONS SERVICE DUE SETTING DISPLAY INFORMATION The engineer can select the service due function by adding a jumper to both service timer contacts. This will 1. PUMP CYCLES & PUMP HOURS RUN - (Default display) Displays the cycles and running hours for each time down from 365 days to “service due”...
  • Page 9: System And Panel Maintenance

    4 metres high from chamber water level, using 750W pumps. Signed ..............Name In Capitals ............© Newton Waterproofing Systems (a trading name of John Newton & Co. Ltd.) Newton House, 17-20 Sovereign Way, Tonbridge, Kent, TN9 1RH T: +44 (0)1732 360 095 W: www.newtonwaterproofing.co.uk E: info@newtonwaterproofing.co.uk...
  • Page 10: Panel Internal Wiring Diagram

    PANEL INTERNAL WIRING DIAGRAM For more information visit us online www.newtonwaterproofing.co.uk Call us for more information on +44 (0)1732 360095...
  • Page 11 ® Newton Waterproofing Systems Is A Trading Name Of John Newton & Company Ltd. Newton House, 17-20 Sovereign Way Tonbridge, Kent TN9 1RH T: +44 (0)1732 360095 E: info@newtonwaterproofing.co.uk W: www.newtonwaterproofing.co.uk ® “As part of our policy of continuous product improvement we reserve the right to change our specifications at any time”...
