Avisoft UltraSoundGate Series User Manual

Introduction

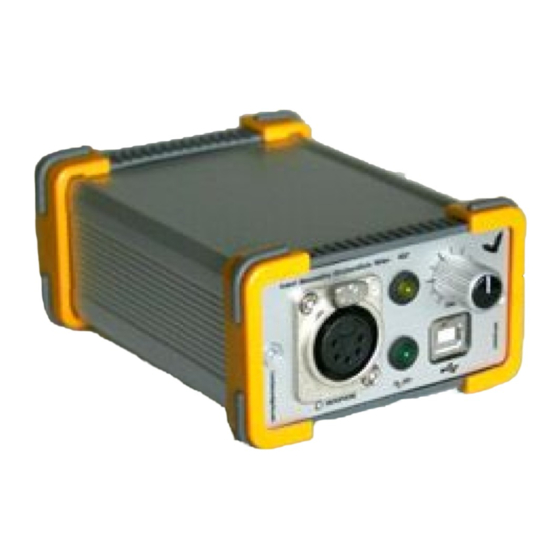

Thank you for purchasing Avisoft UltraSoundGate 116Hbm. This
bus-powered USB device supports single-channel high-speed data
acquisition at sampling rates of up to 300 kHz.
The accompanying recording software Avisoft-RECORDER USGH
provides either continuous or triggered direct-to-disk recording with
real-time spectrogram displays.
Installation procedure
First install the RECORDER USGH software from the supplied
software installation media. The installation procedure will require
administrator rights. Check the option "RECORDER USG/USGH for
the Avisoft UltraSoundGate hardware" on the Software Component
Selection panel:
At the same time, the required device drivers (usgh_xx16h.inf,
usgh.sys) for the UltraSoundGate XX16H devices will be installed.
When the installation procedure has completed, the
UltraSoundGate unit can be connected to the computer. The device
should then be detected as "Avisoft-UltraSoundGate 116H" and the
pre-installed driver should be installed. Under some circumstances
(on Windows XP) it might happen that the Windows Device
Manager asks for the device driver file usgh.sys, which can be
found at C:/Program Files/Avisoft Bioacoustics/Drivers.The green
POWER LED (4) should light permanently and the amber REC LED
(3) should be flashing.
Getting started
The supplied RECORDER USGH software can be launched from
Start / All Programs / Avisoft Bioacoustics / RECORDER USGH
On the first program start, the configuration dialog box will be
launched automatically (otherwise it is available from Options /
Configuration). Select the desired Sampling rate from the Input
Device Settings section and click at Ok. Then click at the Pause
button (Monitoring/Pause) and the Start button (Monitoring/Start).
You will then see the real-time spectrogram displaying the incoming
signals. For details on the operation of the RECORDER software
see the Avisoft-RECORDER manual and the section RECORDER
USGH Software Settings in this guide.

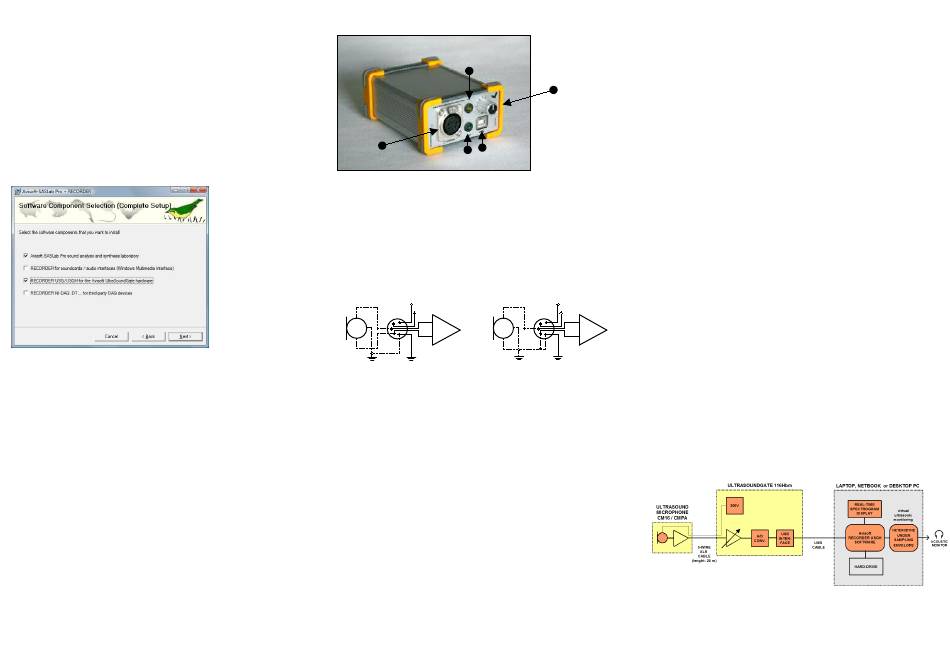

Components of the UltraSoundGate 116Hbm
3
1
2
4
1 XLR input connector
The 5-pole XLR input connector represents the analog inputs of the
recording device and provide power supply voltages for external
amplifiers and microphones. The connector scheme is as follows:
1 Ground
2 Positive input
3 Negative input
4 +5V supply voltage (max current 20 mA)
5 +200V polarization voltage
+200V
5 +5V
4
-
3
+
2
1
differential source single-ended source
2 USB 2.0 interface
3 REC indicator
This amber colored LED will flash once the device is connected to
the PC. It will be switched off once the RECORDER USGH
software is running the in the monitoring mode
REC LED indicates whether the RECORDER software is recording
the incoming data onto disk.
4 POWER indicator
This green LED indicates that the unit is connected to the USB
power supply.
5 GAIN control knob
This control knob adjusts the analog input recording level.
Specifications
Number of channels
ADC type
5
Resolution
Sample rates [kHz]
Frequency response (-3dB)
Input sensitivity (max trim)
Input sensitivity (min trim)
Gain adjustment potentiometer 40 dB continuous range
Input impedance
Analog input connector
Computer interface
Max supply current
(drawn from the USB)
+200V
5 +5V
4 Physical dimensions (W/H/D)
-
3
Weight
+
2
1
Computer requirements
Windows PC with at least one USB 2.0 port,
In this mode, the
.
running Windows XP / Vista / 7
In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without notice.
1
Delta-Sigma architecture with
integrated adaptive anti-aliasing filter
16 bit or 8 bit
300, 250, 214, 187.5, 166.6, 150,
125, 100, 75, 62.5, 50
20 Hz - 135 kHz
-43.2dBV = -41 dBu = 6.9 mVrms
-3.2dBV = -1 dBu = 0.69 Vrms
50 kOhm
female XLR-5 socket
USB 2.0, isochronous high-speed mode
160 mA
90 x 53 x 130 mm
290 g
