replicator v4
Bill Of Materials
2x 1k resistor
4x 100k resistor
2x Bi Colour LED
6x 100nF
3x 14pin DIP socket
3x TL074
2x 22uF Electro
10pin IDC (power)
10x Switchcraft Sockets
1x SPDT switch ON/ON

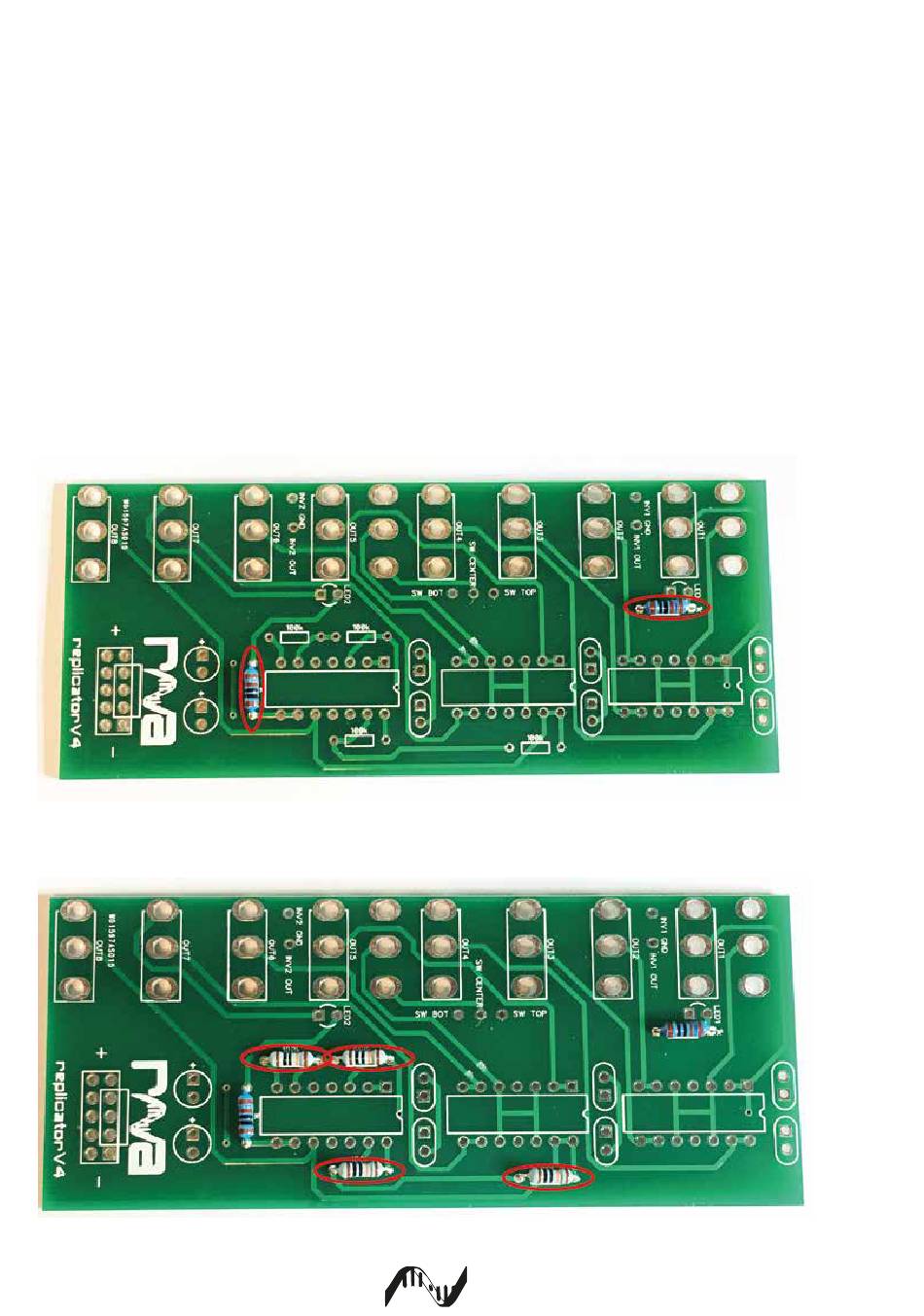

STEP 1 Install 2x 1k resistors. (Keep the legs cut from the resistors, we need 7 for later)
STEP 2 Install 4x 100k resistors
REALL YNICEAUDIO.COM
Build Guide
mouser 604-WP57EGW
mouser 594-K104K15X7RF53H5
mouser 517-4814-3000-CP
mouser 595-TL074CN
mouser 647-UMT1V220MDD
mouser 571-5103308-1
mouser 502-35RAPC2AV
rapid
75-0083
r a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for RNA replicator v4
- Page 1 REALL YNICEAUDIO.COM replicator v4 Build Guide Bill Of Materials 2x 1k resistor 4x 100k resistor 2x Bi Colour LED mouser 604-WP57EGW 6x 100nF mouser 594-K104K15X7RF53H5 3x 14pin DIP socket mouser 517-4814-3000-CP 3x TL074 mouser 595-TL074CN 2x 22uF Electro mouser 647-UMT1V220MDD...
- Page 2 STEP 3 Install 3x 14 pin DIP ockets. Notice orientation. STEP 4 Install 6x 100n capacitors STEP 5 Install IDC power connector. Notice orientation of center location slot.
- Page 3 STEP 6 Place two of the cut off resistor legs into the holes just enough to see then poke through the other side and solder in place. This is for the Inverted Out socket which we will connect later. STEP 7 Do the same with second Inverted Out socket.
- Page 4 STEP 8 Install three more cut off resistor legs to the Switch connector holes. STEP 9 Install main filter caps. 2x 22uf. Observe polarity. The positive is marked on the board. STEP 10 Turn the board over to install the two Input Sockets. The Box on the silkscreen indicates the position.
- Page 5 STEP 11 Next place the remaining sockets on the main side of the board but DO NOT solder them. We are now able to attach the front panel and secure it by adding the nuts to the Input Sockets. Then the nuts can be added to secure the Output sockets. Once all the nuts are fastened solder the eight ouput sockets in place.
- Page 6 STEP 13 Install and secure with the nut the switch. Then solder the three wires to the switch. STEP 14 Install the two LEDS. For Green to show +Volts and Red to show -Volts install with the LEDʼs longer leg towards the power connector. STEP 15 Push LEDʼs into their holes.
- Page 7 STEP 16 Insert the three TL074ʼs observing correct orientation. STEP 17 Check that the -12V red stripe indicator appears at the backside of the PCB.
