Summary of Contents for Synthrotek VCO

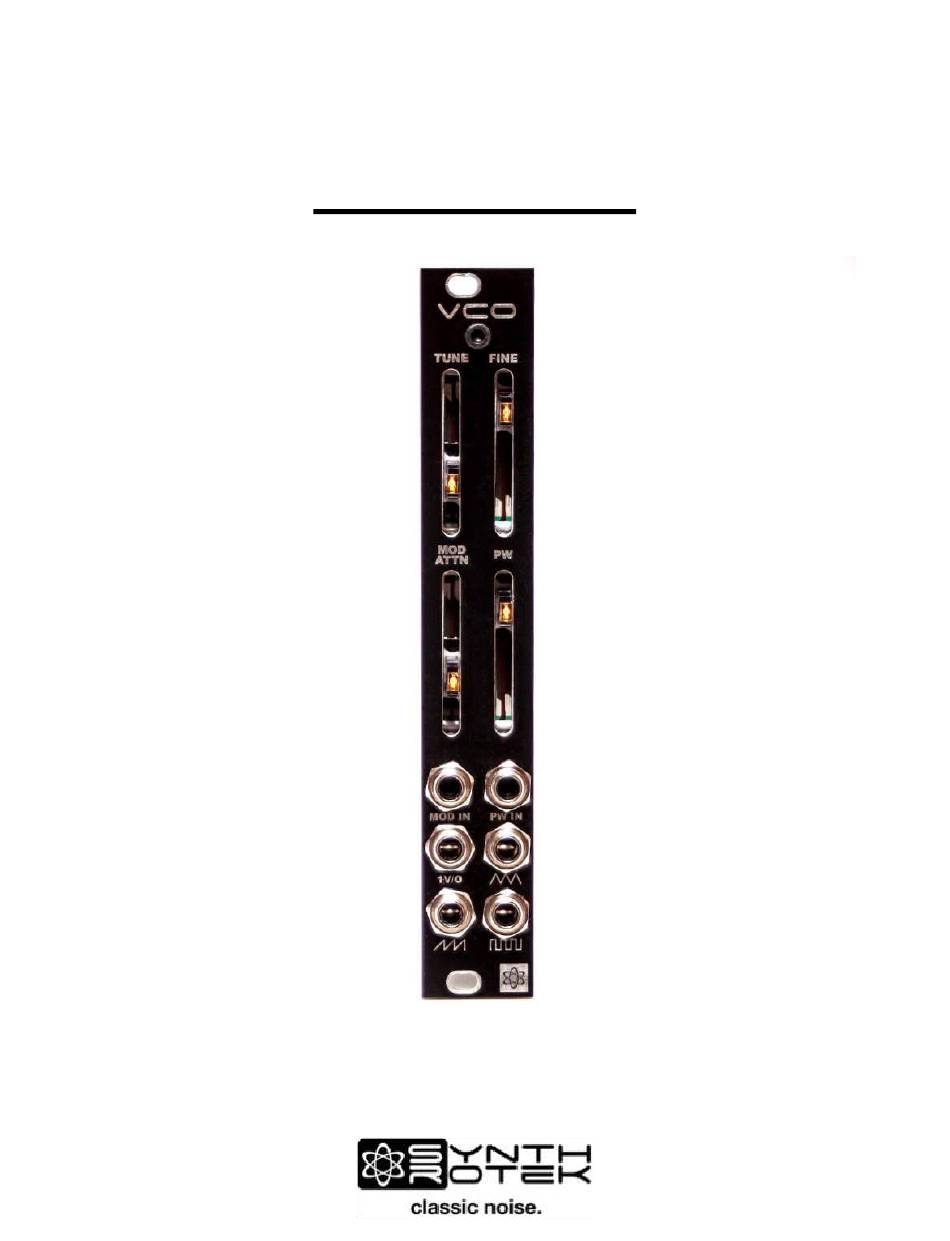

- Page 1 VCO Manual...
- Page 2 Triangle Waveform Sawtooth Waveform Square Waveform General Info The VCO is an analog voltage controlled oscillator with a wide frequency range and 8 trackable octaves. It uses the Curtis CEM3340 reissue chip, which is famous for its outstanding sound quality. Features: ●...
- Page 3 Quick Start Guide ...
- Page 4 STRIPE indicator on the power supply. Then power it on! Calibration If you built the VCO yourself or need to calibrate your module for your system, u se these instructions here to calibrate it...
- Page 5 9th, or an octave plus one whole step. MOD IN ● Frequency modulation input. Synthrotek’s VCO uses linear FM. MOD ATTN ● Frequency modulation attenuator. This pot attenuates the signal from the MOD IN jack, and will only work when the MOD IN jack is patched.
- Page 6 ● 1 Volt per Octave input. Accurately tracks 8 octaves when calibrated. Additive to the pot position. Triangle Waveform ● Triangle waveform. Sawtooth Waveform ● Sawtooth waveform. Square Waveform ● Square waveform. More questions? Get a hold of us here: 503-417-1130 info@synthrotek.com...
