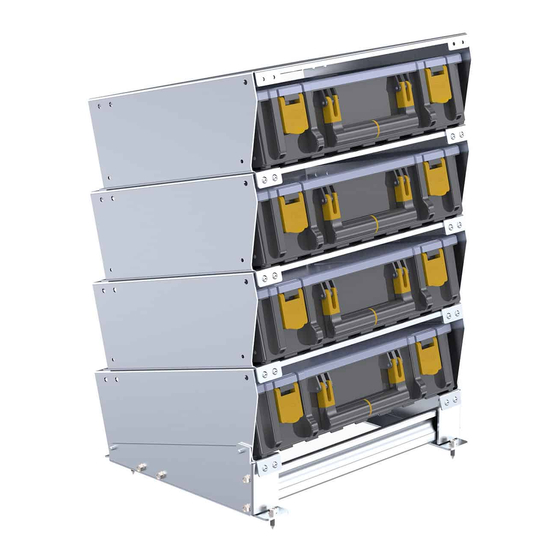

- Page 1 INSTALLATION GUIDE 62-U5074 Partskeeper Carry Case ( aluminum )
- Page 2 QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 4 q 1.2 Partskeeper Holder & Base Assembly..................... 4 - 5 Phase 2 - Installation q 2.1 Partskeeper Carry case Installation....................REQUIRED ITEMS q Cordless Impact q Rivet Gun q 3/8"...
- Page 3 Tilted Right Side Base 62-U5079 Plastic Partskeeper Case EN - 410 × 17" Bin Extrusion, 17" 94-5016 Assembly Fastener Kit 96-5016 Install Fastener Kit 62-U5074 Installation Guide | REV. A1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 1.2.1 Attach the bin extrusion to the left and right side base. TOOLS q Cordless Impact q 3/8" Bit HARDWARE USED 8× 94-5016 #92-102 Screw #14 × 1" 62-U5074 Installation Guide | REV. A1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 1.2.2 Stack and rivet the partskeeper holder to each other. FRONT TOOLS q Rivet Gun HARDWARE USED 18× 94-5016 #96-202 Closed Rivet BACK 62-U5074 Installation Guide | REV. A1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 • After riveting the partskeeper holder slide the partskeeper case inside the partskeeper holder. NOTE: Rivet from inside not from outside. TOOLS q Rivet Gun HARDWARE USED 4× 96-5015 #96-202 Closed Rivet 62-U5074 Installation Guide | REV. A1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 “You have successfully installed your 62-U5074 Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 62-U5074 Installation Guide | REV. A1 | Page 7 For technical support, contact us at 1-800-565-5321...
