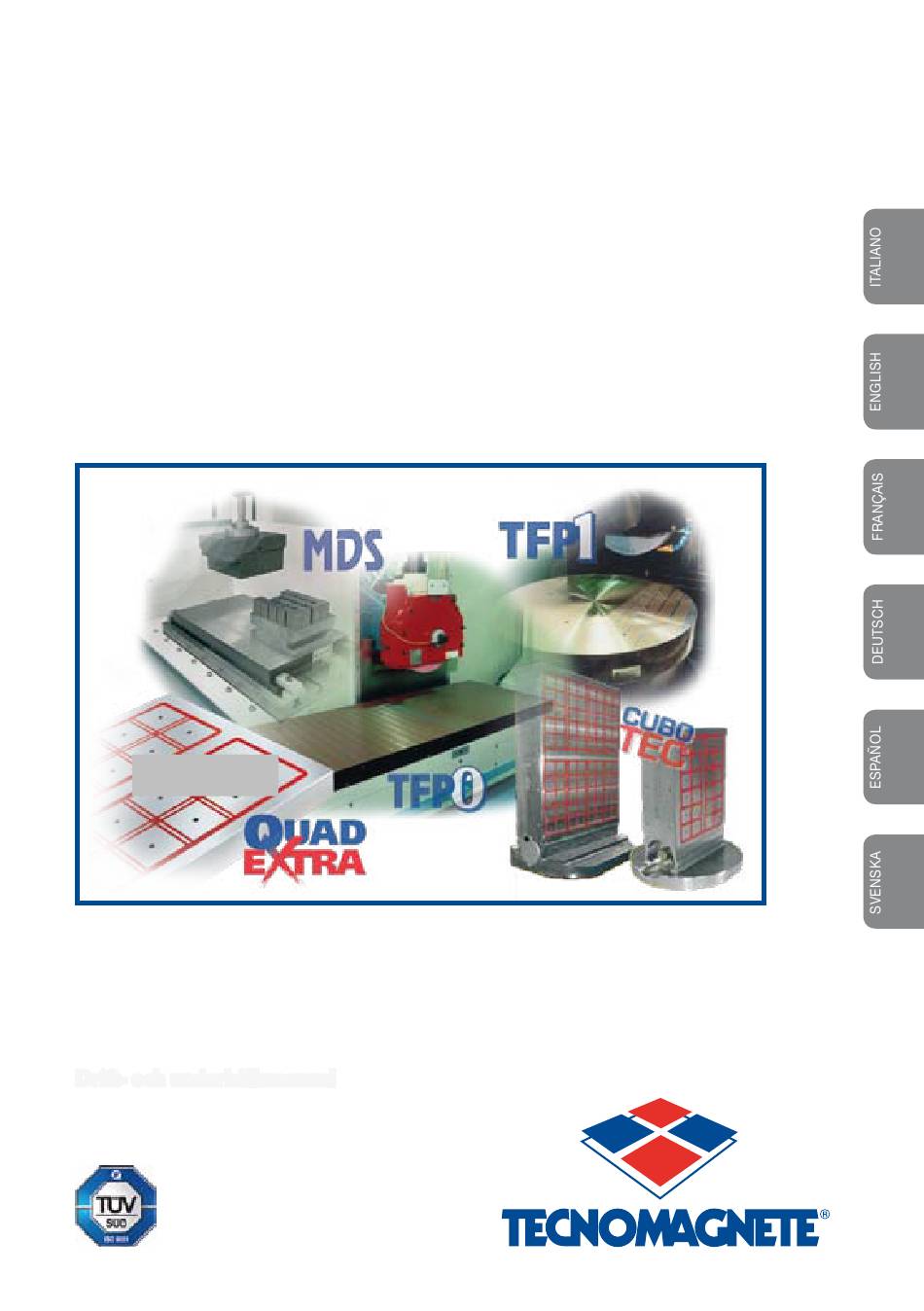

TECNOMAGNETE QX Series Instruction And Maintenance Manual

TECNOMAGNETE QX Series Instruction And Maintenance Manual

Permanent-electro magnetic systems clamping tool machines division - systems for grinding and milling operations
Table of Contents

Advertisement

SISTEMI MAGNETICI ELETTROPERMANENTI
Divisione ancoraggio macchine utensili - serie rettifica e fresatura
PERMANENT-ELECTRO MAGNETIC SYSTEMS
Clamping Tool Machines Division - Systems for grinding and milling operations
SYSTÈMES MAGNÉTIQUES ÉLECTROPERMANENTS
Section serrage machines-outils - série rectification et fraisage
ELEKTROPERMANENTE MAGNETSYSTEME
Abteilung Verankerung von Werkzeugmaschinen - Serie Schleifen und Fräsen
SISTEMAS MAGNÉTICOS ELECTROPERMANENTES
División anclaje sobre máquinas herramienta - serie rectificado y fresado
ELEKTROPERMANENTA MAGNETSYSTEM
Avdelning för fästanordningar till verktygsmaskiner - serie för finslipning och fräsning
MILL TEC
Manuale uso e manutenzione
Instruction and maintenance manual
Manuel d'utilisation et d'entretien
Betriebs- und Wartungsanleitung
Manual de uso y mantenimiento
Drift- och underhållsmanual
Nr. 50 100 7816

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TECNOMAGNETE QX Series

  • Page 1 SISTEMI MAGNETICI ELETTROPERMANENTI Divisione ancoraggio macchine utensili - serie rettifica e fresatura PERMANENT-ELECTRO MAGNETIC SYSTEMS Clamping Tool Machines Division - Systems for grinding and milling operations SYSTÈMES MAGNÉTIQUES ÉLECTROPERMANENTS Section serrage machines-outils - série rectification et fraisage ELEKTROPERMANENTE MAGNETSYSTEME Abteilung Verankerung von Werkzeugmaschinen - Serie Schleifen und Fräsen SISTEMAS MAGNÉTICOS ELECTROPERMANENTES División anclaje sobre máquinas herramienta - serie rectificado y fresado ELEKTROPERMANENTA MAGNETSYSTEM...
  • Page 2: Table Of Contents

    Grinders ........... 59 13.1 Warranty terms and conditions ....75 13.2 Warranty invalidity ........75 INSTALLATION ........60 Warnings ..........60 TECNOMAGNETE SUPPORT Preparation ..........60 CENTRES ..........76 Mechanical installation ......60 Electrical connections ......60 ATTACHMENTS ........77 Useful technical information ....
  • Page 3: General Notes

    Should you require any further information regarding The permanent-electro magnetic systems manufac- the system, please contact the TECNOMAGNETE tured by TECNOMAGNETE are able to produce all service department. the magnetic force required both to clamp and lift The descriptions and illustrations provided in this parts, thus eliminating the need of using electric manual are for reference only.
  • Page 4: Importance Of The Manual

    1.5 Definition of symbols 1.2 Importance of the manual All information related to safety is highlighted in A copy of this manual must always be made availa- bold. ble to the operators responsible for the installation, All warnings that draw the attention of operators on operation and maintenance of the system in order to operations that may be hazardous in terms of safety allow them to carry out all the required operations in...
  • Page 5: Trained Personnel

    OPERATIONS: personnel working in this role must possess specific skills (that must sometimes be TECNOMAGNETE S.p.A. shall not be responsible acquired by following special training courses, if for damages caused to people or equipment required by current laws) and be familiar with the...
  • Page 6: Behavior During Emergency Situations

    • Comply with all the instructions provided • Safely and firmly fix the system and all its parts • Contact TECNOMAGNETE S.p.A. in case of doubt to determine whether a specific opera- tion is permitted The clamping of special materials, other than...
  • Page 7: Transportation And Handling

    Do not handle lifting systems with electromag- not been damaged (unless otherwise instructed by netic lifters. TECNOMAGNETE S.p.A.) in order to ensure that the system has not been damaged during transport and that the material supplied complies with order spec- ATTENTION ifications.
  • Page 8: Storage

    have to be adopted in order to protect it from dam- DESCRIPTION OF ages caused by potential impacts. In order to protect the system from atmospheric agents, lubricate it THE SYSTEM with anti-corrosion oils and place hygroscopic salts in the box. All parts that cannot be permanently fixed in place must be removed.
  • Page 9: Main Principles Concerning The Clamping Of Parts

    3.2 Main principles concerning the 3.3 Factors that influence magnetic clamping of parts forces The magnetic force lines close between the northern The amount of magnetic flow applied to the part is and southern pole of the magnetic chuck. the factor that most influences the clamping force. To achieve an optimum clamping force, it is neces- sary to apply the greatest possible magnetic flow to the part being machined.
  • Page 10 3.3.1 Contact surface 3.3.3 Material used The condition that provides the highest resistance to Always check the material of the part that has to be the forces generated during machining is achieved machined in order to verify that it is magnetically when air gaps are reduced to a minimum and there- conductible.
  • Page 11 and to the smaller side of the pole (for systems for parallel poles). The clamping force for smaller thick- ness values is inversely proportional to the ratio between the thickness (S) of the part and the theo- retical magnetic clamping section (L), as described above.
  • Page 12 3.3.6 Magnetic force This manual applies to two types of clamping sys- tems: • Systems for milling operations • Systems for grinding operations. The circuits of these two types of systems are obvi- ously different due to the fact that the forces used differ and are generally higher for milling operations.
  • Page 13: Available Models

    AVAILABLE MODELS The permanent-electro magnetic systems for mill- ing and grinding operations described in this manual can be divided into the following categories: MAGNETIC CHUCKS WITH SQUARE POLES Series: QX and SQ/ST; HD; HP; CUBOTEC; QX/HN; QG MAGNETIC CHUCKS WITH PARALLEL POLES Series: SGL;...
  • Page 14 4.1.2 Series QX, MILL TEC and SQ/HD 4.1.3 Series QX and SQ/HP Systems with high density poles suitable for small/ These systems, which can be configured in version medium magnetic chucks. These models have large ST or HD, offer the power required to machine parts magnetic surfaces and can therefore be used to with discontinuous surfaces.
  • Page 15 4.1.4 CUBOTEC This system consists of a series of QX and SQ blocks arranged in vertical single bloc units, in the shape of shoulders and magnetic cubes. It is ide- ally suited for horizontal machining centers and FMS systems. The system provides a supporting surface that can be fixed onto machine workbenches and a second surface to support parts with large dimen- sions and weights.
  • Page 16: Magnetic Chucks With Parallel Poles

    4.2 Magnetic chucks with parallel poles 4.2.1 Series SGL Magnetic chucks for milling operations, based on the same technology of QX and SQ, models, but with poles arranged in a parallel configuration. These systems are ideal to machine parts like profiles, rails, bulb plates, etc.
  • Page 17 4.2.4 Series TFP0 4.2.5 Series TPF Permanent-electro magnetic systems for GRINDING Permanent-electro magnetic systems for GRINDING operations, specifically designed for high precision operations, specifically designed for high precision grinding. These systems differ from model TFP1 be- grinding. These systems have the same character- cause the magnetic surface is coated with a mix of istics of model TFP1, but have a higher polar pitch steel/resin.
  • Page 18: Magnetic Chucks With Round Poles

    4.2.6 Series MDS Permanent-electro magnetic systems that have the same technology and configuration of model TPF, which is also applied to EDM systems. 4.3 Magnetic chucks with round poles 4.3.1 RPC Permanent-electro magnetic systems for GRINDING operations, specifically designed for high precision grinding of parts with medium dimensions and thick- ness.
  • Page 19: General Description Of The System

    • Mobile extension • Double fixed extension • Fixed extension with stop • Round mobile extension TECNOMAGNETE S.p.A. is also able to supply on request special and custom accessories. Fixed extension Mobile extension Double fixed...
  • Page 20: Installation

    Before fitting the magnetic chuck onto the machine for the parts to machine (the holes on the poles for which it is designed, always perform the follow- are provided for this purpose). TECNOMAGNETE ing operations: S.p.A. can be contacted at any time for special •...
  • Page 21: Useful Technical Information

    TECNOMAGNETE S.p.A. shall not be responsible for This chapter provides a description of the poten- damages originating from the failure to connect the tial risks that could arise in specific situations.
  • Page 22: Ordinary Use Of The System

    ORDINARY USE OF THE SYSTEM Width The following section describes the basic operating Depth procedure to follow in order to use the magnetic PART TO chuck. MACHINE 8.1 Clamping force The clamping force of the system is directly propor- MAGNETIC CHUCK tional to the working magnetic surface, the type of material being machined and the general conditions The horizontal component is influenced by the ge-...
  • Page 23: Positioning The Parts Onto Extensions

    Example 1 Example 2 Stop Stop Tool movement MECHANICAL STOPS In other words, the installation of mechanical stops offsets the tangential forces that cause the part be- ing machined to slide, thus guaranteeing maximum safety. Correctly positioning the mechanical stops is very important, in particular when the contact surface between the part and magnetic chuck is small (the same concept also applies to the clamping force).
  • Page 24 ing force applied to the part is directly related to INCORRECT the number of available extensions. POSITION CORRECT POSITION Use the polar extensions (for milling operations) to verify that all the surface of the part to machine is covered with the polar extensions. The clamping force is directly proportional to the surface in contact with the part to clamp (and thus to the number of polar extensions).
  • Page 25: How To Calculate The Clamping Force

    c) The mobile polar extensions must also be cor- 8.4 How to calculate the clamping force rectly positioned in order to guarantee an efficient use of the automatic shimming system. Mobile The magnetic clamping force is very easy to calcu- extensions must also be alternated.
  • Page 26: Instructions On How To Clamp Parts For Traditional Machining Operations

    TECNOMAGNETE (paragraph 5.1.1). Instruction and maintenance manual...
  • Page 27 STEP THREE - Start the demagnetization cycle and turn the sheet so that the finished side is in contact ATTENTION! Always verify that the exten- with the extensions. At this point it is possible to fin- sions do not come into contact with one another, ish the surface roughed in “step one”.
  • Page 28: Machining Examples

    8.7 Machining examples 8.7.1 Flattening Part Machining Accessories Recommended Machining to machine required chuck example Plate or block Flattening Not required QX and SQ/HD Plate dimensions: 120x120x20 (lateral dimension (parallel (recommended Material: Fe - Miller: Ø 80 mm of the part below surfaces) pole: 50÷62) Number of inserts: 5 -...
  • Page 29 8.7.2 Contouring Part Machining Accessories Recommended Machining to machine required chuck example Plate or block Contouring Mechanical QX and SQ/HD Plate dimensions: 120x120x60 (later dimensions of must stops on two (recommended Material: Fe part below 150 mm) necessarily sides pole: 50÷62) Miller: Ø...
  • Page 30 8.7.3 Drilling and tapping Part Machining Accessories Recommended Machining to machine required chuck example Plate or block QX and SQ/HD Drilling and Mechanical Part dimensions: 120x120x60 (part dimensions blind tapping stops on two (recommended Material: Fe below 150 mm) sides pole: 50÷62) Drill: Ø...
  • Page 31 Figure 8.7A - Flattening, drilling and formation of imprints Figure 8.7B - Facing of strappers and creation of key slots Figure 8.7D - Tilting, roughing, release of stress and Figure 8.7C - Surface roughing finishing of second surface Figure 8.7E - Flattening and butting of profiles Figure 8.7F - Butting and drilling of tubular sections Figure 8.7G - Profiling of blades and chiseling of sheets Figure 8.7H - Profiling of multiple joined guides...
  • Page 32: Maintenance

    MAINTENANCE 9.1 Premise A correct maintenance significantly influences the life cycle of the system, ensures a high performance and fault-free operation, along with maximum func- tional safety. 9.2 Safety precautions applicable to Figure 8.7I - Flattening and contouring of cast and molded maintenance parts ATTENTION...
  • Page 33: Daily Maintenance

    The wiring diagrams are included in the operation and maintenance manual of the controller. 9.5 Monthly maintenance TECNOMAGNETE S.p.A. can be contacted at any These operations, which must be performed once a time for further information or queries regarding the month for daily working shift of 8-10 hours and must operation and maintenance of the magnetic chuck.
  • Page 34: Troubleshooting And Corrective Actions

    TROUBLESHOOTING AND DECOMMISSIONING AND CORRECTIVE ACTIONS DISPOSAL This section provides information designed to help 12.1 Decommissioning operators to troubleshoot and correct the problems that may arise during the use of the equipment. To decommission the system, disconnect it from the It is particularly important to correctly calculate the power supply, place it out of service, disassemble it clamping forces, as specified in previous paragraphs...
  • Page 35: Warranty And Technical Support

    13.1 Warranty terms and conditions • In the event of unauthorized reparations or chang- TECNOMAGNETE products are guaranteed for 36 months from the invoice date except where other- • If the serial number has been tampered with or wise indicated in writing.
  • Page 36: Tecnomagnete Support Centres

    Rua Nova Da Comeira, 4 2431-903 MARINHA GRANDE (PORTUGAL) SINGAPORE - SOUTH-EAST ASIA - OCEANIA Tel. +351 244572801 TECNOMAGNETE Singapore R.O. Fax +351 244572801 101 Thomson Road 26 - 02 United Square geral@sorep.co.pt Singapore 307591 Tel: +65 6354 1300...
  • Page 37: Attachments

    Dimensional drawing b) Installation chart c) List of spare parts 15.1 Declaration of conformity TECNOMAGNETE S.p.A. hereby declares that the equipment is compliant with the main requirements and any other applicable provision specified in di- rectives: 2004/108/CE and 2006/95/EC.
  • Page 38 • IT • SE • CN TECNOMAGNETE S.p.A. TECNOMAGNETE AB TECNOMAGNETE Shanghai R.O. 20020 Lainate (MI) Gustafsvagen 16 Pudong Lujiazui Dong road 161, Via Nerviano 31 633 46 Eskilstuna Room 2110 - PC: 200120 Tel. +39 02.937.591 Tel. +46 016 132 200 Tel.
