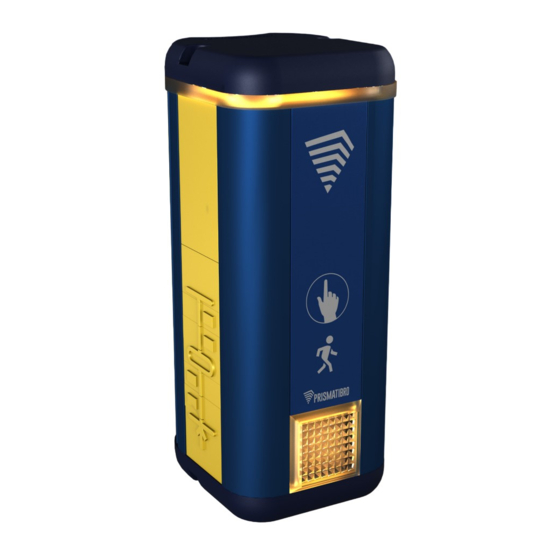

Summary of Contents for Prismatibro Prisma Daps 2000
- Page 1 DIGITAL ACOUSTIC PEDESTRIAN SIGNAL 2000 INSTALLATION MANUAL...
-
Page 2: Exploded View
EXPLODED VIEW Tactile direction arrow Top cover LED light ring Service hook Cable Terminal Electronic module LED in front Front Relief symbols (mounting example) Housing Decorative profile LED protection lens Bottom lid Vibrator plate Vibrator plate with push button... -
Page 3: Installation
INSTALLATION HOLE PATTERN Upon request a real size hole pattern sticker can be provided along with the ordered products. Fasten the hole pattern on the pole and drill the holes. OPTION 1 OPTION 2 When the unit is mounted directly onto When it is impossible to install the Ø... -
Page 4: Cable Descriptions
CABLE DESCRIPTIONS Prisma Daps 2000•L: 13 wires. 13 wires is standard for new intersections. Red lamp phase BLUE Neutral GREY Green lamp phase WHITE Direct constant supply* (+/~ xx V) BLUE/WHITE Direct constant supply* (0V) PINK Output signal via Relay K2... -
Page 5: Error Handling
Direct Constant Supply. • Adapter cabling is used when exchange of the electronic module from Prisma Daps 1000 or Prisma Daps TS-900-series to Prisma Daps 2000. • A customized cabling can be provided on request. - Page 6 FITTING RELIEF SYMBOLS AND DIRECTION ARROW Purpose • These symbols have been designed specifically to allow people with impaired vision to get an overview of the intersection and in which direction to walk. Placing • The relief symbols should always be placed facing the pavement. The decorative profiles should be placed on the opposite side, facing the road.
-
Page 7: Technical Information
Prisma Daps 2000 is programmed from the Android App: Prisma Daps. Choose your unit - Set your functions - Transfer settings and files. Prisma Daps 2000•L is equipped with a NFC antenna in the top cover for wireless communication, without opening the Prisma Daps unit. - Page 8 – walk or don’t walk – in PrismaTibro has nearly three decades of experience in developing and order to guarantee the safety of the manufacturing unique, high quality products with advanced and reliable technology.
