Summary of Contents for Univox P-Loop 2.0

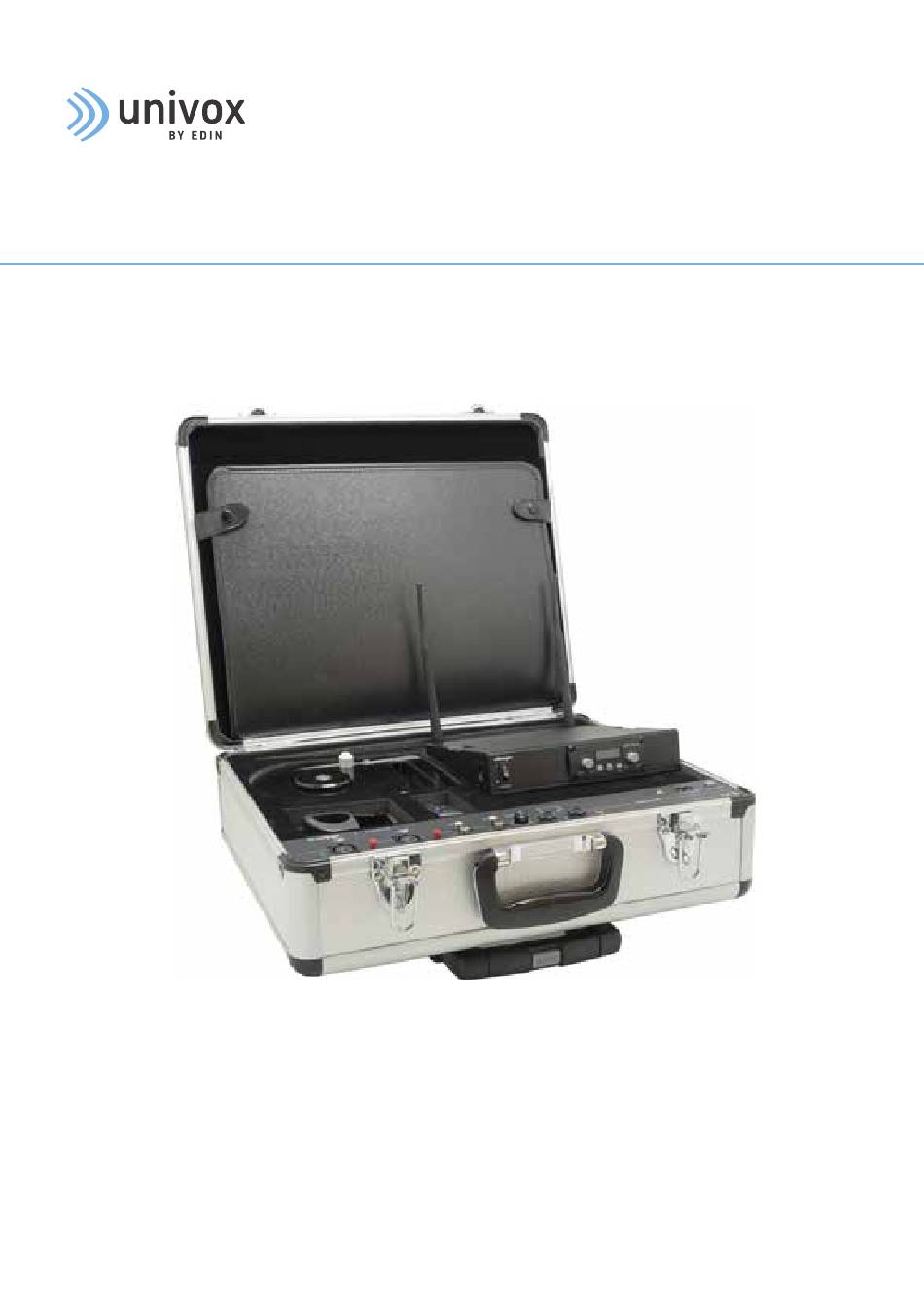

- Page 1 Univox® P-Loop 2.0 Portable loop case User Guide Univox® P-Loop 2.0 Part No 212031...
- Page 2 Content Introduction Univox P-Loop 2.0 Portable Loop Case Setting up the loop Connecting signal source(s) Adjusting input sensitivity (Mic/Line XLR) Connecting mains power Adjustment of loop current level Wireless microphone systems Adjustments when used with loop amplifier Acoustic amplification with an active speaker...

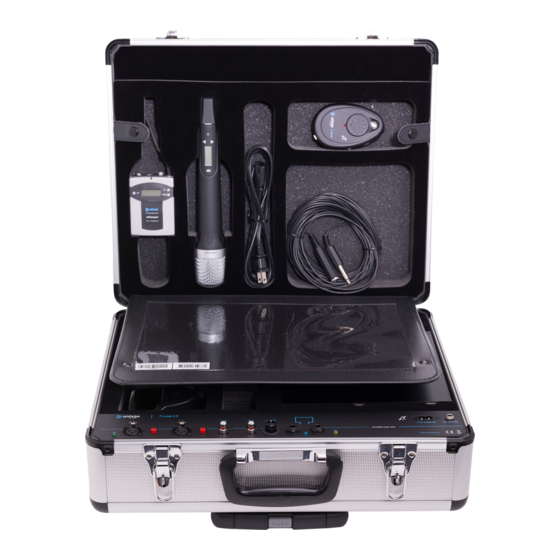

- Page 3 Please read this user guide carefully before (installation and) use of this product. Univox P-Loop 2.0 Portable Loop Case Univox P-Loop 2.0 portable loop case contains a complete portable loop system with a built-in amplifier with a 35 meter loop cable on a dispenser and accessories depending on which loop solution you have chosen.
- Page 4 (8). The LED indicator below the sockets indicates when current floats through the cable(transmitting). Use the testing device Univox Listener 2.0 (included in the case) to adjust the right loop current level. Please consult the included user guide for instructions on how to use the Listener 2.0.
- Page 5 Adjustments when used with loop amplifier Please note that the difference in sensitivity for handheld microphones (EJ-701TM Plus) and pocket transmitters. The handheld microphone is set to a lower level to avoid feedback when used in front of speakers. Due to this the adjustments have to be made in the following order: 1.
- Page 6 “Out” (7). Please consider the risk of feed back, if the system includes loudspeakers. Trouble shooting guide Use Univox® Listener to check the sound quality and basic level of the loop. Verify the control LED's following the instructions in this installation guide.
- Page 7 Support. Technical data Please see the datasheet for the P-Loop 2.0 in the plastic pocket inside the case. For additional information, please refer to product data sheet/brochure and CE certificate which can be downloaded from www.univox.eu, Downloads. If required other technical documents can be ordered from support@edin.se.
- Page 8 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
