Summary of Contents for FTGMDC FT-8200

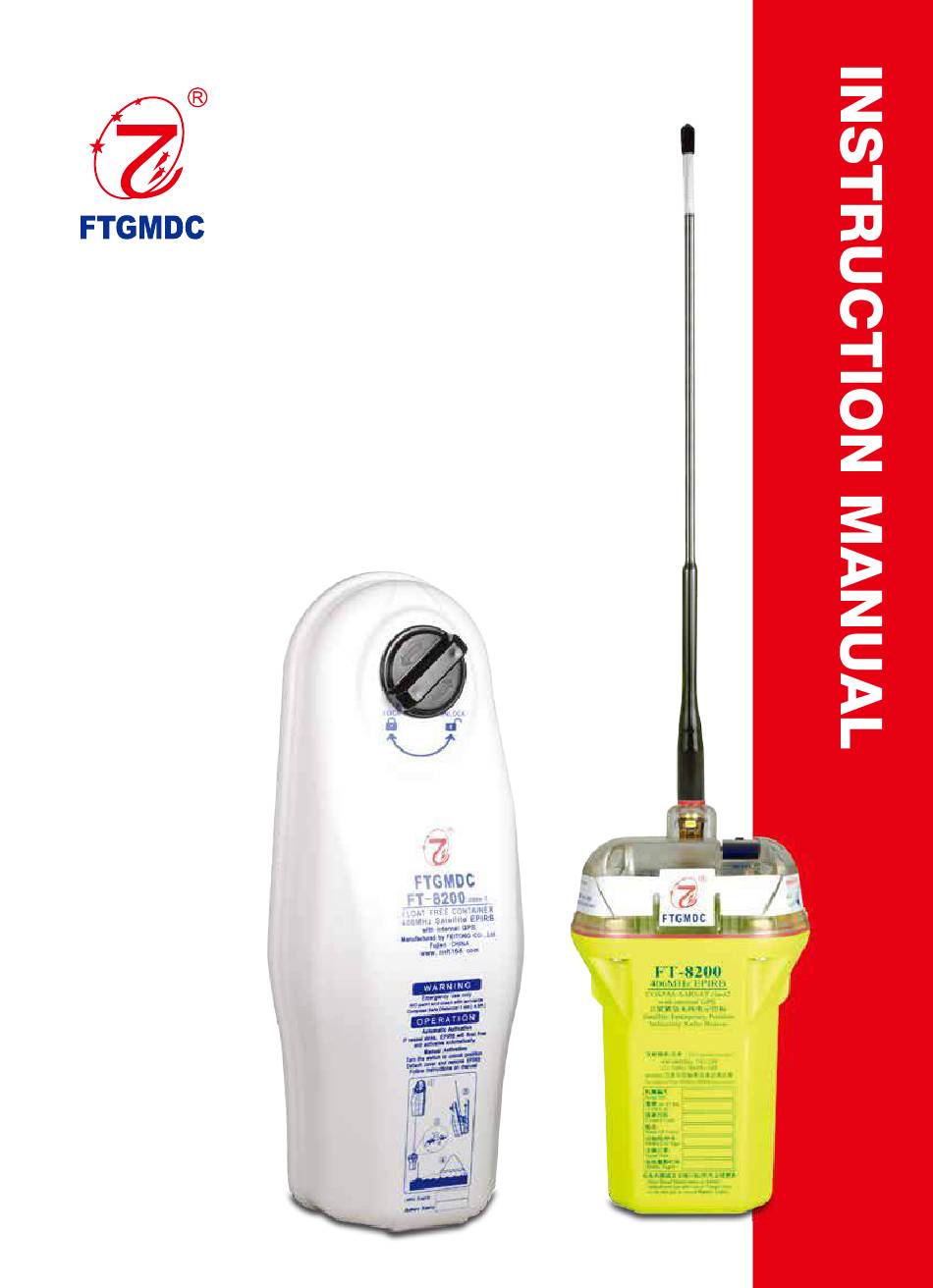

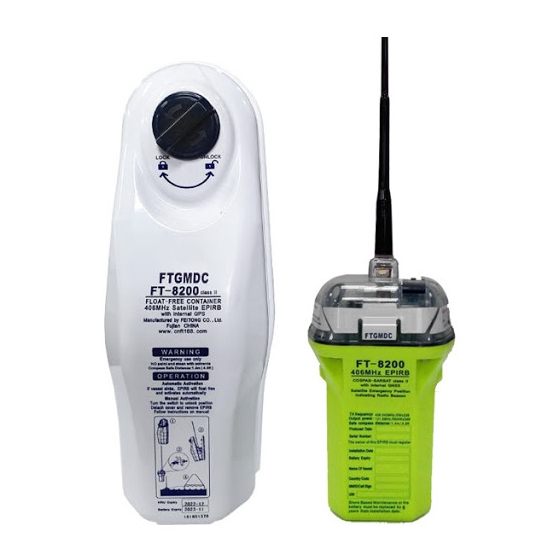

- Page 1 FT-8200 Satellite Emergency Position Indicating Radio Beacon FLOAT-FREE CONTAINER 406MHz Satellite EPIRB...
- Page 3 PREFACE Thank you for using FT-8200 EPIRB. To ensure your proper operation please study this manual closely before installation. Feitong FT-8200 satellite EPIRB is designed to operate with COSPAS- SARSAT GEOSAR and LEOSAR Search and Rescue System ,full compliant COSPAS-SARSAT T.001, T.007 Class2 and meets IMO A810 (19).
- Page 4 Before using this product must register it with the appropriate national authority. y Product programming must be done by factory or authorize service agent only. y FT-8200 EPIRB safe distance from compass is 1.4 meter. y Do not paint or solvent wash on FT-8200 EPIRB.
-
Page 5: Table Of Contents
CONTENT 1. GENERAL INFORMATION ...............1 1.1 COMPOSITION OF THE COSPAS-SARSAT SYSTEM ..........1 1.2 EPIRB 406MHZ SATELLITE ALERTING PROCEDURE ..........2 2. PRODUCT DESCRIPTION ..............3 2.1 INTRODUCTION ......................3 2.2 FEATURES ........................3 2.3 TECHNICAL INDEX ......................3 2.4 DIMENSION OVERVIEW .....................5 2.5 STRUCTURE ILLUSTRATION ..................6 3. -
Page 6: General Information
.As the system that detects and lo- cates emergency beacons activated by aircraft, ship and back country hikers in distress. FT-8200 EPIRB is operated with COSPAS- SARSAT system and meets GMDSS standard, below figure 1 is a COSPAS-SARSAT operation system overview. -
Page 7: Epirb 406Mhz Satellite Alerting Procedure
Figure 1-2: 6 GEOSAR/ LEOSAR Satellites 1.2 EPIRB 406MHZ SATELLITE ALERTING PROCEDURE y Activate EPIRB alerting system y EPIRB will transmit the 406MHz signal that carries ship’s ID code or serial num- ber with the interval of about 50s y The satellite receives signal from the EPIRB and retransmits signals to LUT with- in its visual angle y The LUT transfer received distress signal without delay and send ships informa- tion, position to MCC... -
Page 8: Product Description
When vessel sinking, the FT-8200 will automatically release itself from its enclo- sure before it reaches a depth of 4 meters sea water .The FT-8200 will float on the water surface and start to operate when its water switch is activated or you can activate by manual when you are in life raft. - Page 9 Strobe Light : 24 times per minute (brightness>0.75cd) Waterproof Capability : tested to 10 min at 33feet. (10m) Casing Material : ABS Plastic Physical Size : (W)140mm×(D)119mm×(H)370mm Total Weight : 1600g ■ 406MHZ DISTRESS TRANSMITTER Operating Frequency : 406.040MHz ± 1kHz Power Output : 5W (37dBm) ±...
-
Page 10: Dimension Overview
2.4 DIMENSION OVERVIEW ■ SIZE OF RELEASING DEVICE (Unit: mm) 5xø7 Figure 2-1 Figure 2-2 Figure 2-3 ■ SIZE OF THE BEACON (Unit: mm) Figure 2-4 Figure2-5 Figure 2-6... -
Page 11: Structure Illustration
2.5 STRUCTURE ILLUSTRATION ■ FREE FLOAT CONTAINER Ejector Spring Spring Hydrostatic Release Release Unit Knob (HRU) Antenna Hook EPRIB Front Cover Hook (Detent) Figure 2-7: Front Cover Figure 2-8: Back Support of Bracket ■ THE BEACON ILLUSTRATION Strobes Light Data COM. Manual Activation Switch Antenna... -
Page 12: Operation Procedure
Before you install the EPIRB ,you should decide a suitable mounting position on the vessel. It should be mounted upright against a vertical buck head and suffi- cient space for operation.(If possible hold FT-8200 up in hand and turn on by man- ual activated) NOTE: FT-8200 is not allowed to place in horizontal position, cabinet or near by exhaust fumes, chemical and oil sources. -
Page 13: Beacon Activation
3.2 BEACON ACTIVATION When FT-8200 activated, the red LED working status light is remain “ON” and beep sound for 2 second after then red LED change to “flash” light status, strobe light flash means beacon into alerting, TX121 LED flash means of 121.5MHz transmis- sion, TX406 LED flash means of 406MHz data message is alerting, GNSS LOCK LED “ON”... - Page 14 For survivor who carry the EPIRB into life raft, in order to be rescued in a shortest possible time that you can tie the EPIRB FT-8200 to the life raft with the rope at- tached and throw the EPIRB into the sea water.
-
Page 15: Self Test Mode
Lift up the lever switch to 90 degree then slide to left and push forward to “ACT” position ,monitor the red light is flashing that FT-8200 is activated. Figure 3-8: Manual Activation illustration Chart 3.3 SELF TEST MODE NOTE: A warning to limit testing to the first five minutes of the hour, as the sat- ellite EPIRB emits a 121.5 MHz signal during self-test. - Page 16 ■ SELF TEST OPERATION PROCEDURE y Took out FT-8200 from its container y Lift up mechanical spring lever switch to 45 degree, if green light flash that EPIRB self test is “start” by magnetic switch then leave your hand away from the test switch it will be automatically back to normal Off / Ready position.
-
Page 17: Deactivation
EPIRB has been badly fitted in its mounting bracket. The FT-8200 bracket has a hidden magnet to hold EPIRB in an off state. If the FT-8200 is wrongly fitted the magnet does not work and heavy rain may activate the water switch. -
Page 18: Transportation
4. TRANSPORTATION This product contains small lithium metal batteries it may be classified as a hazardous cargo. Please check with the forwarder service for any additional restrictions condition in your shipment transport. 5. REGISTRATION Every EPIRB is pre-programmed with a unique identity before it reaches the customer and not allowed to modify during the using periods .This is done by the manufacturer or authorize distributor only. -
Page 19: Installation
HRU expiry date have to mark on the yellow label (the expiration period is 2 years from installation day). Normally, the FT-8200 is installed on the two sides of the Navigation Bridge or compass deck for the vessel. The installation place should be accessible for easy maintenance and manual start. - Page 20 Put EPIRB into lower container and the “FTGMDC” sign of FT-8200 need to face up up- per container. Very gently bend the antenna to right position then put it into the lower container.
-
Page 21: Maintenance
7.2 ANNUAL INSPECTION The annual inspection of the EPIRB should be carried out by related government organization then the qualify service station have to present a report for FT-8200 all function checklist of vessel data、working condition and device expiry date. -
Page 22: Epirb Battery Replacement
Figure 7-1: HRU illustration Chart 7.4 EPIRB BATTERY REPLACEMENT The FT-8200 EPIRB battery expiry date is 5 years that is compulsory to replace the expiration battery. NOTICE: y FT-8200 EPIRB battery replacement must be carried out by authorized ser-... -
Page 23: Attachment
8. ATTACHMENT 8.1 PERIODIC CHECK LOG √ if OK PERIODIC INSPECTION LOG Check Check Item Battery Pack Expiry Date: Expiry Date: Housing Check Watertight Check 406MHz Transmitting Check 121.5MHz Transmitting Check Inspection By: ____________________________Inspection Date: _________________________ √ if OK PERIODIC INSPECTION LOG Check Check Item Battery Pack... - Page 24 √ if OK PERIODIC INSPECTION LOG Check Check Item Battery Pack Expiry Date: Expiry Date: Housing Check Watertight Check 406MHz Transmitting Check 121.5MHz Transmitting Check Inspection By: ____________________________Inspection Date: _________________________ √ if OK PERIODIC INSPECTION LOG Check Check Item Battery Pack Expiry Date: Expiry Date: Housing Check Watertight Check...
-
Page 25: Epirb Data Amend
8.2 EPIRB DATA AMEND Vessel’s Name MMSI Port of Registry Installation Date Date of Registration Inspection By: ____________________________Inspection Date: ________________________ Vessel’s Name MMSI Port of Registry Installation Date Date of Registration Inspection By: ____________________________Inspection Date: ________________________ Vessel’s Name MMSI Port of Registry Installation Date Date of Registration Inspection By: ____________________________Inspection Date: ________________________... - Page 28 SHISHI FEITONG COMMUNICATION EQUIPMENT CO.,LTD. Chaosen Building, Yongning Xinyi Development Zone, Shishi City, Fujian, China 362700 TEL:+86-0595-88481988 FAX:+86-0595-88482988 http://www.cnft168.com...
