Summary of Contents for Equipson WorkPro WFS 500 CX

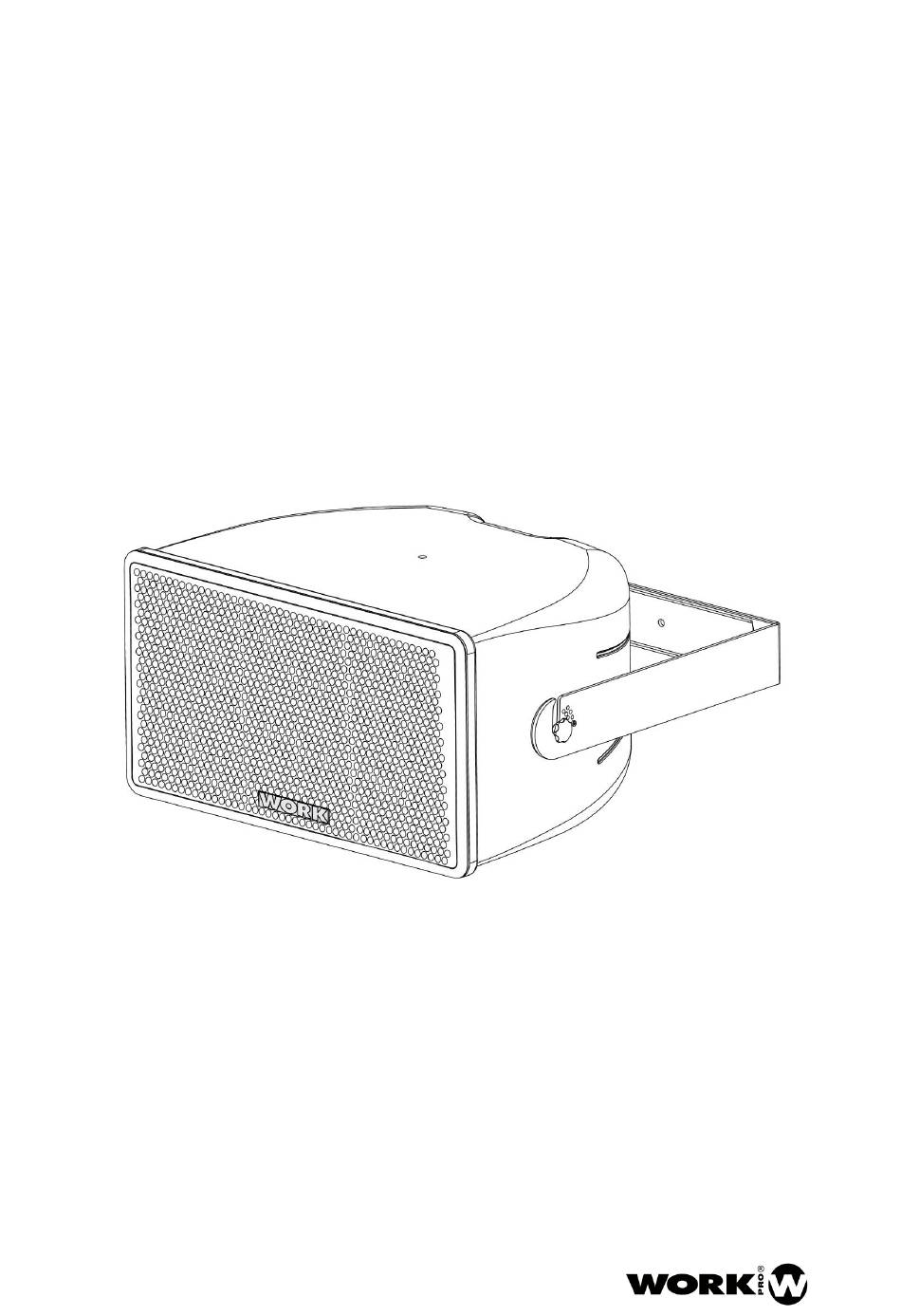

- Page 1 WFS 500 CX User Manual - Version1.0...
- Page 2 WFS 500 CX USER MANUAL VERSION 1.0 1. Carefully read this manual. / Lea detenidamente este manual. 2. Follow all safety instructions as well as warnings. / Siga todas las instrucciones y advertencias. 3. Never incorporate accessories not approved by WORK PRO. / Únicamente utilice accesorios especificados por WORK PRO.
-
Page 3: Table Of Contents
WFS 500 CX USER MANUAL VERSION 1.0 CONTENTS / CONTENIDO 1. OVERVIEW ............................4 2. TECHNICAL SPECIFICATIONS ......................5 3. DRAWINGS ............................6 4. CONNECTION ............................ 6 5. POLAR PATTERNS & RESPONSE CURVES ................... 7 6. PRESETS ............................. 8 7. WALLMOUNTS ..........................8 1. -
Page 4: Overview

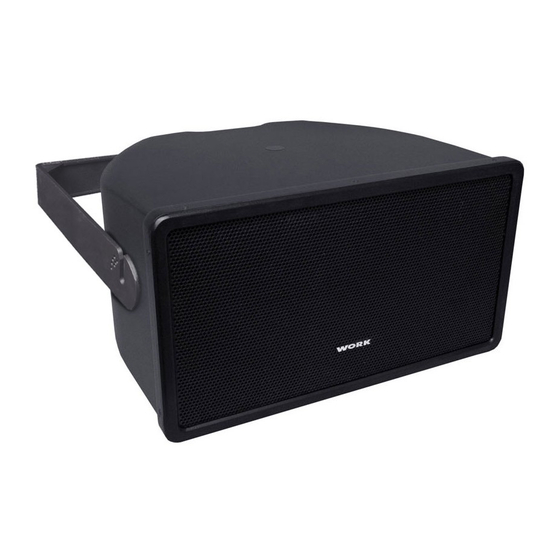

WFS 500 CX USER MANUAL VERSION 1.0 1. OVERVIEW The WFS 500 CX is a passive two-way, full range projector type speaker which provides voice intelligibility and musical clarity for outdoor applications such as aquaparks, theme parks, shopping malls, stadiums, trains stations or swimming pools, where long distances have to be reached. It features one horn loaded 10”... -
Page 5: Technical Specifications
WFS 500 CX USER MANUAL VERSION 1.0 2. TECHNICAL SPECIFICATIONS Acoustical specifications LF Transducer ..........1x 10” diameter, 2.5” voice coil speaker HF Transducer ........1x 1” exit, 1.75” voice coil compression driver Nominal Impedance ..................8 ohm Recommended amplifier power ............500Wrms(89.5Vp) RMS Power .................... -
Page 6: Drawings
WFS 500 CX USER MANUAL VERSION 1.0 3. DRAWINGS *Dimensions in mm. 4. CONNECTION The four-pole stripped wire colours are as follows: Red, Black, Green and Yellow. Red, + Black, - WFS 500 CX www.workpro.es... -
Page 7: Polar Patterns & Response Curves
WFS 500 CX USER MANUAL VERSION 1.0 5. POLAR PATTERNS & RESPONSE CURVES Horizontal 1/3 Octave Polar Response Vertical 1/3 Octave Polar Response WFS 500 CX www.workpro.es... -
Page 8: Presets
WFS 500 CX USER MANUAL VERSION 1.0 Frequency Response Impedance Curve 6. PRESETS Use the following link to download the recommended presets for WFS 500 CX https://www.workpro.es/products/wfs-500-cx 7. WALLMOUNTS WSTB 10 H INCLUDED For 0º to 45º tilt in 7.5 degrees steps WSTB 10 V OPTIONAL ±90º... -
Page 9: Introducción
WFS 500 CX USER MANUAL VERSION 1.0 1. INTRODUCCIÓN El WFS 500 CX es una caja acústica pasiva de dos vías y de rango completo que proporciona inteligibilidad de palabra y claridad musical para aplicaciones al aire libre como parques acuáticos, parques temáticos, centros comerciales, estadios, estaciones de trenes o piscinas, donde se deben alcanzar largas distancias. -
Page 10: Especificaciones Técnicas
WFS 500 CX USER MANUAL VERSION 1.0 2. ESPECIFICACIONES TÉCNICAS Especificaciones acústicas Transductor LF ............1x 10” diámetro, bobina de 2.5” Transductor HF ....... 1x 1” salida, motor de compresión con bobina de 1.75” Impedancia nominal ..................8 ohm Potencia recomendada del amplificador .......... 500Wrms(89.5Vp) Potencia RMS .................... -
Page 11: Dibujos De Líneas
WFS 500 CX USER MANUAL VERSION 1.0 3. DIBUJOS DE LÍNEAS *Medidas en mm 4. CONEXIONADO La manguera de conexionado tiene cuatro cables con los siguientes colores: Rojo, Negro, Verde y Amarillo. Para conectar la WFS 500 CX lo haremos de la siguiente manera: Rojo, + Negro, - WFS 500 CX... -
Page 12: Patrones Polares Y Curvas De Respuesta
WFS 500 CX USER MANUAL VERSION 1.0 5. PATRONES POLARES Y CURVAS DE RESPUESTA Respuesta Polar Horizontal 1/3 Octava Respuesta Polar Vertical 1/3 Octava WFS 500 CX www.workpro.es... -
Page 13: Presets
WFS 500 CX USER MANUAL VERSION 1.0 Curva de Respuesta en frecuencia Curva De Impedancia 6. PRESETS Use el siguiente enlace para descargar los presets recomendados para WFS 500 CX https://www.workpro.es/products/wfs-500-cx 7. SOPORTES DE PARED WSTB 10 H INCLUIDO Inclinación de 0º a 45º en pasos de 7.5 grados. - Page 14 WFS 500 CX USER MANUAL VERSION 1.0 WFS 500 CX www.workpro.es...
