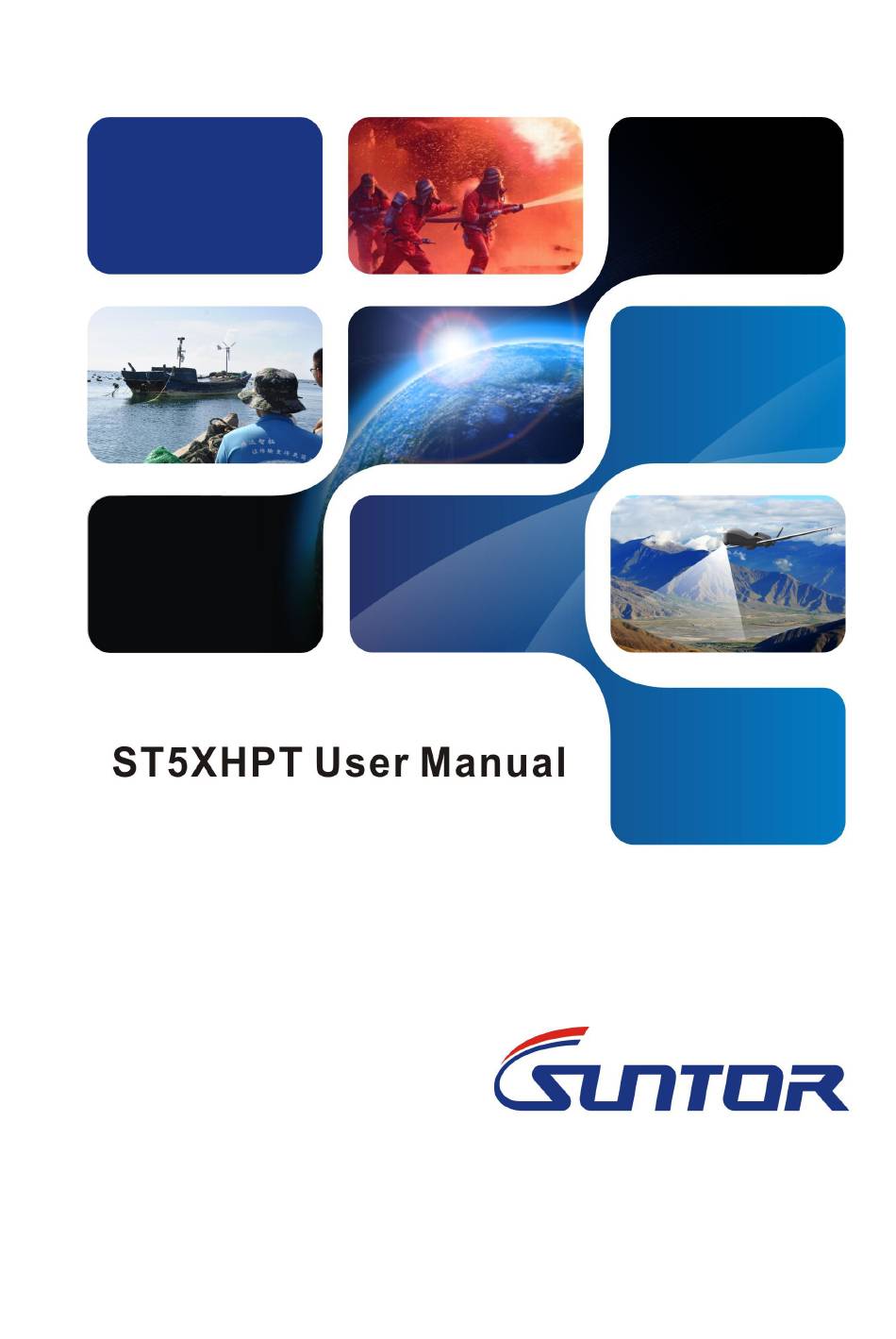

Summary of Contents for Suntor ST5XHPT
-
Page 2: Table Of Contents
1. Multi-rotor UAV............................. 10th 2. Fixed Wing UAV............................. 11th SUNTOR ELECTRONICS CO., LIMITED V2.0 I. Disclaimer SUNTOR is the registered trademark of SUNTOR ELECTRONICS CO., LIMITED. All product names and brands in this manual are trademarks or registered trademarks of the Company. SUNTOR... -
Page 3: Precautions For Integration
ELECTRONICS CO., LIMITED reserves all copyrights of the product and the manual. All the information must not be copied or reproduced in any form without permission of SUNTOR. There may be semantic differences between disclaimers of different languages. The Chinese version shall prevail in Chinese mainland, while the English version shall prevail in other regions. -
Page 4: List Of In-Box Items
15) Adjust the Futaba controller into French mode as following steps: 16) [LINKAGE MENU]→FRQUENCY→ RTN b→ [AREA]→[FRANCE] Or connect ST5XHPT S1 serial port with trainer interface on back side of Futaba by TTL cable. And set the Futaba RF as OFF. Through the S1 port uplink the PPM/SBUS signal. - Page 5 On board antenna x1 Ground antenna x1 DC power cable x4 HDMI video cable x2 TTL Cable x2 USB TTL serial port x2 TTL Cable for Fly control system x 1...
-
Page 6: Interface Definition
IV. Interface Definition HDMI mini TX or RX*1 DC7~18V Input*1 (We recommend DC12V) SMA Antenna Interface*1 TTL Serial Port*1 DC7~18V Input*1 (We recommend DC12V) Note: 1. There are two power input interface. They have same function. Any one is ok for power input but we recommend the interface E for power input 2. -
Page 7: Power Cable
1. Power Cable A. DC Socket 5.5-2.1mm B. Plug：4P GH1.25mm Definition Cable Color 7-18V 7-18V White White 2. Bidirectional serial port TTL Cable A. JST SH1.0mm 5P B. Dupont Connectors SH NO Definition Cable Color White Grey 3.3V Reserved interface Green Audio Reserved interface... -
Page 8: How To Connect With Fly Control System
3. How to connect with fly control System On board If your Auto pilot system is TTL interface for data. You can use the TTL cable to connect the transmitter’s S1 port with auto pilot system. If your auto pilot system is RS232 interface for data, with the cable’s definition, you can make a RS232 cable to do the connection with your auto pilot system. - Page 9 2. Connection Make the power cable, HDMI Cable, serial port cable and antenna in good connection. (the serial port cable is for data links) 3. Power on After checking all the connections are in good condition, turn on the the video source, LCD display, transmitter and receiver. The PWR indicator will bright and the whole system starts work.
-
Page 10: Antenna Installation
VI. Antenna Installation 1. Multi-rotor UAV SMA Feeder Cable 1) Using SMA metal shielded semi-flexible blue feeder cable provided by SUNTOR to connect the TX SMA port with antenna. 2) The antenna needs to be mounted vertically downwards. 3) The best installation location is UAV ground bracket. -
Page 11: Fixed Wing Uav
2. Fixed Wing UAV 1) Using SMA metal shielded semi-flexible blue feeder cable provided by SUNTOR to connect the TX SMA port with antenna. 2) The antenna needs to be mounted vertically downwards. 3) The best installation position is center of UAV tail, prominent outside the body and vertical downward. - Page 12 12th...
