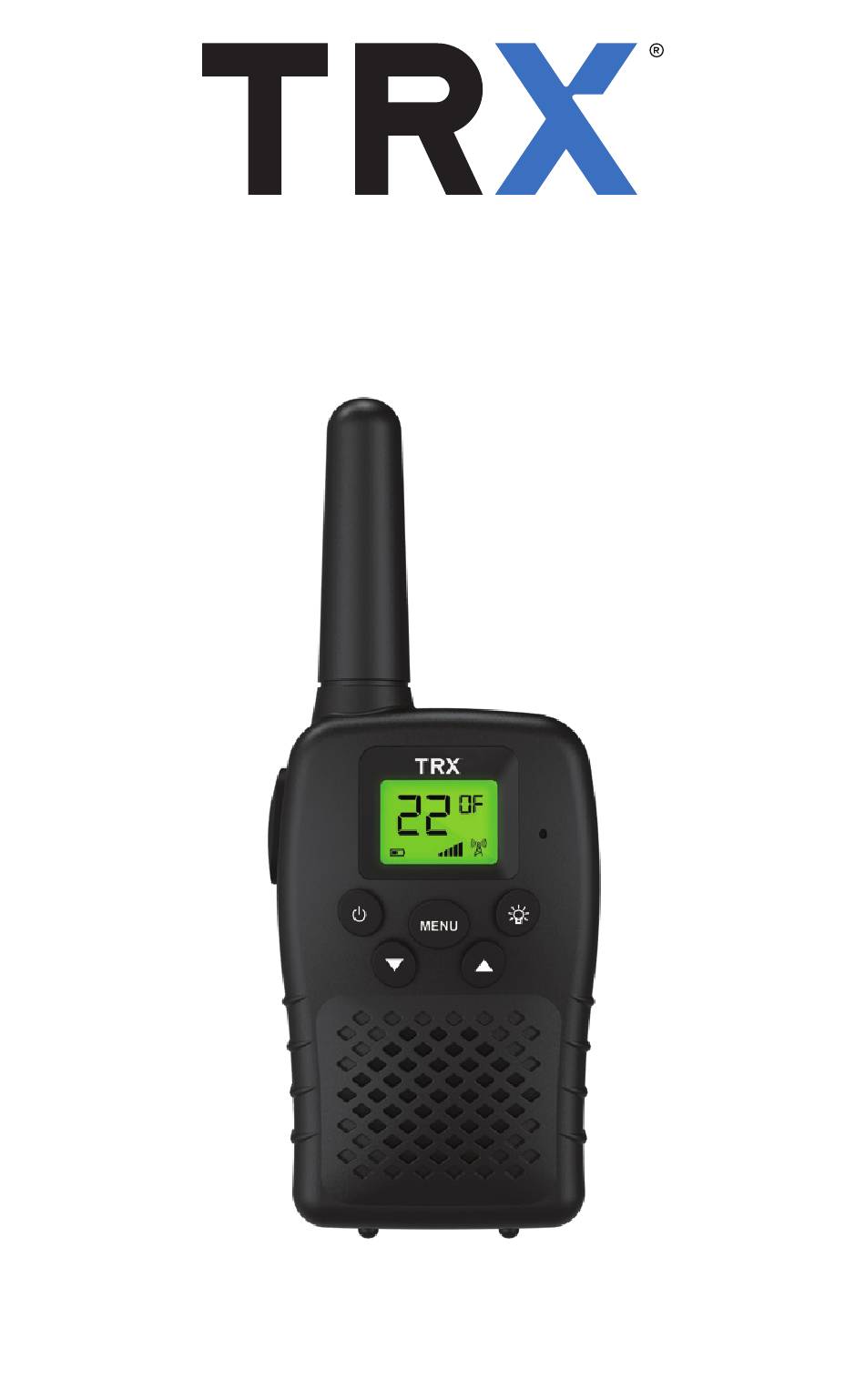

- Page 1 TRX-05 SERIES UHF CB RADIO TRX-05W USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS CAUTIONS AND RECOMMENDATIONS ....3 USER LICENSE INFORMATION ......4 INTRODUCTION........... 4 Features ............5 Product Overview .......... 6 LCD Screen ........... 7 GETTING STARTED ..........7 Battery Information ........7 Inserting The Batteries ......... 8 USING RECHARGEABLE BATTERIES ....8 OPERATION ............ - Page 4 Roger Beep ..........13 Backlit Display ........... 14 Battery Save Function ......... 14 Built-In Led Torch ........14 Button Lock ..........14 Specifications ..........15 7.10 UHF Channels & Frequencies ....15 7.11 UHF Frequency List ........17 WARRANTY TERMS & CONDITIONS ....19 NOTES ..............
-
Page 5: Cautions And Recommendations
CAUTIONS AND RECOMMENDATIONS • This UHF CB Handheld Radio is not waterproof. Do not use near or around water or moisture. • If you carry any kind of personal medical device, please consult a doctor before using the Radios. • Do not use the Radios in a potentially explosive setting (e.g. -
Page 6: User License Information
Thank you for purchasing this TRX-05XX series UHF 80 Channel CB Radio. Light and easy to use, TRX compact UHF CB’s are ideal for kids and family activities. Featuring an inbuilt LED torch, these UHF CB’s are great for camping, holidays, workplaces and anywhere reliable short-range communication is required. -
Page 7: Features
FEATURES • Up to 3km* communication range • 80 channels • 0.5W Transmit power • Backlit LCD display • Battery Level display • Channel scan • VOX (Hands free function) • Auto Squelch • 10 different call tones • 38 CTCSS Privacy codes •... -
Page 8: Product Overview
PRODUCT OVERVIEW 1. PPT (Transmit) 7. Menu / Lock Button Button 8. LCD Screen 2. Power On/Off 9. Microphone Button 10. Torch Button 3. Channel Down / Squelch Button 11. Channel Up / Scan Button 4. Speaker 12. USB Charging Port 5. -
Page 9: Lcd Screen
LCD SCREEN 1. Channel Indicator 4. Transmit/Receive Indicator 2. Battery Level Indicator 5. Volume Level 3. CTCSS Code / OFF GETTING STARTED BATTERY INFORMATION 1. Each Radio uses 3 x AAA alkaline or 3 x rechargeable AAA batteries for power (not included). -
Page 10: Inserting The Batteries
6. Re-install the belt clip as required. USING RECHARGEABLE BATTERIES TRX CB radios can be powered using rechargeable Ni-MH batteries and are supplied with a direct USB charging cable for each CB. NOTE: You can only use the direct USB charging cable for rechargeable batteries. -
Page 11: Operation
source port. Charging time is approximately 12 hours. OPERATION POWER ON/OFF 1. Switch on the Radio: Press the Power button The CB will beep the indicate it is powered up and the LCD screen will illuminate . 2. Switch off the Radio: Press and hold on the Power button ... -
Page 12: Transmit
TRANSMIT 6.4.2 When you press the PTT Transmit button, the Radio switches to Transmission mode. 1. Hold the device in a vertical position with the Microphone 3-5cm away from your mouth. 2. While holding the PTT button, speak into the microphone in a normal tone of voice. -
Page 13: Ctcss Privacy Channels
CTCSS PRIVACY CHANNELS Continuous Tone-Coded Squelch System or CTCSS is used to reduce the annoyance of listening to other users on a shared two-way radio communications channel. It is sometimes referred to as privacy channels or sub-channels since it has the effect of creating multiple virtual channels which are all using the same radio frequency. -
Page 14: Channel Scan
1. Press the MENU button three times: the current VOX setting – “OF”, “1”, “2” or “3” - will flash on the display with the VOX icon. 2. Press UP button to set the VOX sensitivity level. - There are three levels – 1, 2, 3. Level 3 is the highest sensitivity level 3. -
Page 15: Squelch Off Function
SQUELCH OFF FUNCTION Squelch blocks the background noise while there are no transmissions on the selected channel present. For weak signals, you can disable squelch by pressing and holding the DOWN button. CALL TONES Call tones are a separate tone that can be transmitted by the CB to alert other listeners that a transmission is just about to commence. -
Page 16: Backlit Display
1. Press the MENU button 5 times: “RO” will be displayed on the LCD screen. 2. Press the UP /DOWN button enable or disable the Roger beep – turn it ON or OFF. 3. Press the PTT button to confirm your selection and return to the standby mode. -
Page 17: Specifications
SPECIFICATIONS Channels: RF Output Power: 0.5W max Frequency: Battery: 476.4250 – 477.4125 3 x AAA (not included) Range: Up to 3km in an open area UHF CHANNELS & FREQUENCIES 7.10 LEGALLY RESTRICTED Channel 5 and 35 These are reserved as Emergency channels and should only be used in an Emergency. - Page 18 Channel 18 RV – Caravanner and Campers Convoy Channel Channel 29 HWY – road safety channel Pacific Hey, Pacific Motorway (NSW & QLD) Channel 40 Australia wide road safety channel – primarily used by Truckies and Pilot Vehicles. GENERAL CHANNELS Channels 1-8 &...
-
Page 19: Uhf Frequency List
UHF FREQUENCY LIST 7.11 Below is a complete listing of the channels available and their corresponding frequencies: CHANNEL FREQUENCY CHANNEL FREQUENCY Channel 1 476.4250 Channel 22 476.9500 Channel 2 476.4500 Channel 23 476.9750 Channel 3 476.4750 Channel 24 477.0000 Channel 4 476.5000 Channel 25 477.0250... - Page 20 UHF FREQUENCY LIST CONT' CHANNEL FREQUENCY CHANNEL FREQUENCY Channel 43 476.4875 Channel 66 477.0625 Channel 44 476.5125 Channel 67 477.0875 Channel 45 476.5375 Channel 68 477.1125 Channel 46 476.5625 Channel 69 477.1375 Channel 47 476.5875 Channel 70 477.1625 Channel 48 476.6125 Channel 71 477.1875...
-
Page 21: Warranty Terms & Conditions
WARRANTY TERMS & CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian & New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. - Page 22 in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you.
-
Page 23: Notes
NOTES... - Page 26 V1.0 All Images, Information and Content are Copyright © 2020 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz www.trx-uhf.com.au | www.trx-uhf.co.nz...
