Installation and Operation Manual
RM01-001
Remote Memory
SM77
ISSUE 1.01
Northern Airborne Technology Ltd.
1925 Kirschner Road
Kelowna, BC, Canada.
V1Y 4N7
Telephone (250) 763-2232
Facsimile (250) 762-3374
Issued on the authority of Northern Airborne Technology Ltd.
Copyright 2009
The document reference is online, please check the correspondence between the online documentation and the printed version.
Advertisement
Table of Contents
Related Manuals for Nat RM01-001
Summary of Contents for Nat RM01-001
- Page 1 Installation and Operation Manual RM01-001 Remote Memory SM77 ISSUE 1.01 Northern Airborne Technology Ltd. 1925 Kirschner Road Kelowna, BC, Canada. V1Y 4N7 Telephone (250) 763-2232 Facsimile (250) 762-3374 Issued on the authority of Northern Airborne Technology Ltd. Copyright 2009 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 2 The document reference is online, please check the correspondence between the online documentation and the printed version.
-
Page 3: Table Of Contents
RM01-001 Remote Memory SM77 Installation and Operation Manual Table of Contents Section Title Page Description Introduction Product Description Design Features Specifications 1.4.1 Electrical Specifications 1.4.2 Physical Specifications 1.4.3 Environmental Specifications 1.4.4 Product Approval Installation Introduction Unpacking and Inspection 2.2.1 Warranty... - Page 4 The document reference is online, please check the correspondence between the online documentation and the printed version.
-
Page 5: Description

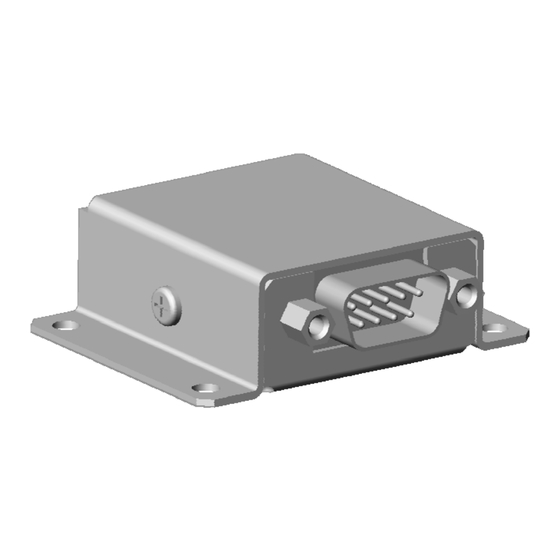

Information in this section consists of product description, design features and specifications for the RM01-001 Remote Memory (RM01). The RM01 has been developed for use in the Northern Airborne Technology Ltd (NAT) Digital Audio Communication System (DACS) but can be used in other applications as appropriate. -
Page 6: Specifications
RM01-001 Remote Memory SM77 Installation and Operation Manual Specifications 1.4.1 Electrical Specifications Input Signals Input Operating Voltage The RM01 requires a conditioned +5 Vdc power supply such as that provided by an AMU50. Nominal Operating Input Voltage 5.0 Vdc Maximum Current: 0.1 A @ 5.0 Vdc... -
Page 7: Product Approval
RM01-001 Remote Memory SM77 Installation and Operation Manual 1.4.4 Product Approval 1.4.4.1 FAA: TSO-C139 When installed as part of the Northern Airborne Technology Ltd DACS: FAA: TSO-C139 (RTCA/DO-214 Class Ib, RTCA/DO-160E, RTCA/DO-178B Level C) Refer to SM76 AMU50-001 Audio Management Unit Installation and Operation manual for further installation compliance details. - Page 8 The document reference is online, please check the correspondence between the online documentation and the printed version.
-
Page 9: Installation
NAT dealer, to be free of defects in workmanship or performance. This warranty covers all materials and labour, but is exclusive of any transport to deliver the defective unit to and from NAT or its designated warranty repair center, or any labour to remove or re-install the defective unit in the aircraft. -
Page 10: Cautions
RM01-001 Remote Memory SM77 Installation and Operation Manual 2.4.2 Cautions CAUTION: Do not bundle any lines from this unit with transmitter coax feed lines. Do not bundle any logic, audio, or DC power lines from this unit with 400 Hz synchro wiring or AC power lines. -
Page 11: Post-Installation Checks
RM01-001 Remote Memory SM77 Installation and Operation Manual 2.4.5 Post-Installation Checks 2.4.5.1 Voltage/Resistance Checks Do not attach the RM01 until the following conditions are met. Install the AMU50 or similar audio management unit and check the following: a) Check pin <6> for RM01 ground (ground return to AMU). -
Page 12: Installation Drawings
RM01-001 Remote Memory SM77 Installation and Operation Manual Installation Drawings DRAWING REV. DESCRIPTION TYPE SERIAL No. RM01\001\403-0 1.21 Remote Memory Interconnect 3000 and up RM01\001\405-0 1.00 Remote Memory Connector Map 3000 and up RM01\001\521-0 1.01 Remote Memory Environmental Qual. Form... - Page 13 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 14 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 15 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 16 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 17 The document reference is online, please check the correspondence between the online documentation and the printed version.
- Page 18 The document reference is online, please check the correspondence between the online documentation and the printed version.
-
Page 19: Operation
SM77 Installation and Operation Manual Section 3 Operation Introduction Information in this section consists of the functional and operational procedures for the RM01-001 Remote Memory (RM01). General Information The RM01 is a Remote memory unit for the Northern Airborne Technology Ltd. (NAT) Digital Audio Communication System (DACS). - Page 20 The document reference is online, please check the correspondence between the online documentation and the printed version.
