Work Sharp Guided Sharpening System Manual

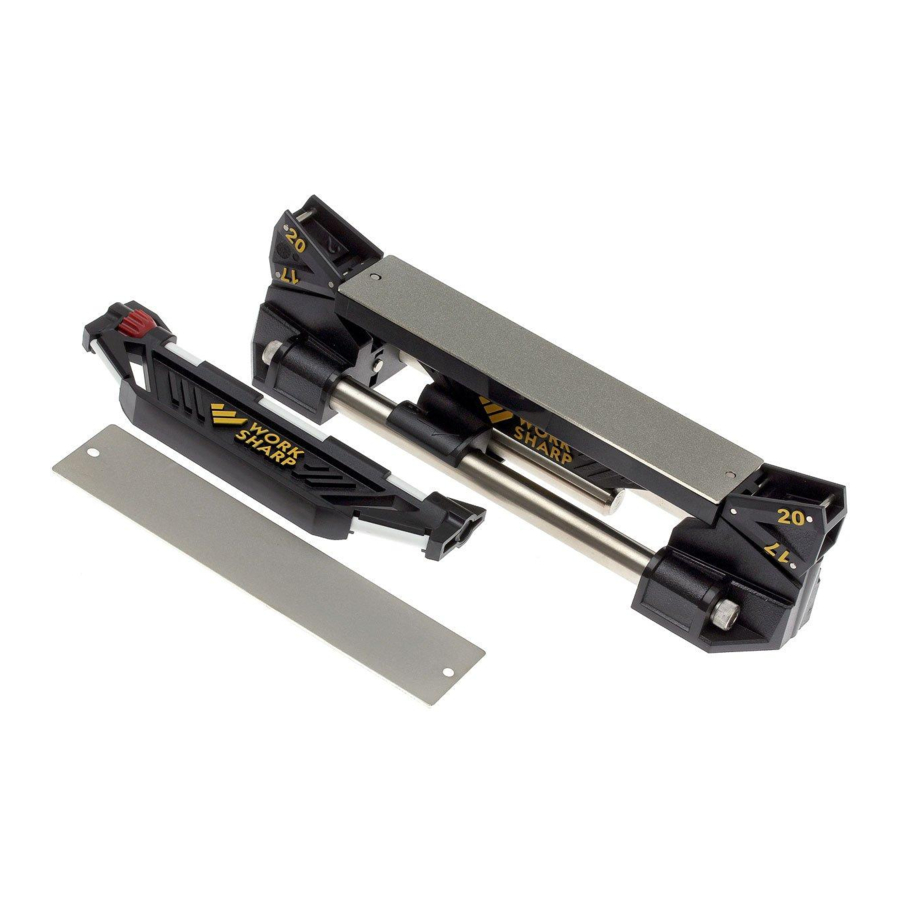

Sharpener comes ready to use with the 320 Grit Diamond Plate and 20˚ Angle Guides installed.
Angle Guides and Diamond Plates are held in place with magnets – lift o to remove.
2 GRIT LARGE CERAMIC ROD
MEDIUM CERAMIC ROD
6" DIAMOND PLATES
PLATE HOLDER
PIVOT RESPONSE LOCK
SHARPENING PLATFORM
serrations
1. Match the size of serration to the small, medium or large
ceramic rod, and place the serration onto the ceramic rod.
2. Matching the bevel angle of the serration, slide the blade
back and forth until a burr is raised. Repeat for each serration.
3. Remove the burr by lightly sliding the at side of the
serrations along the ne ceramic rod.
scan for video
WARNING: To minimize the risk of injury, always use
proper eye and respiratory protection. Use only as
directed in the Work Sharp User's Guide.
WARNING! CHOKING HAZARD!
Small Parts - Not for children under 3-yrs.
Designed, calibrated and quality
checked in Ashland, OR
WorkSharpTools.com/GSS
25° BUILT-IN ANGLE GUIDES
SMALL CERAMIC ROD
17° AND 20° ANGLE GUIDES
tools
1. Attach the coarse diamond plate to the plate holder, and
hold the sharpening platform like a sanding block.
2. Secure the dull tool to a at surface, or clamp in a vise.
3. Run the diamond abrasive along the cutting edge of the
tool, using light to medium pressure. Continue until any
edge damage is removed and the cutting edge is sharp.
TIP: Some tools are best sharpened with
only the diamond plate
Darex, LLC
210 E Hersey St.
Ashland, OR 97520
1-800-597-6170
WorkSharpTools.com
PP0003344 Rev 1 6/19
sharpening a knife
1A 1B
curved Blades
pivot-response
unlocked
2
3
honing a knife
A
set up
a
. Remove the plate holder, and insert the Guided Field
Hone (listen for a "click").
b
. Rotate the red knob to select the desired abrasive:
Fine (smooth): regular honing
B
Coarse (ribbed): touch-up sharpening
while in the eld or sharpening
COARSE
recurved blades
Hooks (2 grooves): sh
hooks and other
ne points
2O° ANGLE GUIDE FOR HUNTING & POCKET KNIVES / 17° ANGLE GUIDE FOR KITCHEN
1. Install Angle Guides and select the Pivot Response Lock position:
straight blades
A
. Slide to the unlocked position for sharpening curved blades.
B
. Slide to the locked position for sharpening straight blades.
2. Rest the knife blade on the Angle Guide to establish the proper
edge angle.
3. While maintaining the proper angle, lightly push the edge of the
blade across the diamond plate. Keep the blade perpendicular to
the sharpening platform.
For curved blades (sharpening with the plate holder unlocked),
allow the plate holder to pivot and follow the curve of the blade.
pivot-response
TIP: Use light pressure for sharpest edge and longest abrasive life.
locked
TIP: Stop before the tip of the blade leaves the edge of the abrasive.
4. Repeat step 3 until a burr develops.
TIP: Check for a burr
by brushing ngers
across and away
from the blade edge.
5. Use the same technique for the other side of the blade, starting
from the opposite end of the sharpener and pulling the blade
toward you. (Or switch hands and ip the knife over, using the
push technique above – step 3)
TIP: For a consistent bevel, make the same number of passes on each
side of the blade.
Plate holder pivots to follow curved blades.
6. Remove the coarse diamond plate and install the ne diamond
plate. Repeat steps 2-5, using light pressure and alternating sides
with each stroke.
7. Now proceed to hone your knife following the instructions below.
1. Rest the knife blade on the angle guide to
establish the proper angle.
1
honing
2. While maintaining the proper angle, lightly
push the edge of the blade along the
ceramic rod until the tip stops at the end of
the rod. Do not slide the tip of the blade o
the ceramic rod.
3. Use the same technique for the other side
of the blade – starting from the opposite
end of the sharpener and pulling the blade
toward you.
(Or switch hands and ip the knife over,
using the push technique in step 2.)
TIP: Alternate sides with each stroke
4. Repeat this process 10-15 times to ensure
burr removal. Decrease pressure with each
stroke, nishing with only the weight of
the blade.
5. Enjoy your sharp knife!
TIP: Clean with warm soapy water as needed.
(Do not use honing oils with ceramic hones.)
Burr
Cutting
Edge
Burr
Use the same technique
to hone straight and
curved blades.
Flip for more instructions
