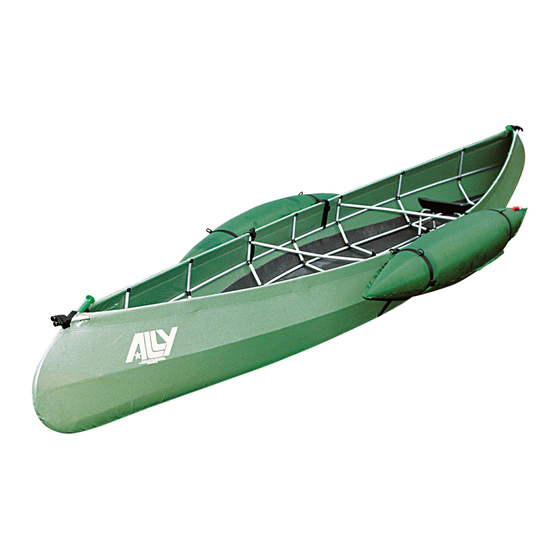

Summary of Contents for Bergans ALLY Series
- Page 1 KANO Monteringsanvisning CANOE Assembly instructions FALTKANU Montageanleitung 2017...
- Page 2 Photo: WILD PROJECT...
- Page 3 TILBEHØR/ ACCESSORIES/ ZUBEHÖRTEILE Forsterkningsstripe 10 cm x 5,5 m Rep. sett Ekspedisjons sett Grønn, mørk grønn, rød, sort Grønn, rød Grønn, rød Lim 100ml Reinforcement strips 10 cm x 5,5 m Repair kit Expedition kit Glue 100ml Green, dark green, red, black Green, red Green, red Kleber 100ml...
- Page 4 Hjelp til montering? Skann koden og se Ally monterings-video. Photo: WILD PROJECT DETTE BØR DU VITE OM DIN ALLY KANO Ally sammenleggbar kano er utviklet og produsert i Norge. Lav vekt, styrke og stor fleksibilitet har gjort den til førstevalg på en rekke ekspedisjoner over hele verden.
- Page 5 MONTERINGSANVISNING 1. En ny Ally kano leveres demontert i kartong. Pakk ut 2. Rull ut matten. Sorter de tverrgående spantene 3. Legg duken på siden.Tre esingrørene (2 stk.) på plass 4. Brett duken i åpen posisjon. Legg flytematta inn og sjekk at alle delene er med i henhold til listen over etter størrelse.
- Page 6 DEL-OVERSIKT 15´ Standard 18´ Standard 16,5´ Standard 16,5´ 18´ 16´ 15,5´ 17´ 15´ Standard Standard Standard Standard Standard Standard 1607 1607 1702 185070 185070 1607 185081 185081 1608 1608 1703 1608 1609 1609 1704 185093 185093 1609 185100 185100 1610 1610 1705 1613...
- Page 7 DEL-OVERSIKT 15,5´ Standard 17´ Standard 15´ Standard 16,5´ Standard 18´ Standard 16´ Standard Baug/Stevn 1706 185700 1602 1602 1602 185700 Kjøl (målt uten tapp) 3655mm 1803 4148mm 1701 3560mm 185501 3786mm 185701 4216mm 1503 3208mm 1603 Innerbunn 1709 4330mm 4130mm 185702 4566mm 1506...
- Page 8 Need instructions? Scan code for Ally assembly video. Photo: Øystein Køhn WHAT YOU SHOULD KNOW ABOUT YOUR FOLDING CANOE The Ally folding canoe is developed and manufactured in Norway. Its low weight, great flexibility and durable construction have made it the choice of expeditions worldwide.
- Page 9 ASSEMBLY INSTRUCTIONS 1.The Ally folding canoe is delivered disassembled in a 2. Unroll the mat and sort the cross ribs by size. 3. Lay the skin down flat on its side and insert the 4. Unfold the skin to its open position. cardboard box.
-
Page 10: Parts List
PARTS LIST 15´ Standard 18´ Standard 16,5´ Standard 16,5´ 18´ 16´ 15,5´ 17´ 15´ Standard Standard Standard Standard Standard Standard 1607 1607 1702 185070 185070 1607 185081 185081 1608 1608 1703 1608 1609 1609 1704 185093 185093 1609 185100 185100 1610 1610 1705... - Page 11 PARTS LIST 15,5´ Standard 17´ Standard 15´ Standard 16,5´ Standard 18´ Standard 16´ Standard Stem (bow & stern) 1706 185700 1602 1602 1602 185700 Keel rod without plug 3655mm 1803 4148mm 1701 3560mm 185501 3786mm 185701 4216mm 1503 3208mm 1603 Inner chine rod 1709 4330mm...
- Page 12 Benötigen Sie Anweisungen? Scannen Sie den Code für Ally Montagevideo Photo: Fredrik Schenholm WAS SIE ÜBER IHR ALLY FALTKANU WISSEN SOLLTEN Das Ally Faltkanu wird in Norwegen entwickelt und produziert. Geringes Gewicht, Robustheit und hohe Flexibilität haben es zur ersten Wahl bei zahlreichen Expeditionen auf der ganzen Welt gemacht.
- Page 13 ALLY FALTKANU MONTAGEANLEITUNG 1. Ein neues Ally Kanu wird demontiert in einem Karton 2. Rollen sie die Matte aus. Sortieren Sie die 3. Legen Sie die Bootshaut auf die Seite. Schieben Sie die 4. Breiten Sie die Bootshaut in offener Position aus. Legen Sie Dollbordrohre in die dafür vorgesehenen Kanäle.
- Page 14 SPANTENÜBERSICHT 15´ Standard 18´ Standard 16,5´ Standard 16,5´ 18´ 16´ 15,5´ 17´ 15´ Standard Standard Standard Standard Standard Standard 1607 1607 1702 185070 185070 1607 185081 185081 1608 1608 1703 1608 1609 1609 1704 185093 185093 1609 185100 185100 1610 1610 1705 1613...
- Page 15 ERSATZTEILÜBERSICHT 15,5´ Standard 17´ Standard 15´ Standard 16,5´ Standard 18´ Standard 16´ Standard 1706 185700 1602 1602 1602 185700 Steven 3655mm 1803 4148mm 1701 3560mm 185501 3786mm 185701 4216mm 1503 3208mm 1603 Kielspant (ohne Stöpsel) 1709 4330mm 4130mm 185702 4566mm 1506 3748mm 4187mm...
- Page 16 WWW.BERGANS.NO FACEBOOK.COM/BERGANSOFNORWAY INSTAGRAM: @BERGANSOFNORWAY WWW.BERGANS.COM YOUTUBE.COM/BERGANSOFNORWAY WWW.BERGANS.DE TWITTER: @BERGANS Photo: Petter Reinemo...
