ETD Wail Installation Manual

Phone 888.893.3308 • Fax 561.427.0974 • Email customerservice@extremetacticaldynamics.com

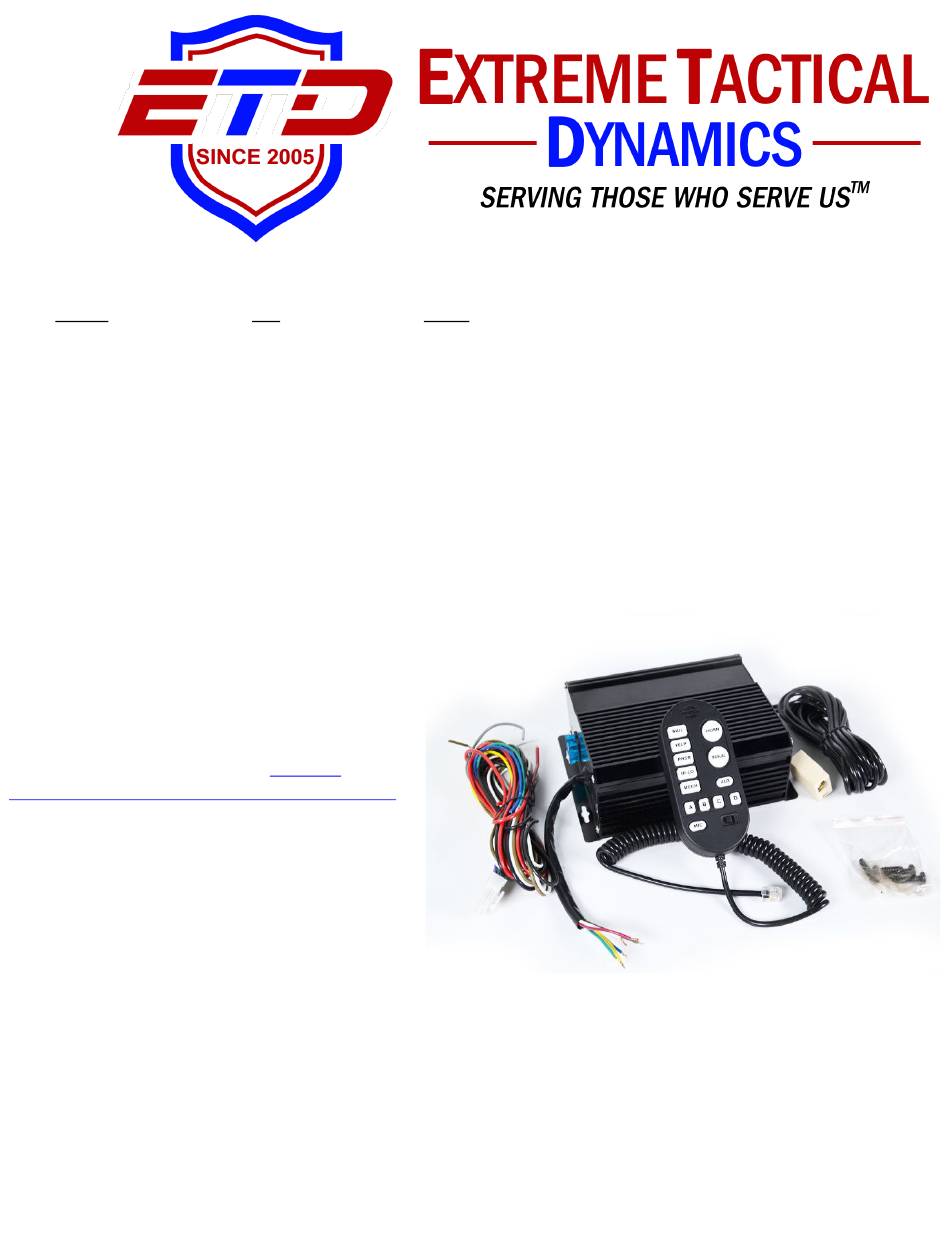

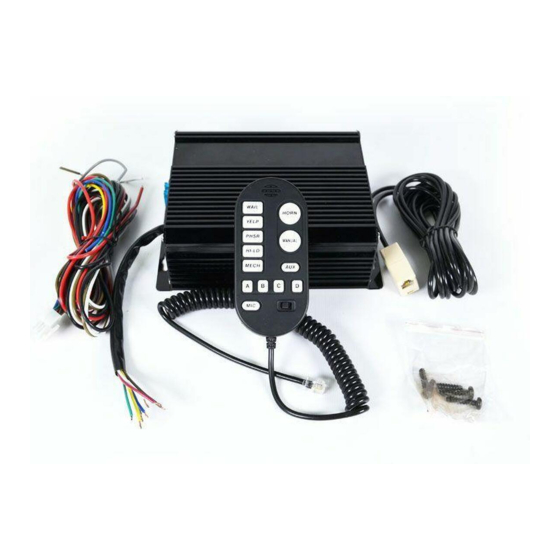

100 Watt WAIL Police and Emergency Vehicle Siren Wiring and
This guide provides the general guidelines necessary to install Extreme Tactical Dynamics' Wail
siren. Because proper installation of the Wail siren requires a thorough understanding of automotive
electronics, we recommend the siren be installed by an EVT. Emergency vehicle technicians are certified to
maintain, install, or repair emergency vehicle equipment.
Warning
The Wail siren will create loud siren tones.
Exposure to these tones without proper hearing
protection could cause ear damage or hearing
loss. To determine safe siren tone exposure
tones and times, please consult
Occupational Noise Exposure Section
Until safe exposure times have been determined
anyone working near the siren when activated
should wear adequate hearing protection.
Wail Siren Remote Control Basic Wiring
Instructions
Port 1 - WHITE wire for Speaker Control
•
Port 2 - BLACK negative/ground wire
•
Port 3 - NOT IN USE
•
Port 4 - AMBER wire for A Light
•
Port 5 - GRAY wire for B Light
•
Port 6 - BROWN wire for Speaker Control
•
Port 7 - RED power wire
•
Port 8 - RED +VCC (12 volts DC) Wire (for all lights)
•
Port 9 - BLUE wire for C light
•
Port 10 - GREEN wire for D Light
•
1410 Park Lane South Suite 4 - Jupiter, Fl – 33458
Installation Guide
OSHA's
1910.95.
Extreme Tactical Dynamics ©, 2018 1
