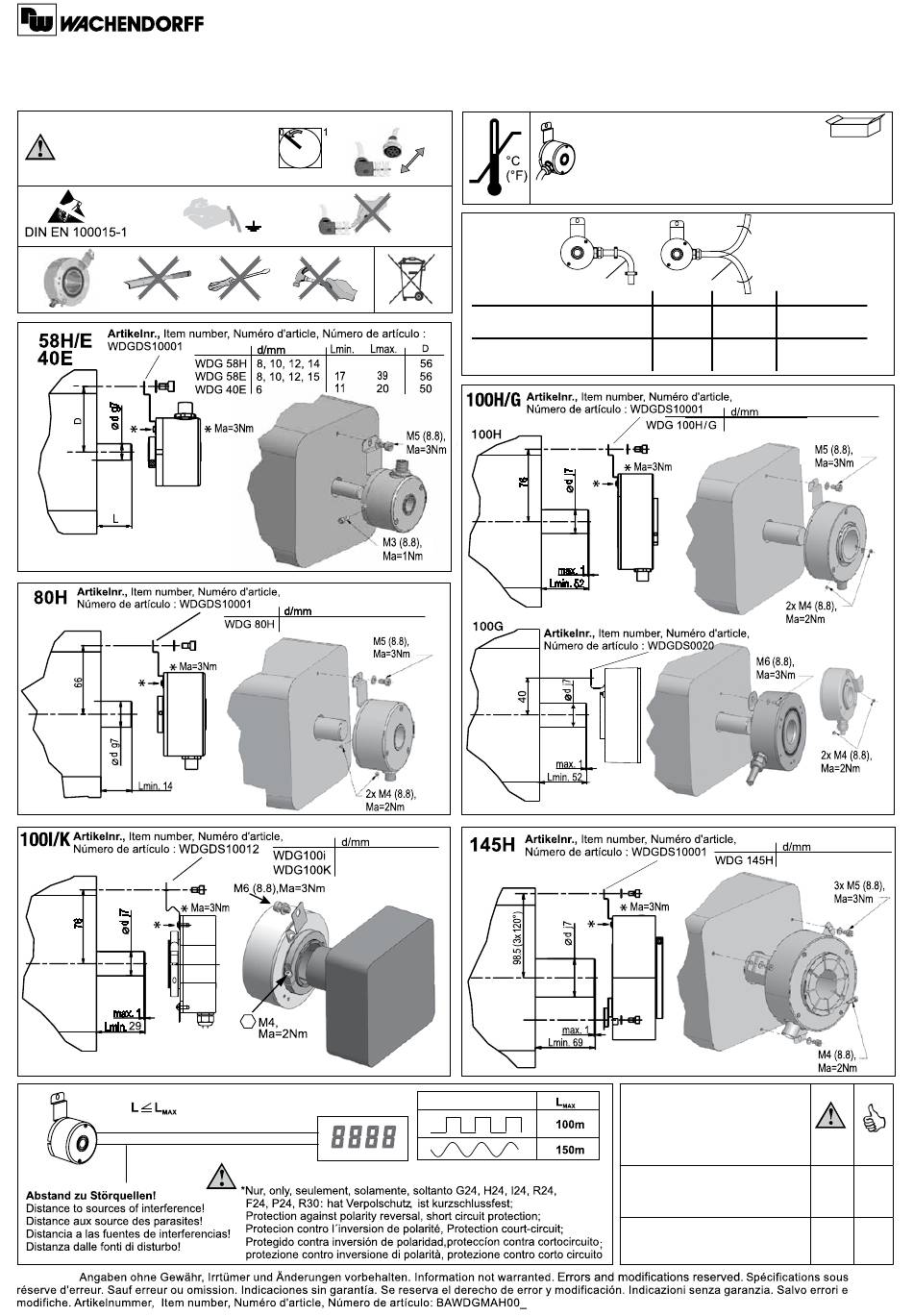

Wachendorff WDG 58H Series Assembly Instructions

Montageanleitung Hohlwellengeber,
Assembly instructions hollowshaft encoder, Notice de montage codeur rotatif à arbre creux,
Instrucciones de montaje encoder ad albero cavo, istruzioni di montaggio encoders de eje hueco.
Montage nur qualifiziertes Personal
Assembly only qualified personnel
Montage pair qualifié personnel
Montaje solamente personal calificado
Montaggio solo personall qualificato
15.08.2014
10, 12, 14, 15, 16, 18, 20, 25
30, 38, 42
45
Wachendorff Automation GmbH & Co. KG
Industriestraße 7 • D-65366 Geisenheim
Tel.: +49 (0) 67 22/ 99 65 -10
Fax: +49 (0) 67 22/ 99 65-70
eMail: wdg@wachendorff.de
www.wachendorff.de
-20 °C ... +80 °C / 1Vss: -10 °C ... +70 °C
(-4 °F ... +176 °F / 1 Vss: 14 °F ... +158 °F)
Option:
-40 °C ... +80 °C
(-40 °F ... +176 °F)
R1
Kabel ø, cable, Câble, Cable, cavo
≤ 7 mm
> 7 mm
≤ 7 mm
> 7 mm
Frühwarnausgang
Early-warning output
Sortie d'alerte
Salida de advertencia prematura
uscita di preavvertimento
145H -> G24/I24/G05/I05
80H -> SIF/G24/I24/G05/I05/524
100G/H/I/K -> SIF
58H -> G24/I24/G05/I05/524
58E -> G24/I24/G05/I05/524
40E -> G24/I24/G05/I05
11
-30 °C...+80 °C
(-22 °F...+176 °F)
R2
R1 R2 Temperatur
31,5 mm 94,5 mm T > -20 °C (-4 °F)
41,5 mm 124,5 mm T > -20 °C (-4 °F)
46,5 mm 139,5 mm T > -40 °C (-40 °F)
62,3 mm 186,9 mm T > -40 °C (-40 °F)
25, 1Z (=25.4), 28, 30, 32, 35,
36, 38, 40, 42, 45
45, 48, 50, 55, 60,
65, 72
IRLED IRLED
OPEN-
Collector
low
high
high
low
