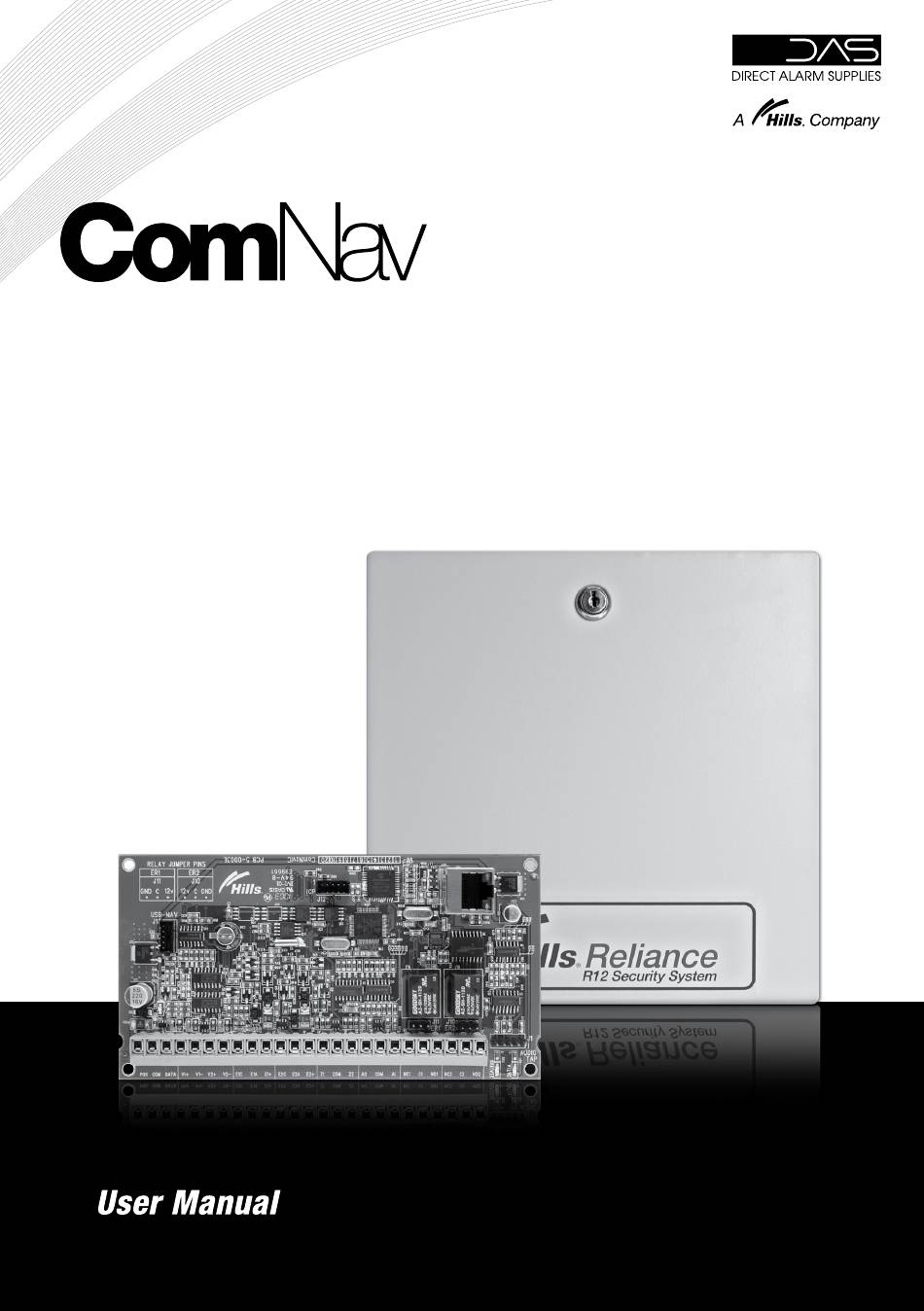

Hills DAS ComNav User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAS ComNav and is the answer not in the manual?

Questions and answers

Summary of Contents for Hills DAS ComNav

  • Page 2: Table Of Contents

    Time and date ........................14 Time .......................... 14 Date ........................... 14 Phone number configuration ..................... 15 Alarm Phone numbers, 1, 2 & 3 ................15 Divert phone numbers 1, 2 & 3 ................. 15 Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 3 Record an output name ....................42 Record an output name using library words ..............42 Record a room name ......................43 Record a room name using library words ................. 43 Room Name – library word configuration ................. 43 Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 4 Main Login Menu (Web) – Standard User Code ................47 Status and Area Control ....................... 48 Voice Reporting..........................49 Users ............................50 SMS Reporting ..........................51 Call Divert............................. 52 E-Mail Reporting........................... 53 System Status Message Table...................... 54 Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 5: Introduction

    Introduction The Hills ComNav is an intuitive interface module that may be added to your Hills Reliance security system. It allows authorised users to remotely access and control the security system. Access to the ComNav can be via any off site touch-tone telephone, web browser or locally via WiFi using a powerful iPhone application.

  • Page 6: Warning

    (24) months from the date of purchase. If any defect appears during the warranty period contact your service provider. Hills Industries assumes no liability for consequential or indirect damage, and accepts no responsibility for repairing damage to the product caused by misuse, careless handling, or where repairs have been made by others.

  • Page 7: Glossary Of Terms

    Having a Self Monitored system is more Self Monitored: economical, however it does not provide as many features. Hills security systems support both Back-to-Base Monitoring and Self Monitoring. Short Message Service (SMS) is a communication service component of the...

  • Page 8: Legend

    This could be a multi digit number, EG: Zone 128 = 128# Navigation keys required to move to the desired menu Start your recording Sub menu of the main menu Sub, Sub menu of the main menu Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 9: Feature & Benefits

    RTC – “Real Time Clock” is an onboard component that holds the current time date setting. A built-in power-sense circuit detects power failures and automatically switches to the backup supply. This significantly reduces the chance of a "loss of date \ time" in periods of extended power outage. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 10: Phone Line Connection, And Network Connection

    Call divert – This feature will call up to three different phone numbers when a visitor presses the call button on the outside door station whilst the Hills Reliance security system is armed. Once the call is connected, a bi directional conversation can take place and the called party has the ability to operate the onboard relay allowing access to the premises.

  • Page 11: Accessing The Comnav - Via A Touch Tone Phone

    Press 5 for message bank Press 0 for system configuration* Press # to exit and disconnect the session * Denotes master code access only [PIN] The above sequence will be shown through out this manual as Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 12: Main Menu - Structure

    0.5.8 SMS Phone Number Two 0.5.9 SMS Phone Number Three 0.6 Voice Message 0.6.1 Exit message 0.6.2 Entry message 0.6.3 User name 0.6.4 Zone name 0.6.5 Area name 0.6.6 Output name 0.6.7 Room name 0.6.8 System name Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 13: Main Menu - Explained

    - To commence two – way communication mode – Allows for a remote user to connect and engage in a two-way voice call with a front door stations / VoiceNavs. - To move back to the main menu Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 14: Output Control

    - Exit message – A 10 second message that will be played after arming the security system - Entry Message – A 10 second message that will be played after disarming the security system - To move back to the main menu Note: Existing messages will be overwritten. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 15: System Configuration

    - Area Entry time - Independent entry times can be assigned for up to eight areas, values are from 10 seconds to 255 seconds - Area Exit time – Independent exit times can be assigned for up to eight areas, values are from 10 seconds to 255 seconds Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 16: Phone Number Configuration

    Divert phone numbers 1, 2 and 3 will be called when an intercom call is initiated from an outdoor station. The outdoor station must be interfaced with the Hills Reliance security system via the ComNav. The Hills Reliance security system must also be in the armed condition SMS phone numbers 1, 2 and 3 will be sent text messages, upon the activation of certain events from within the security system.

  • Page 17: Voice Message Recording

    *Denotes the ability to configure name using the word library - To move back to main menu Note: You do not need to wait for the Personal Voice Guide (PVG) to finish talking before keying in your selection. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 18: Main Menu Controls And Examples

    Security System Status Area Control To Control Zone Bypass Event History The ComNav will announce the Hills Reliance panel status in the following order In Alarm Zone Number / Zone Name System troubles AC power fail, low battery, battery test fail, box tamper, siren trouble, over current fault, time and date loss, communication fault, and telephone line fault.

  • Page 19: Area Control - Single Area

    Press [2] for system control menu Press [2] for area control menu Press [1] to turn off star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 20: Away Arm A Single Area System

    Press [2] for system control menu Press [2] for area control menu Press [3] to set in the stay mode star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 21: Area Control - Multi Area

    Press [2] for system control menu Press [2] for area control menu Press [4] to set all areas in the stay mode star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 22: Disarm All Areas In A Multi Area System

    Press [1] to control an individual area Select an Area number from 1 ~ 8 Press [2], To set in the away mode star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 23: Stay Arm A Single Area In A Multi Area System

    Press [1] to control an individual area Select an Area number from 1 ~ 8 Press [1], To turn off star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 24 Press 0, to bypass / Un-bypass (Toggles zone from un-bypassed to bypassed Or if already bypassed, from bypassed to un-bypassed) star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 25 Press [4] for event history Press [2], for all event history Press # for next event Press 0, for previous event star, moves back to system control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 26 Note: Automatic room answering must be enabled at the VoiceNav code pad for listen in feature to function correctly. Room 9 is the first outside entrance panel. Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 27 Select an output number to control (from 1~16), followed by # Press [2] to turn output Off star, moves back to output control menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 28: Message Bank

    Press #, to record a new message Record 10 second Entry message after the beep. (first time only) star, moves back to message bank menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 29: System Configuration

    Select a new PIN code followed by # (EG: 2508) star, moves back to user configuration menu star, moves back to system configuration menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 30: Disable A Pin Code From A Specific User

    Press the area number to change selection, (EG: deselects area 2) (area / areas can be toggled on / off) star, moves back to user configuration menu star, moves back to system configuration menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 31: Configure User Authority

    User Authority Options Selection Table Reserved Arm / disarm code Arm Only Allowed to bypass zones User code will send open, close Arm only after close window reports Master code authority Must not be be selected. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 32: Time And Date Configuration

    Select the month value from 1 ~ 12, followed by #. (EG: June 6 month) Select a 4 digit year value, followed by #. (EG year 2010) star, moves back to system configuration menu star, moves back to main menu star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 33 Select a new area entry time (10 ~ 255 seconds) followed by #. star, moves back to step 3, select an area number to configure star, moves back to system configuration menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 34 Select a new area exit time (10 ~ 255 seconds) followed by #. star, moves back to step 3, select an area number to configure star, moves back to system configuration menu star, moves back to main menu. star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 35 Divert phone numbers 1, 2 and 3 will be called when an intercom call is initiated from an outdoor station. The outdoor station must be interfaced with the Hills Reliance security system via the ComNav. The Hills Reliance security system must also be in the armed condition SMS phone numbers 1, 2 and 3 will be sent text messages, upon the activation of certain events from within the security system.
  • Page 36 Select a new alarm / divert / SMS phone number, followed by # star. Move back to step 3, phone number selection star, moves back to system configuration menu star, moves back to main menu star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 37 Press 0 followed by # to disable alarm / divert / SMS phone number star. Move back to step 3, phone number selection star, moves back to system configuration menu star, moves back to main menu star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 38: System Configuration

    You may string up to eight words together to achieve your desired description. Please note that voice recording is limited to the first 64 zones, pre-recorded library words must be used for all additional zones above zone 64. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 39: Record An Exit Message

    Press #, to record a new exit message Record 10 second exit message after the beep star, moves back to voice message recording menu star, moves back to system configuration menu star, moves back to main menu star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 40: Record A User Name

    Copy changed recordings, will only add the latest recordings whilst selecting copy-all recordings will overwrite all recordings, new and old. Please contact your security provider to verify how your system is configured. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 41: Record A Zone Name

    Please contact your security provider to verify how your system is configured. For multiple recordings, press * once at step 6, which will take you back to step 4, this will allow additional recordings without exiting the system Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 42: Record A Area Name

    Please contact your security provider to verify how your system is configured. For multiple recordings, press * once at step 6, which will take you back to step 4, this will allow additional recordings without exiting the system Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 43: Record An Output Name

    Please contact your security provider to verify how your system is configured. For multiple recordings, press * once at step 6, which will take you back to step 4, this will allow additional recordings without exiting the system Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 44: Record A Room Name

    Please contact your security provider to verify how your system is configured. For multiple recordings, press * once at step 6, which will take you back to step 4, this will allow additional recordings without exiting the system Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 45: Record A System Name To The Comnav

    Note: This menu will only be presented if your system is configured with VoiceNav code pads, otherwise proceed directly to step 8. Press [1], to copy changed recordings Press [2], to copy all recordings star, disconnects session Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 46: Accessing The Comnav - Via The Onboard Web Server

    Internet. If SSL is enabled your URL will begin with https: instead of http: You will also receive a warning window “There is a problem with this websites security certificate”, choose “continue to this website” to connect to the ComNav. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 47: Welcome Page

    When successfully connected, the ComNav will serve up the “welcome page”. To access the main menu enter the required user name and password as supplied by your security provider. User name: ………………… Password: ………………… Note: Username is case sensitive Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 48: Access Levels

    Welcome to the ComNav Configuration Server! Status and Control This page is being served by the ComNav at the address specified. To configure a specific item select from the list to the left. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 49: Status And Area Control

    Call Divert Email Reporting This menu allows for easy operation of the Hills Reliance security system, from arming and disarming individual areas to reviewing the systems 185 event log. Up to 8 active areas can be displayed, and control can be individual or as a group. Active areas will be populated on the buttons on the right, with the screen shot above showing only one active area, with all zones secure and disarmed.

  • Page 50: Voice Reporting

    Alarm phone numbers 1, 2 and 3 will receive a voice message upon the selected event in the Voice event window being enabled and activated. The voice events are global for all three alarm phone numbers. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 51: Users

    Master Code. Master codes can only create, delete or modify user codes with equal or less authority than themselves. Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 52: Sms Reporting

    Phone Number: 125107 SMS Examples 9Feb 2010 16:14:48 User Arming: Account XXXX – Turn On Area 1 –Fred 9Feb 2010 16:14:48 Panic Button on code pad: Account XXXX – Code pad panic Area 1 Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 53: Call Divert

    Divert phone numbers 1, 2 and 3 will be called when an intercom call is initiated from an outdoor station. The outdoor station must be interfaced with the Hills Reliance security system via the ComNav. The Hills Reliance Call Divert security system must be in the armed condition for call divert to operate.

  • Page 54: Email Reporting

    SMTP Server: ISPs outgoing mail server address, either their actual IP address or their domain name. Port: Selected port used for outgoing mail User Name & Password: As required by your SMTP Server Hills – ComNav User Manual V1.3 www.das.com.au...

  • Page 55: System Status Message Table

    Loss of wireless supervision – This zone is a wireless device and has lost its communication link with the control panel Low battery – This zone is a wireless device and needs its battery changed Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 56 Fire alarm – A fire alarm has been activated at the code pad Panic – A panic alarm has been activated at the code pad Medical – A medical alarm has been activated at the code pad Hills – ComNav User Manual V1.3 www.das.com.au...
  • Page 57 Wall Area Games Outside Warehouse Attic Garage Panic Water Automatic Pantry West Auxiliary Gate Partial Window Back Glass Perimeter Windows Basement Glass break Pool Wireless Bathroom Ground Rear Yard Bedroom Guest Reception Zone Hills – ComNav User Manual V1.3 www.das.com.au...
