Summary of Contents for American National Manufacturing Static LAL 8100

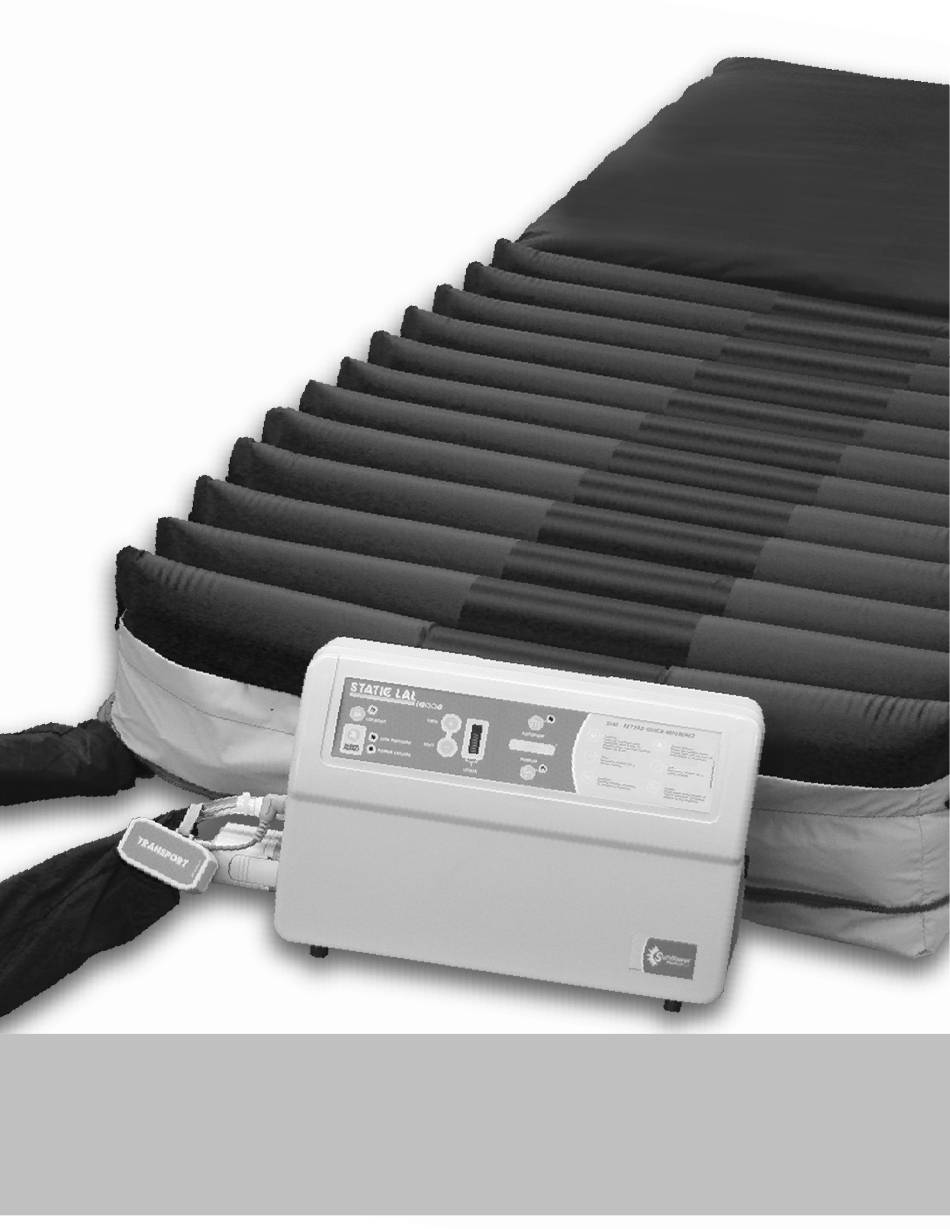

- Page 1 Static Low-Air-Loss Mattress Replacement System Read Entire Manual before Operating Device ANSLAL Uncontrolled Document Rev. 1.0 - 08/26/2008 User Instruction Manual...
-
Page 2: Table Of Contents
8100 LAL Static Low-Air-Loss PLEASE NOTE: It is important that the user read the entire manual before operating this device. USER ASSISTANCE INFORMATION: If you have questions or need assistance with this product, call the company from whom it was purchased, or contact American National at 1-800-854-6295 Table of Contents... -
Page 3: Symbol Definitions
8100 LAL Symbol Definitions Manual Definitions Throughout this manual different type faces and icons are used to aid user readability and understanding of the content. Below are some examples. — Standard Text Used for regular information. — Bold Face Text Emphasizes a word or phrase. -
Page 4: General Warnings And Precautions
8100 LAL General Warnings and Precautions WARNINGS WARNING: DO NOT use this device if the power cord is cut, frayed or loosely connected to the device. WARNING: Electrically Powered Mechanism. Electrical Hazard may occur if device is plugged into inadequate electrical outlet. To avoid electrical shock hazard, make sure unit is plugged into a grounded A/C 110 Volt outlet. -
Page 5: Seven Zones Of Bed Rail Entrapment
8100 LAL Seven Zones of Bed Rail Entrapment WARNING: Bed rail entrapment is a serious health risk that can result in serious injury or even death. The use of bed rails, if they are available, is highly recommended. Failure to use bed rails in raised position could lead to accidental patient falls. Air mattresses have soft edges that may collapse when patients roll to that edge. -
Page 6: Device Information
8100 LAL Device Information PURPOSE OF THE DEVICE The purpose of the Static Low-Air-Loss Mattress System is to provide therapeutic benefit to patients at risk or suffering from pressure ulcers. The active component that has contact with the patient is a specialized, multi-cell air mattress sized to fit a standard medical bed frame. -
Page 7: Unpacking And Set-Up
8100 LAL Unpacking and Set-up Description of the Device: The Static Low-Air-Loss Mattress Replacement System consists of a control unit, power cord, a Low Air Loss Mattress and a waterproof, vapor permeable, easy-to-clean cover. UNPACKING / PARTS BREAKDOWN: Parts Air Blower/Control Unit Power Cord (Hospital Grade) True Low Air Loss Mattress Replacement Mattress Cover... -
Page 8: Operating Instructions
8100 LAL Static Low-Air-Loss Operating Instructions: 1) Remove standard mattress from the bed. 2) Replace standard mattress with the Static Low-Air-Loss mattress. (Be sure air tubing is at the foot end of the bed.) 3) Strap air support mattress to bed frame on all four sides. 4) Place control unit on the footboard of the bed using the two retractable hooks located on the back of the unit. -
Page 9: Keypad Quick Reference
8100 LAL Keypad Quick Reference Alarm Silence - Lockout – Mutes the audible alarm. Locks all functions auto- (Visual light will not turn off matically after 3 mins. To until failure is resolved.) disable, press and hold lockout button for 3 sec. Firm –... -
Page 10: Mattress Cleaning Instructions
8100 LAL Mattress Cleaning Instructions: WARNING and CAUTION: A. It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting B. Hypercarbonate and phenol based solutions should not be used. During Operation: For normal soil, wipe down cover and interior sacs with a standard cleaning disinfectant and wipe off excess moisture with a towel. -
Page 11: Blower Unit Cleaning Instructions
8100 LAL Blower Unit Cleaning Instructions: WARNING and CAUTION: A. Hand clean only. DO NOT place in sterilization room or chamber. B. It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting C. Hypercarbonate and phenol based solutions should not be used. D. -
Page 12: Trouble Shooting Guide
8100 LAL Trouble Shooting Guide WARNING: Only authorized personnel should engage in the troubleshooting process. Troubleshooting by unauthorized persons could result in personal injury or equipment damage. WARNING: DO NOT remove cover. Risk of electrical shock. If mattress is not inflating: Make certain none of the hoses are punctured, kinked or disconnected. -
Page 13: Frequently Ordered Parts
8100 LAL Frequently Ordered Parts The following is a list of parts that are frequently ordered for self replacement and repairs. To aid you in ordering parts, please use the provided product numbers given below for each part. The replacement of some parts not listed here may require sending in the unit to the manufacturer for repairs. -
Page 14: Return/Exchange Goods Policy
Department. Once RA is issued, customer must return all items placed on the RA within five working days from the date of the RA to American National Manufacturing, Inc.. Without an Authorized RA, all items will be returned to the customer at the customer’s expense. -
Page 15: Notes
8100 LAL Notes 15 of 16... - Page 16 8100 LAL American National Manufacturing Customer Service Department 252 Mariah Circle Corona, CA 92879-1751 Phone: 1-800-854-6295 www.americannationalmfg.com All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models. Contact or consult with your dealer to ensure proper equipment sizes, specifications and options.
