AovoPro
Electric Scooter Manual
Manual d'Utilisation
Scooter Electrico Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AovoPro and is the answer not in the manual?

Questions and answers

Алексей
August 6, 2025

Здравствуйте подскажите пожалуйста как разблокировать электросамокат Aovo pro

0
алексей
August 1, 2025

Здравствуйте как сбросить все изменения на самокате аово м365про рбенок увидел в интернете что можно с помощью тормоз+газ+кнопка зайти в секретное меню и поменять скорость в итоге наклацал что теперь на спидометре фиксированно 24 км скорость 1 батарея ни смотря на полный заряд помогите пожалуйста голову ломаю уже 2 недели

0
Наталья
August 1, 2025

Здравствуйте горит буква P , как умтронить

0
JOHN
July 30, 2025

how do you adjust the handle bar stem locking mechanisam

0
Юлия
July 29, 2025

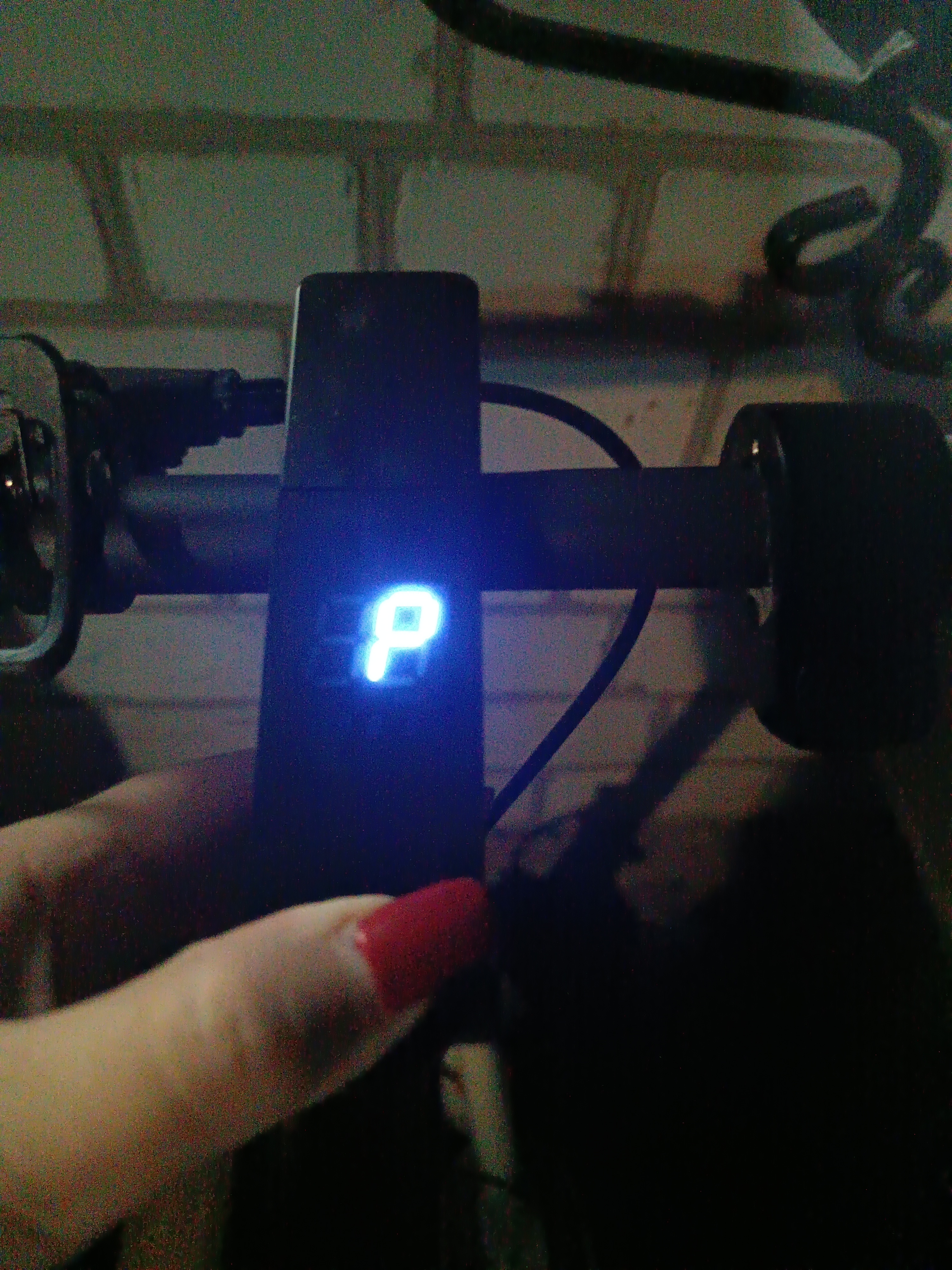

На дисплее горит Р, самокат не выключить, при нажатии на кнопку выключить издаёт сигнал и мигает фонарь

User image 68892c1121e5c
0
Катя
July 6, 2025

Остановка движения,на дисплее ,P

User image 686a7606d4078
0
Jon boy coombe
June 18, 2025

Hi how do i find out what yr & model my scooter is please

0
Артем
June 9, 2025

Здравствуйте,с какого возраста самокат,какой рост минимальный?

0
Карина
June 3, 2025

Как сбросить самокат до заводских настроек?

0
Шухрат
May 19, 2025

Здравствуйте у меня сомакат авова про я не как не могу соединить блутус

User image 682b228ea8920
0

Summary of Contents for Aovo AovoPro

  • Page 1 AovoPro Electric Scooter Manual Manual d’Utilisation Scooter Electrico Manual...

  • Page 2: Table Of Contents

    ..........1. APP download & Functions 2. Téléchargement de l'application et fonctions....05 ............3.APP descargar y funciones ............4. The Device& Accessories ..............5.Assembling the device ................6.Charge the scooter ................. 7.Driving Instructions ............8.

  • Page 3: App Download & Functions

    1. AovoPro APP download & Functions 1.Please search aovopro from APPstore or google play to download and install ontocellphone, you can also scan the right QR code or following link to download the aovopro app:https://apps.apple.com/app/aovopro/ id1484658812 andriod:https://play.google.com/store/apps/details?id =com.zydtech.aovopro 2.After app installed , please press the switch on/off button for 1second to turn on scooter.
  • Page 4 Scooter display function brake speed gear,green is middle speed accelerator switch on/off button speed gear,blank is low speed red is high speed realtime speed battery capacity cruise control open scooter locked...

  • Page 5: Téléchargement De L'application Et Fonctions

    2. Téléchargement de l'application et fonctions 1.Veuillez rechercher aovopro sur APPstore ou Google Play. pour télécharger et installer sur un téléphone portable, vous pouvez également scannez le code QR ou le lien suivant pour le télécharger l'application aovopro: https: //apps.apple.com /app/aovopro/id1484658812 andriod: https: //play.google.com/store/apps/details?id=com...
  • Page 6 Fonction d'affichage du scooter frein vitesse vitesse, vide est basse vitesse le vert est la vitesse moyenne accélérateur bouton allumer / éteindre vitesse vitesse, le rouge est haute vitesse vitesse en temps réel capacité de la batterie activer le régulateur de vitesse scooter verrouillé...

  • Page 7: App Descargar Y Funciones

    2.Después de instalar la aplicación, presione el interruptor de encendido/apagado botón durante 3 segundos para encender el patinete eléctrico. 3.Abra el bluetooth del teléfono celular y abra el aovopro aplicación, el scooter se conecta automáticamente a la App,entonces puedes usarla para encender/apagar la luz yscooter, cambiar la velocidad, configurar el control de crucero o bloquearscooter.
  • Page 8 Función de visualización de scooter freno engranaje de velocidad, verde es velocidad media acelerador botón de encendido / apagado engranaje de velocidad, en blanco es de baja velocidad el rojo es de alta velocidad velocidad en tiempo real capacidad de la batería encienda el control de crucero scooter bloqueado...

  • Page 9: The Device& Accessories

    4. The Device& Accessory Accessory --------------------------------------------------------------------------------------...

  • Page 11: Assembling The Device

    5. Assembling the device 1).fix the steering rod and 2).Set handle bars vertical; open the parking bridge Using hex wrench in the 4. Testing the power switch after packing box to tighten the finish assembling screws on handle bar...

  • Page 12: Charge The Scooter

    6.Charge the scooter Open the cover connect the charger close the cover 7.Driving instruction Please wear helmet and 1 .Power on and check the battery knee pads when practice led light...
  • Page 13 2,.Stand on pedal with one leg, hit the ground with the other leg 3,.Step on the other leg when the scooter is moving, then press the accelerate button (only accelerate when the scooter speed is beyond 5km/h) 4.loose the accelerate button when slow down. Energy recovery systems will open itself to slow down.

  • Page 14: Safety Recommendations

    8. Safety Instructions It is not recommended driving on the rain It is recommend to slightly bend knees to better adjust to a rough road.If travelling rough road,stick to low speed (5-10km/h) Entering into any room, elevator, etc. Be careful not be injured by a door frame. Please not add speed when descending a hill...
  • Page 15 While walking with a scooter, When driving it is recommended to do not press a speed knob go around various obstacles on a road Please do not hang backpacks and When driving is forbidden to place other heavy objects on handle bars one footon the running board ground...
  • Page 16 Preventing dangerous driving It is forbidden to leave a scooter on It is forbidden to sharply turn a scooter wheel at high roadway a a residential area with a for motor vehicles or ride in at a large flow of passers-by high speed Never rider a scooter more than or one It is forbidden to drive through puddles,...
  • Page 17 Do not tread the back of the fender Do not touch the disc brake Do not driving leaving your Do not riding electric hands scooter up, down steps or jump over obstacles...
  • Page 18 9.Satety Recommendations 1) Electric scooter - it is only a device for entertainment, not vehicle.But once you driving to public area, the electric scooter brings certian risks for your safety .For the sake of your safety and others safety, you must strictly follow the instructions, outlined in this driving manual .

  • Page 19: Folding & Transportation

    5) To avoid personal injury , do not loan electric scooter to others whom do not know how to drive. Please spend a training before you transfer your scooter to friends, as well as teach he(her)must be wear the proper safety gear . 6) Please do inspect scooter carefully before each use.If you find shattered parts ,battery life has decreased obviously, tires leak air or there are signs of excessive wear, uncharacteristic sounds when turning or other abnormal...

  • Page 20: Daily Maintenance And Storage

    Daily Maintenance and Storage If you find any stains on electric scooter housing, use a soft,damp cloth to wipe the vehicle;You can use toothpaste and a toothbrush to clean the scooter from stains, and then wipe it clean with a damp cloth. If you find scratched on parts , made of plastic, use sandpaper or other grinding materials for their polishing .
  • Page 21 the device,to prevent an occurrence of an accident or fire of the vehicle; 4) Improper disposal of used batteries and accumulators is the cause of severe environmental pollution.Please,dispose of batteries in accordance with local laws.Please do not dispose of batteries together with food waste.Protecting the environment together! 5)After each use of the device,charge the battery to prolong its service life.
  • Page 22 people,as there is a risk of electric shock or serious injury as result of a short circuit. Adjusting a brake disc If a brake is very tight:using M5 hex wrench and scroll counterclockwise screws of brake disc tensioner pulley,slightly shorten a length of a tail brake cable,then tighten a tensioner pulley.If you think that brake is very free,loosen a tension pulley,pull a brake cable to slightly increase a length of its tail.Tighten a tension pulley.

  • Page 23: Model Specifications

    Model Specifications Operating parameters Name Ew6parameters Dimensions Length x Width x 106 x 42 x 48 Height Folded:Length x 106 x 42 x48 Width x Height(cm) Weight Gross weight 12.5kg Conditions Max load Agee 16-50 Height(cm) 120-200 Main Parameters Max speed(km/h) Possibility in average 25-35 Condition [2](km)
  • Page 24 Rated power(Wh) 280-378 Smart battery Stress,insufficient voltage,short management system circuit,auto sleep/wake up,overheating protection,control of battery Motor Parameters Rated power(W) Max power(w) Adaptor power Rated power(W) Parameters Input Rated 100-240B voltage(VAC) Output Rated voltage(VDC) Rated current(A) Certificate CE,RoHs Charging time(h) Est . 3.5 Est.

  • Page 25: Presence Of Toxic And Harmful Substances

    12.Presence of toxic and harmful substances Toxic and harmful substances elements Name Cr6+ PBDE Power Adaptor Battery Connecti ng pipe Charging Port Indicators X Circuit Board Motor Housing Date provided in accordance with provisions of SJ/T 11364. O:toxic and harmful substances in all components of the device are contained in an amount below the limit value,according to standard GB/T 26572-2011.

  • Page 26: Warranty

    13. Warranty Warranty service is carried out in accordance with the law on 《consumer rights》 and the 《Law on the quality of products.》The warranty service includes: Recommendation: use the packaging for safe transport of the device.We recommend keeping the original packaging within 15 days after receipt of goods.
  • Page 27 Caution: Hex wrench,connecting pipe and other consumable component parts have no warranty. III. Non - warranty regulations 1. Authorized maintenance, misuse, collision, negligence, abuse, intake, accident. Improper use of non-product accessories, or tear up the modified label, anti- counterfeit mark. 2.
