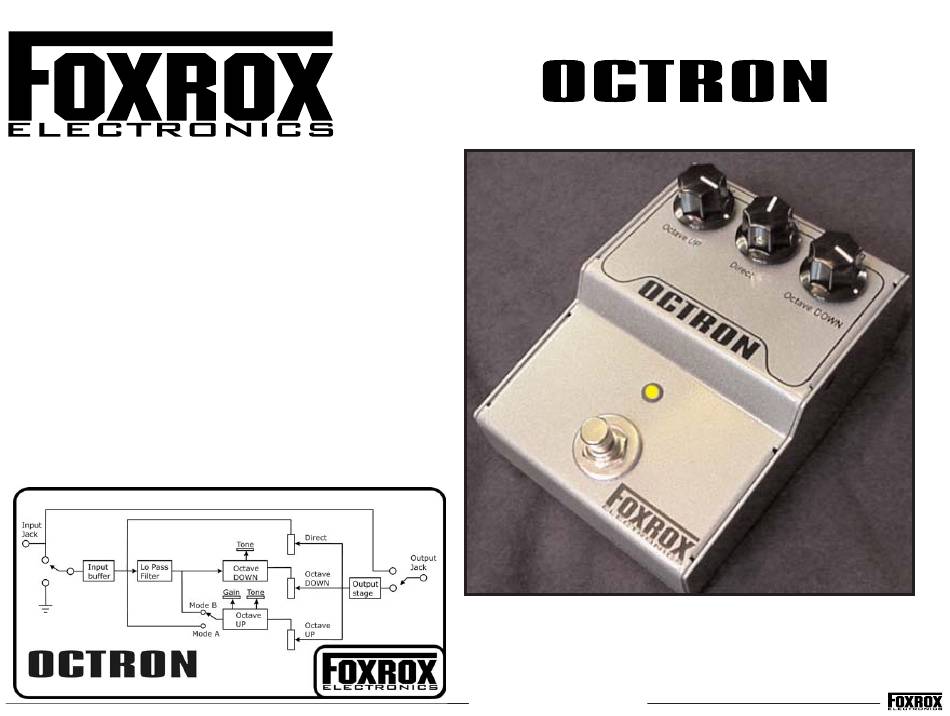

Foxrox Electronics Octron Quick Manual

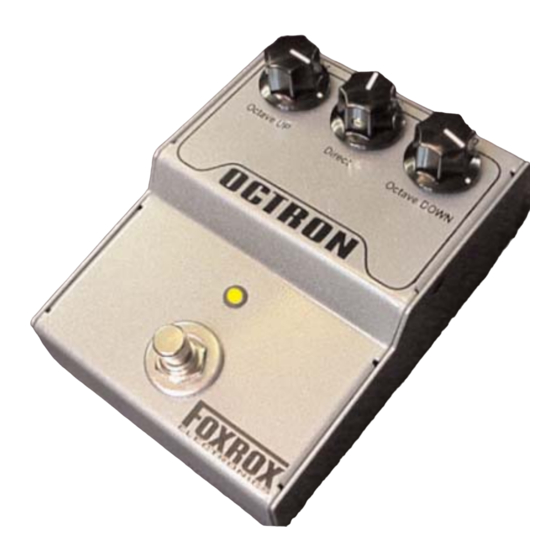

Octron is an analog octave effect that produces a note one octave
above, and a note one octave below the note you play. The output
is made up of a variable mix of Octave UP, Clean, and Octave
DOWN. Three internal trimmers and an internal switch allow you
to fine-tune the sound of Octave UP and Octave DOWN signals.
Analog octave processing relies on articulate playing to produce
the best results. The Octave UP section can produce overtones
from single note lines or chords, while the Octave DOWN section is
capable of processing just one note at a time. Multiple notes and
chords can result in "octave skipping". With some practice it's easy
to get consistent upper and lower octave sounds anywhere on the
neck.

Technical Information:

Dimensions: Width = 3.85" Depth = 5.15" Height = 2.85"
Weight: 1.4 lbs. (with 9V battery)
Voltage: 9 Volts DC (via 9V battery or external power)
Current draw: 12mA
Power connection: 2.1mm, Center = NEG (FX standard)
Signal switching: True bypass with LED.
